Engine Controls - Pin Voltage Charts: 2.6L

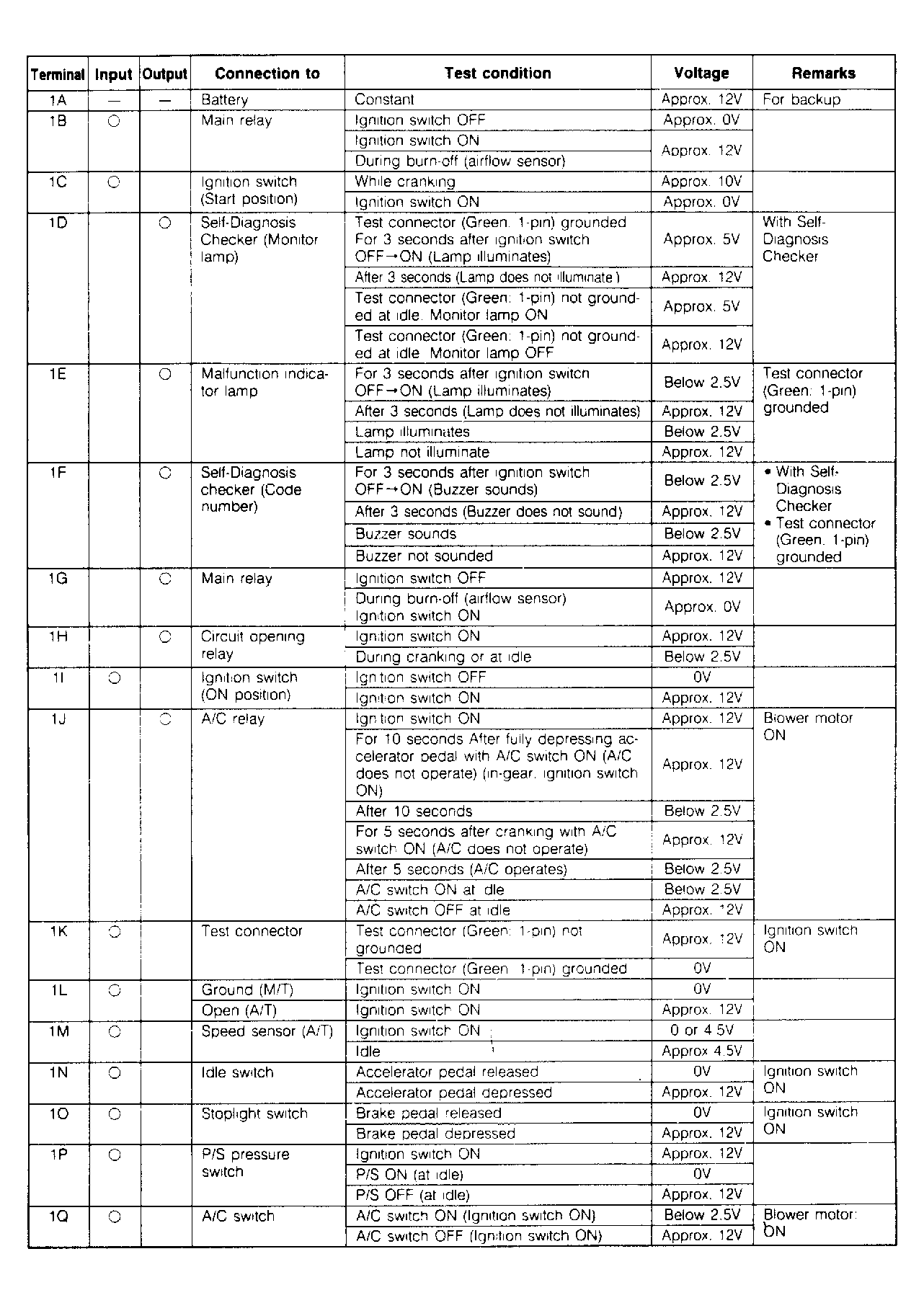

Fig 1: ECU Pin Voltage Chart (1 of 3)

Courtesy of MAZDA MOTORS CORP.

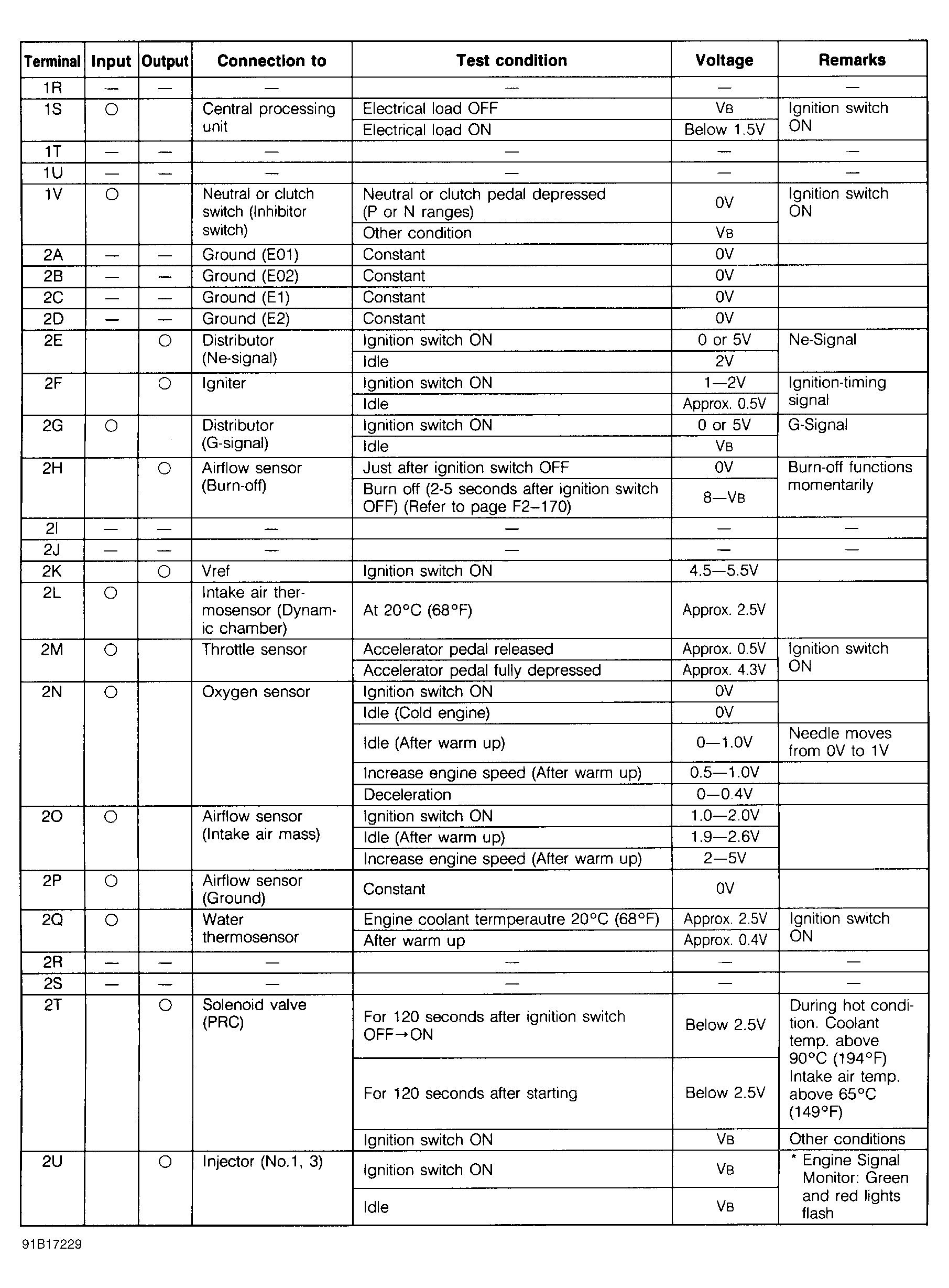

Fig 2: ECU Pin Voltage Chart (2 of 3)

Courtesy of MAZDA MOTORS CORP.

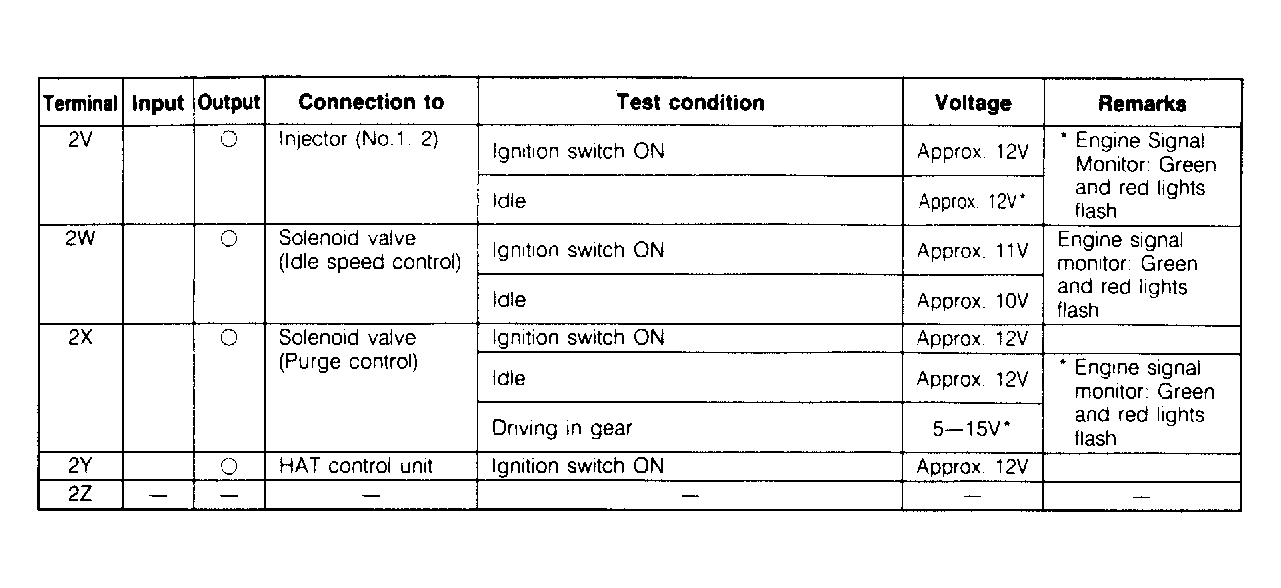

Fig 3: ECU Pin Voltage Chart & Terminal Id (3 of 3)

Courtesy of MAZDA MOTORS CORP.
