Trouble Code Charts: Notes

NOTE: See PIN VOLTAGE CHART S article to identify ECU connector terminals.

NOTE: Trouble Codes 6, 12, 55, 60, 61, 62 and 63 are automatic transmission related problems.

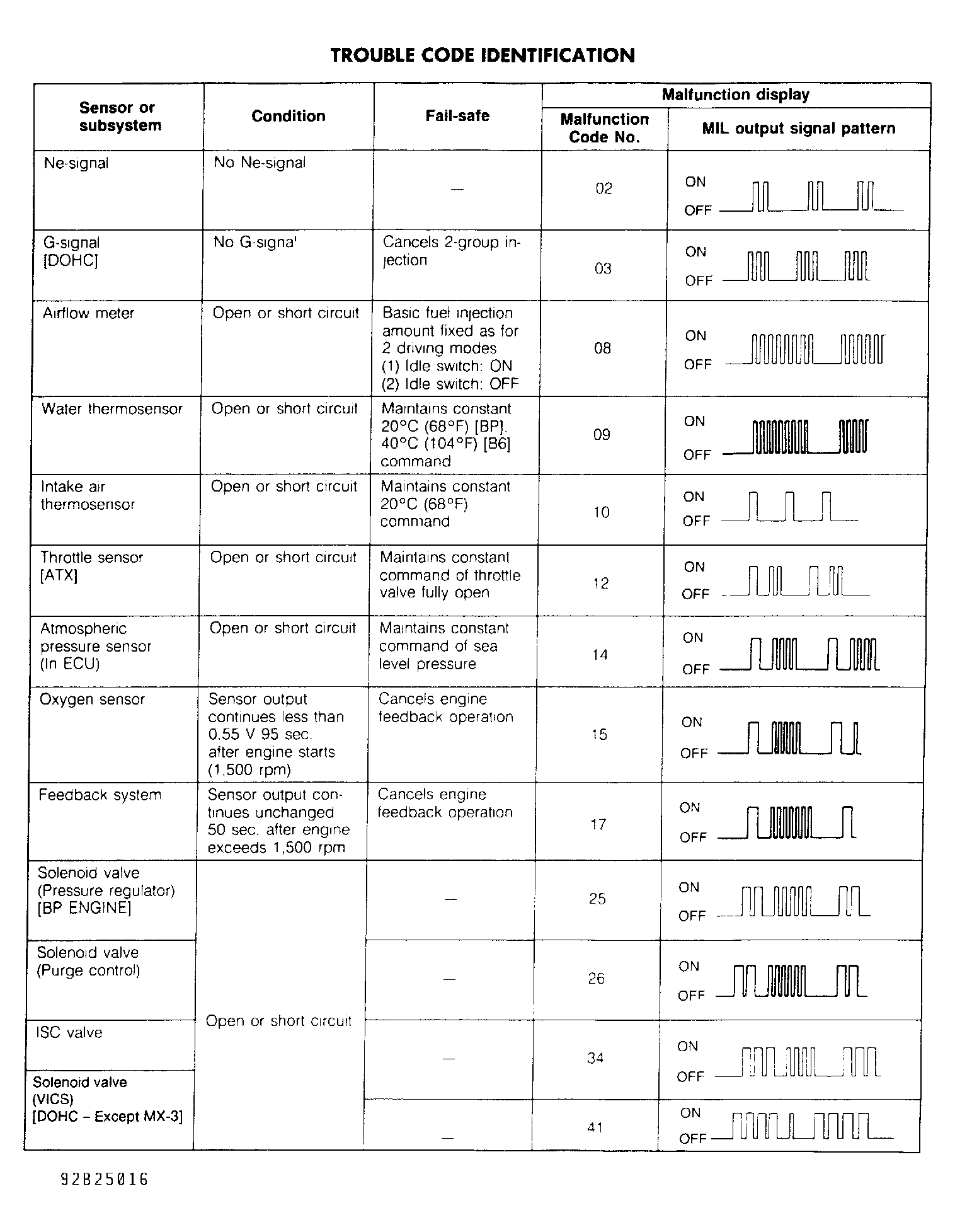

Fig 1: Trouble Code Identification

Courtesy of MAZDA MOTORS CORP.
