Home › Mazda › 1992 › 323 Base, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes - 4-CYL › Trouble Codes › Code 12: Throttle Sensor

Code 12: Throttle Sensor

Fig 1: Trouble Code No. 12 Throttle Sensor
G90D21512Courtesy of MAZDA MOTORS CORP.

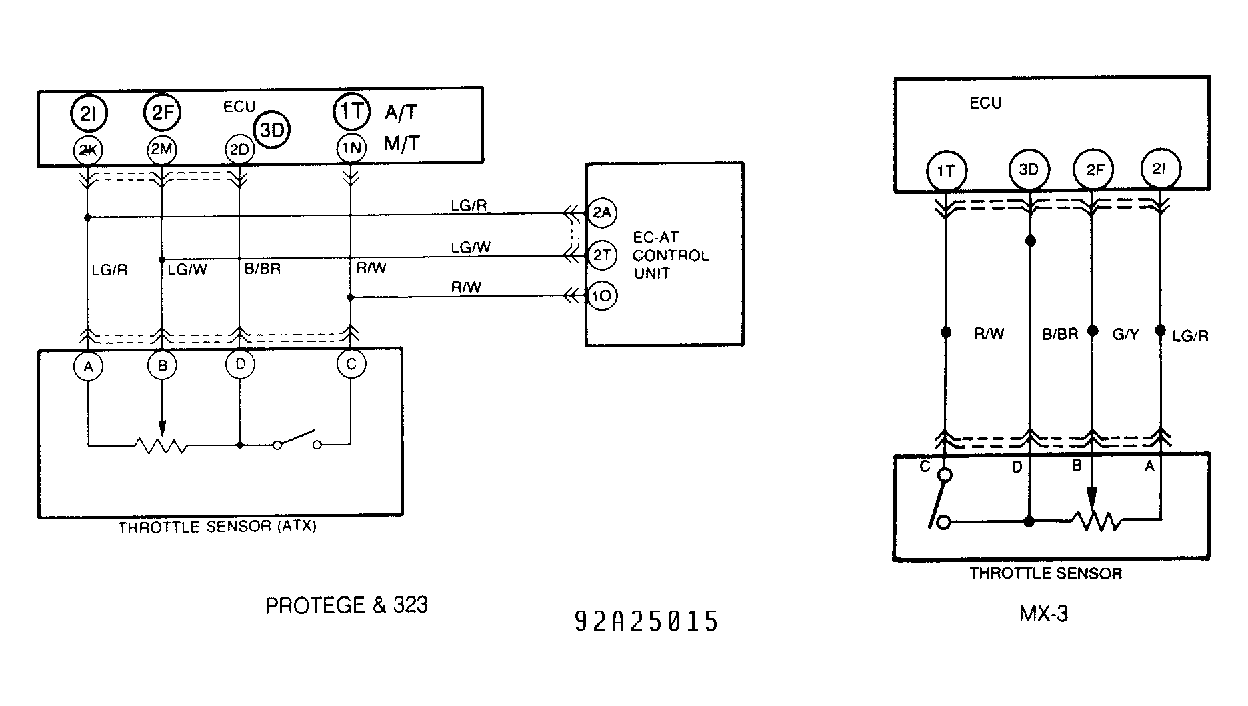

Fig 2: Circuit Diagram, Throttle Sensor
G92A25015Courtesy of MAZDA MOTORS CORP.
