Home › Mazda › 1992 › 323 Base, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes - 4-CYL › Trouble Codes › Code 15: Oxygen Sensor

Code 15: Oxygen Sensor

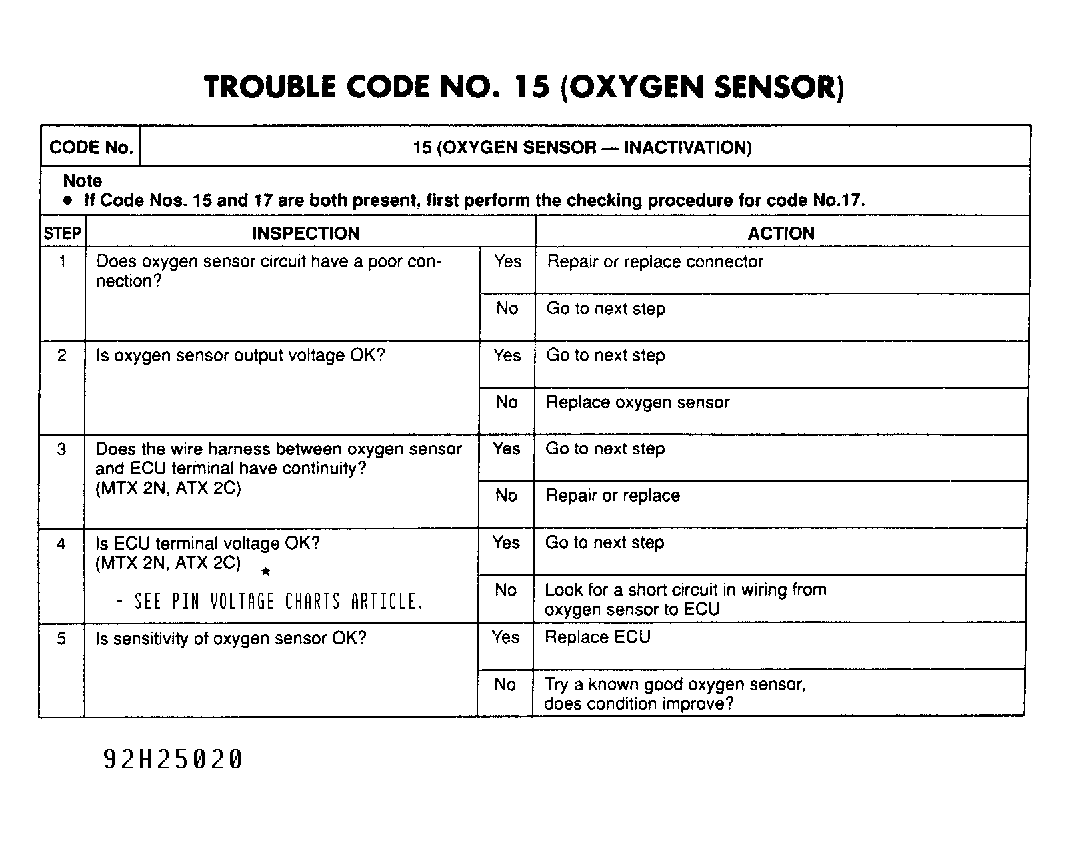

Fig 1: Trouble Code No. 15 Oxygen Sensor
G92H25020Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Feedback System
G92J25022Courtesy of MAZDA MOTORS CORP.
