Code 3: G Signal-Distributor

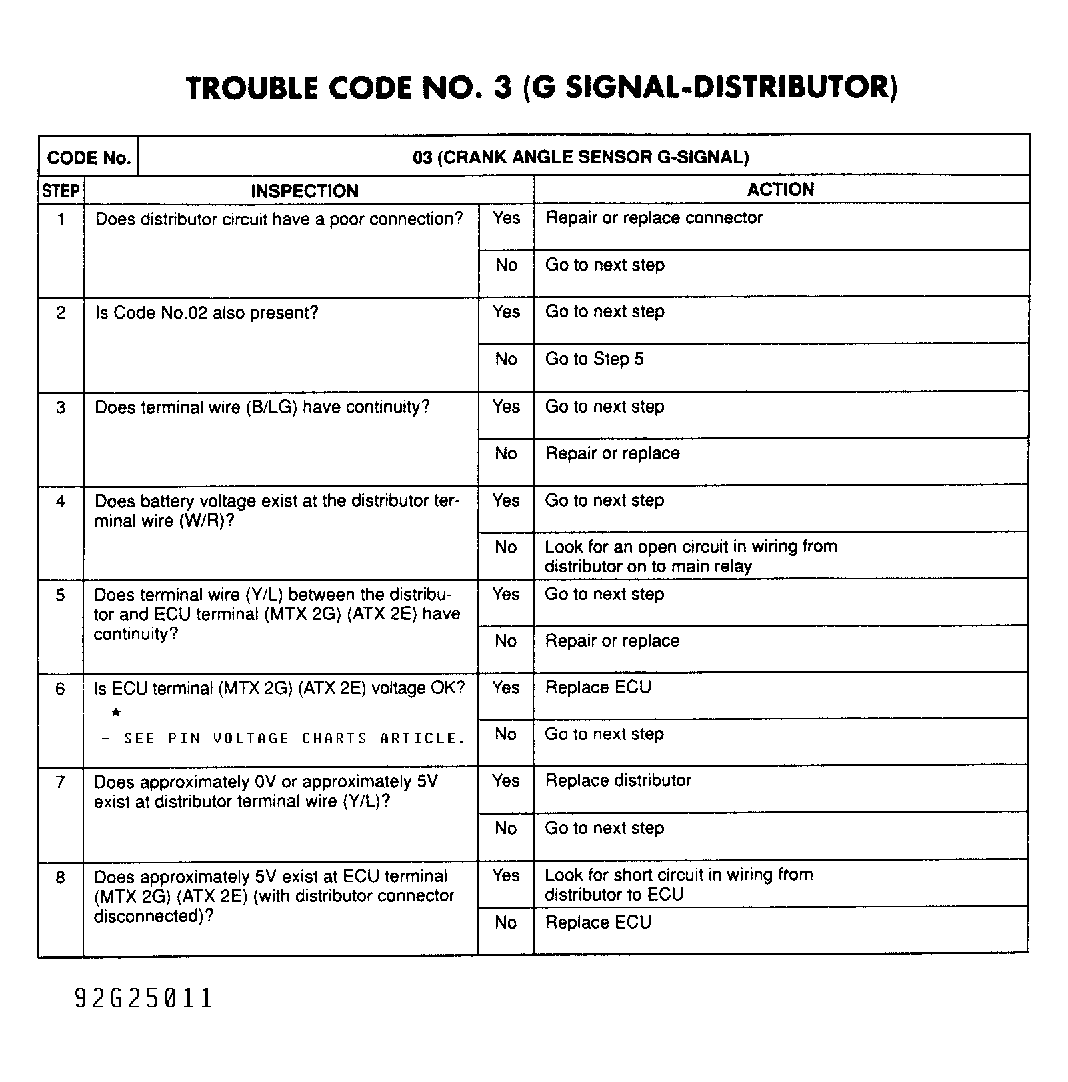

Fig 1: Trouble Code No. 3, G Signal-distributor
G92G25011Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, G Signal-distributor
G92D25018Courtesy of MAZDA MOTORS CORP.
