Engine Controls - Tests W/Codes - 4-CYL
›
Trouble Codes
›
Code 34: Idle Speed Control
Code 34: Idle Speed Control

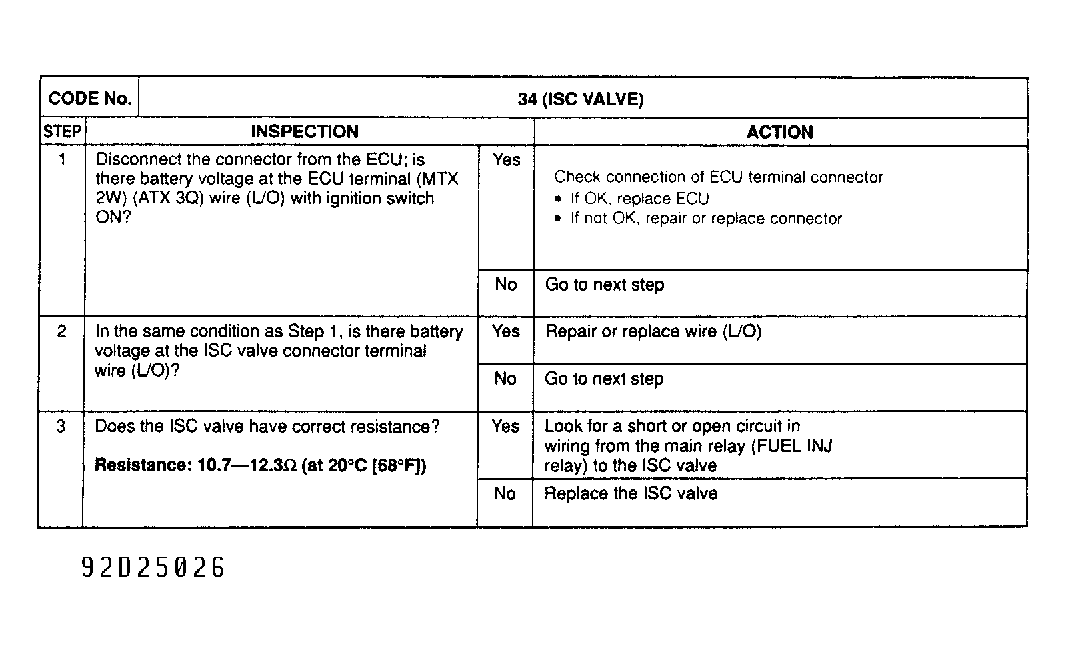

Fig 1: Trouble Code No. 34 Idle Speed Control
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
