Connector Identification

Fig 1: Identifying Power Window System Connectors (MX-6)

Courtesy of MAZDA MOTORS CORP.

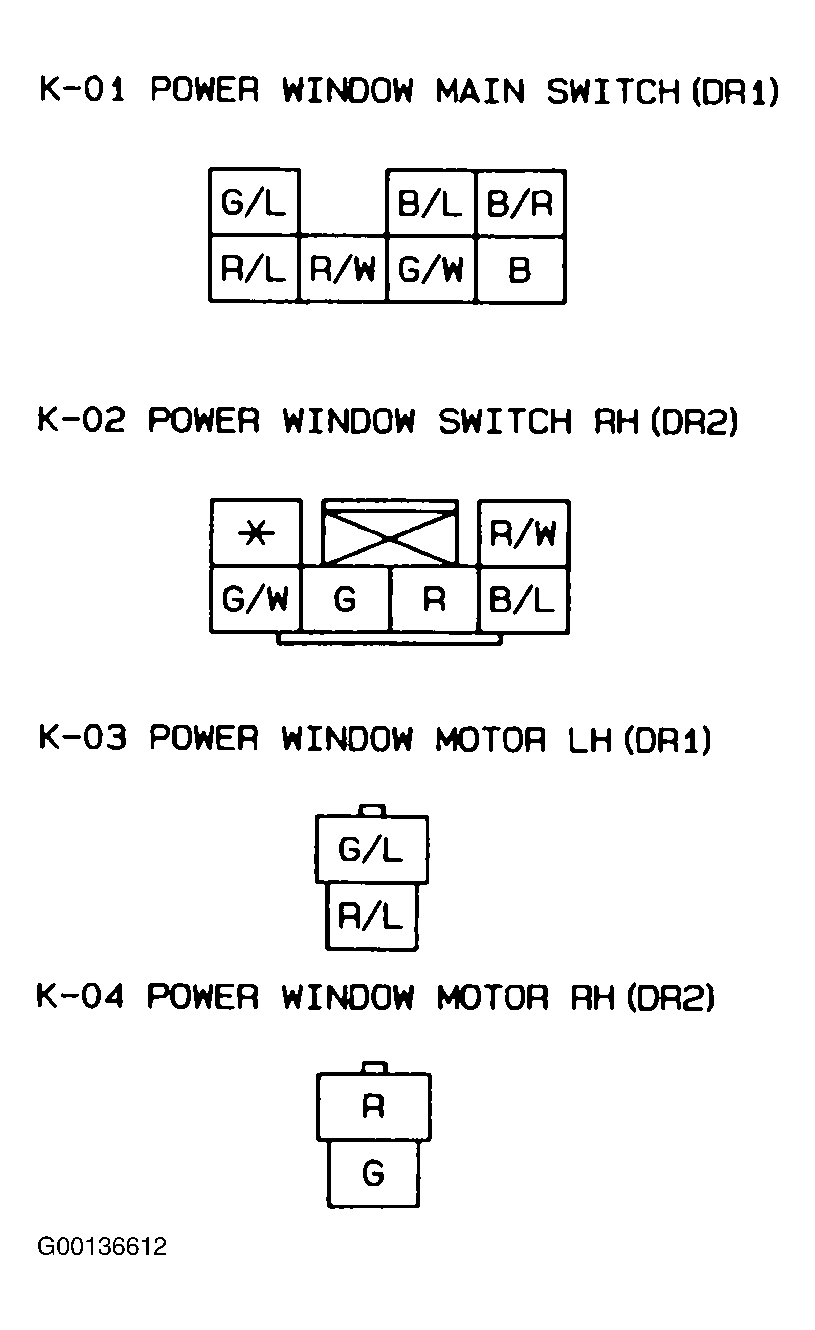

Fig 2: Identifying Power Window System Connectors (626)

Courtesy of MAZDA MOTORS CORP.
