Lock Link Switch
Lock Link Switch

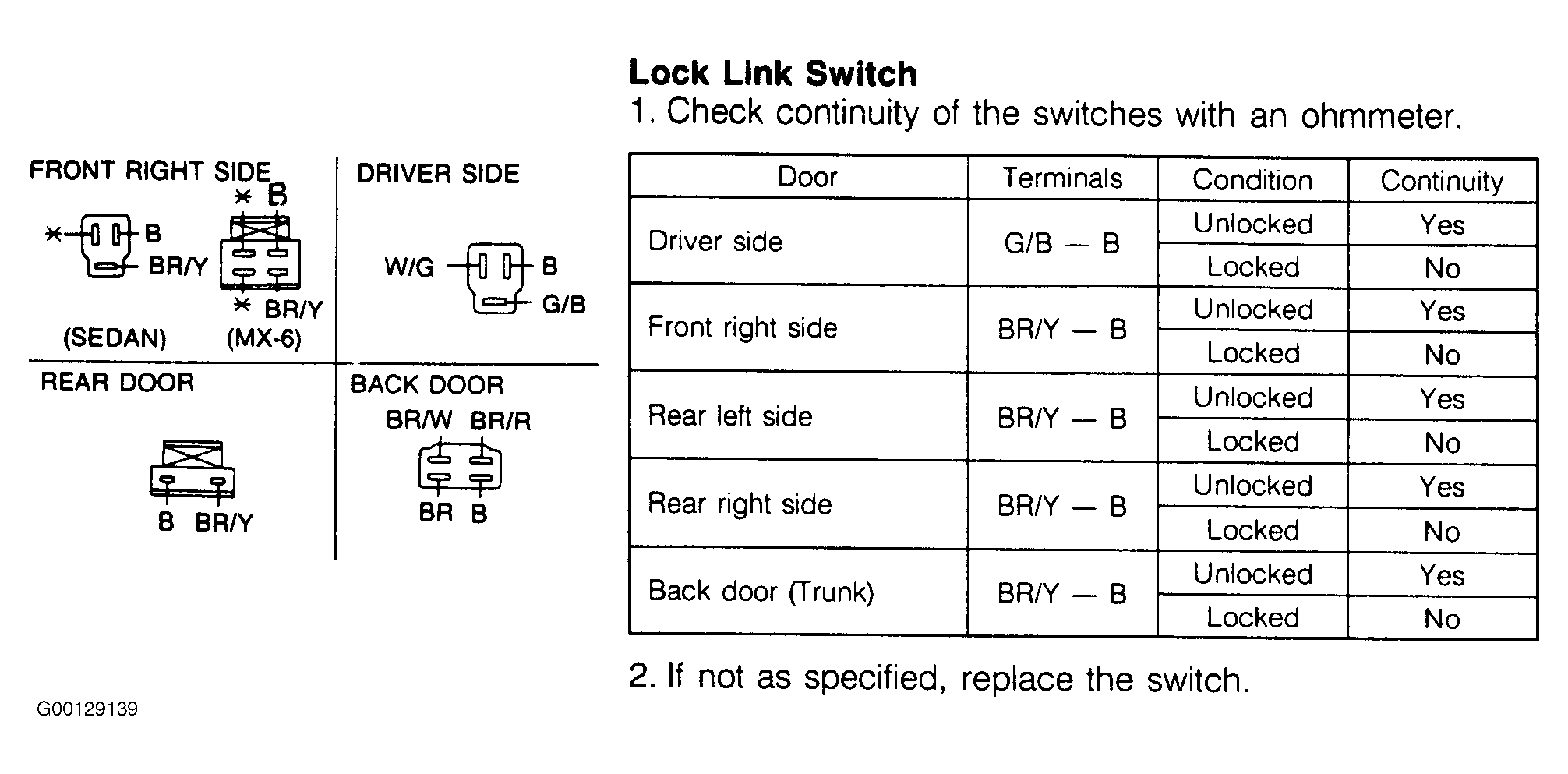

Fig 1: Testing Lock Link Switch
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
