Wiring Diagrams

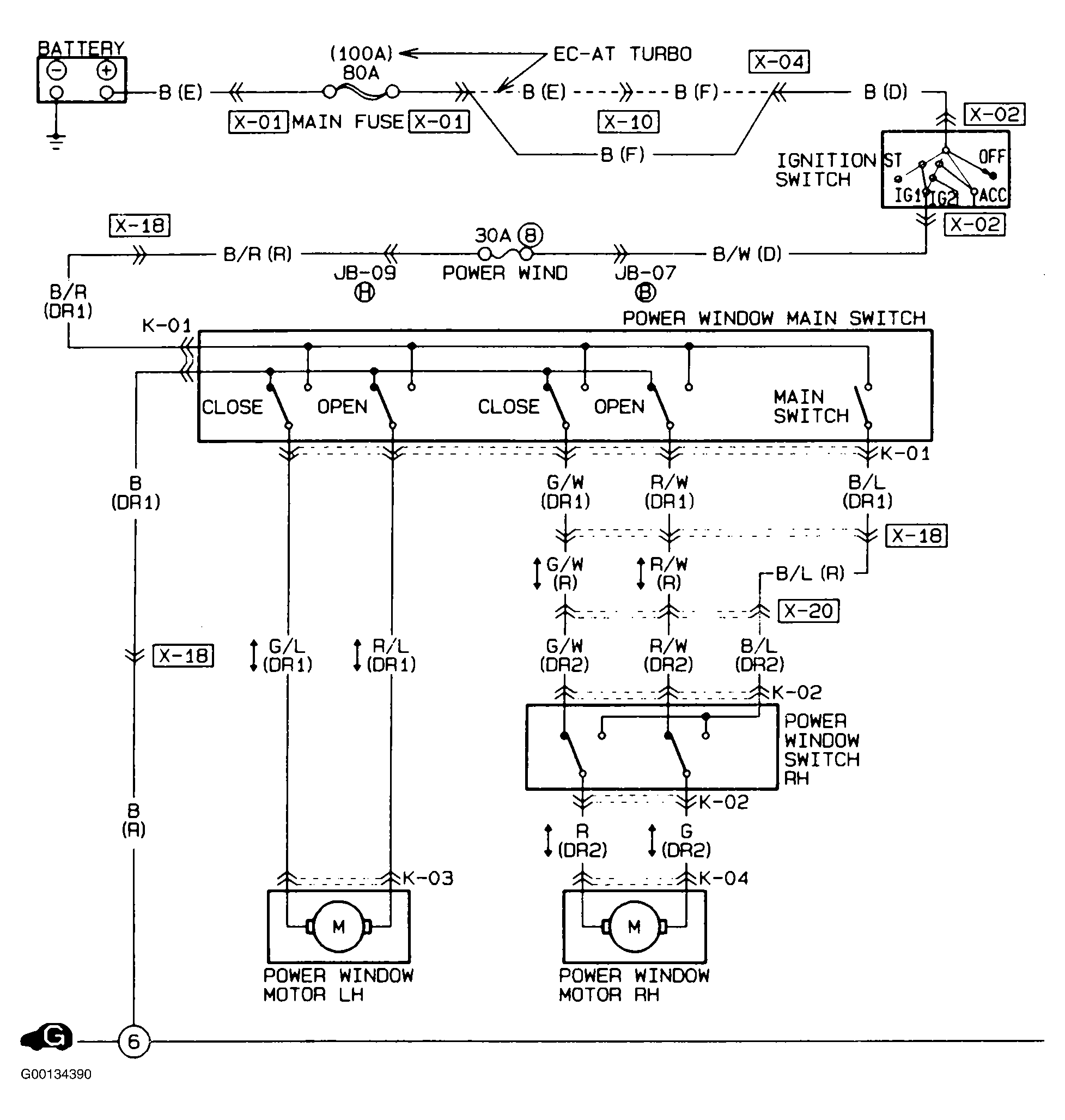

Fig 1: Power Window System Wiring Diagram (MX-6 Door)
G00134390Courtesy of MAZDA MOTORS CORP.

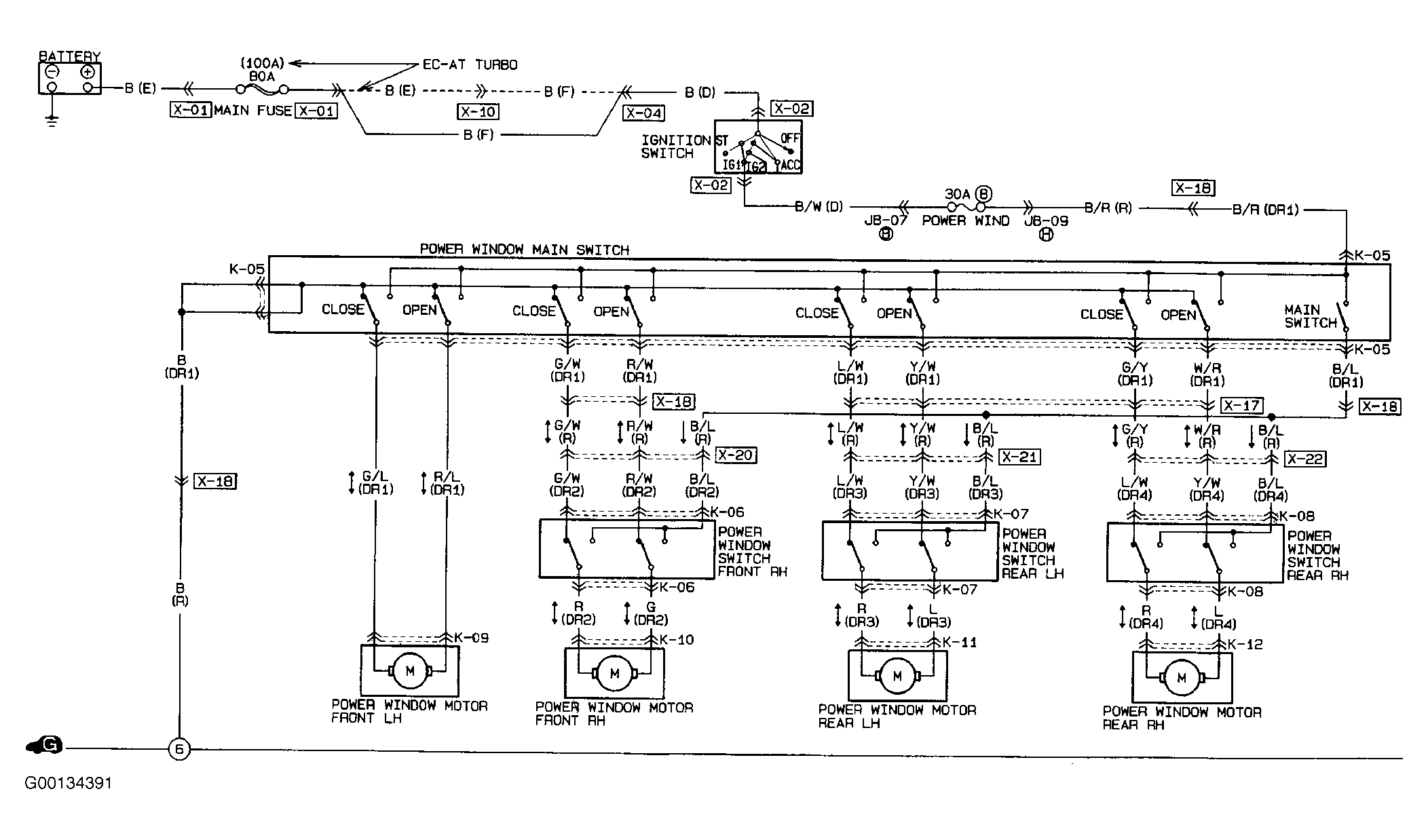

Fig 2: Power Window System Wiring Diagram (626 Door)
G00134391Courtesy of MAZDA MOTORS CORP.
