Engine Controls - Tests W/Codes - 2.2L
›
Trouble Codes
›
Code 9: Coolant THERMOSENSOR
Code 9: Coolant THERMOSENSOR

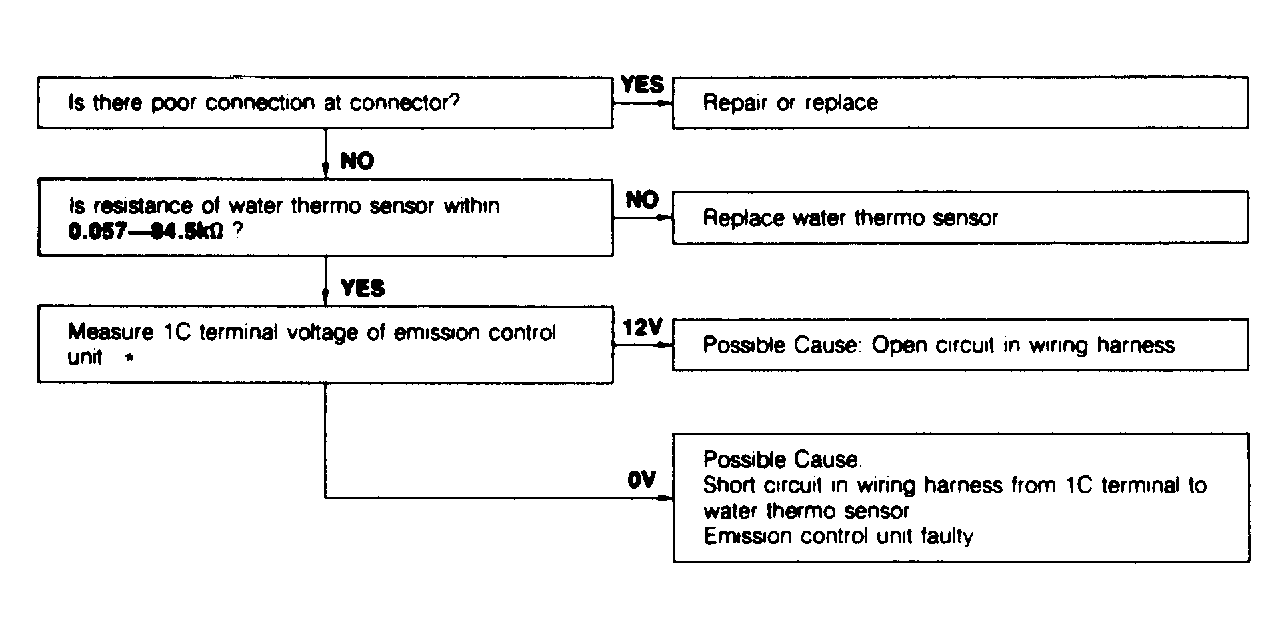

Fig 1: Trouble Code No. 9 Coolant Thermosensor
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
