Engine Controls - Tests W/Codes - 2.6L
›
Code Charts
›
Code 12: (Throttle Sensor)
Code 12: (Throttle Sensor)

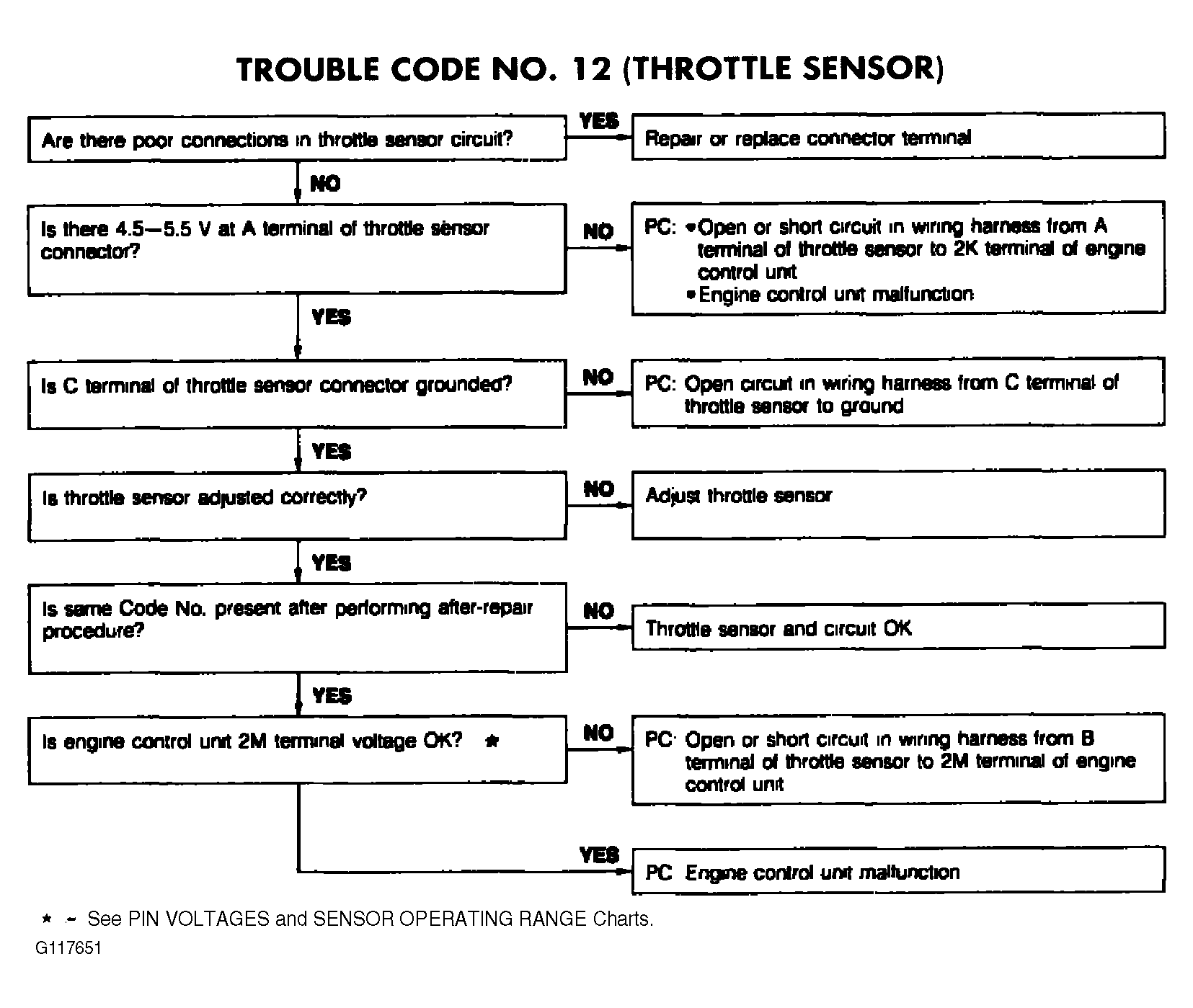

Fig 1: Trouble Code No. 12 (Throttle Sensor)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
