Code 1: Ignition Pulse
Code 1: Ignition Pulse

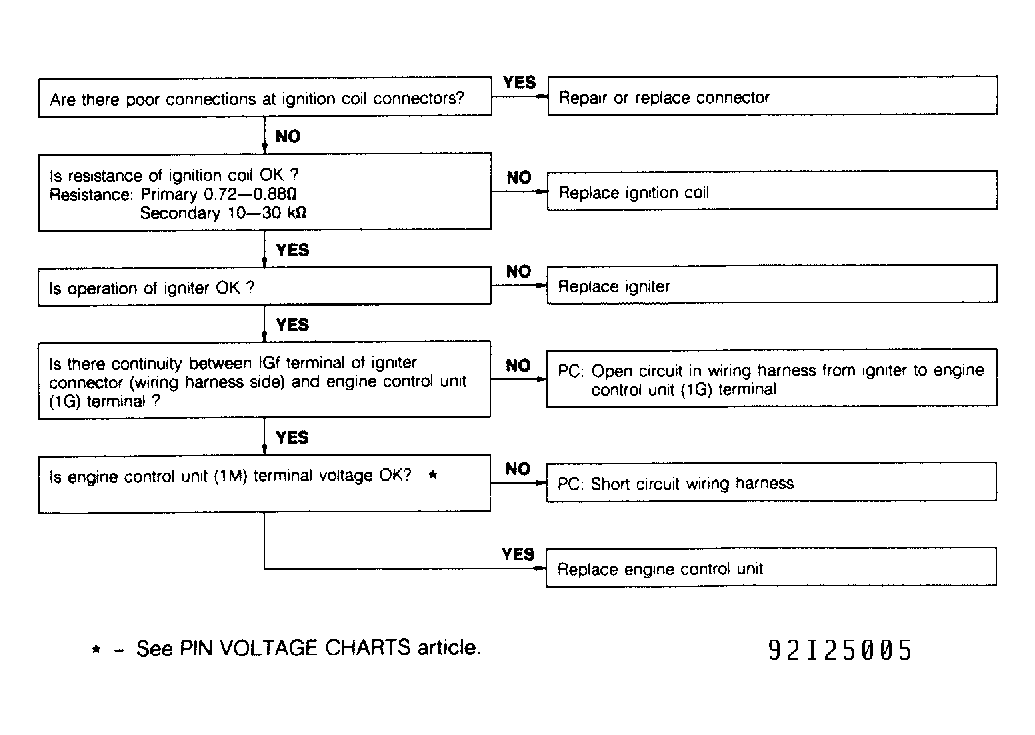

Fig 1: Trouble Code No. 1, Ignition Pulse
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
