Code 67: Electrical Cooling Fan Relay

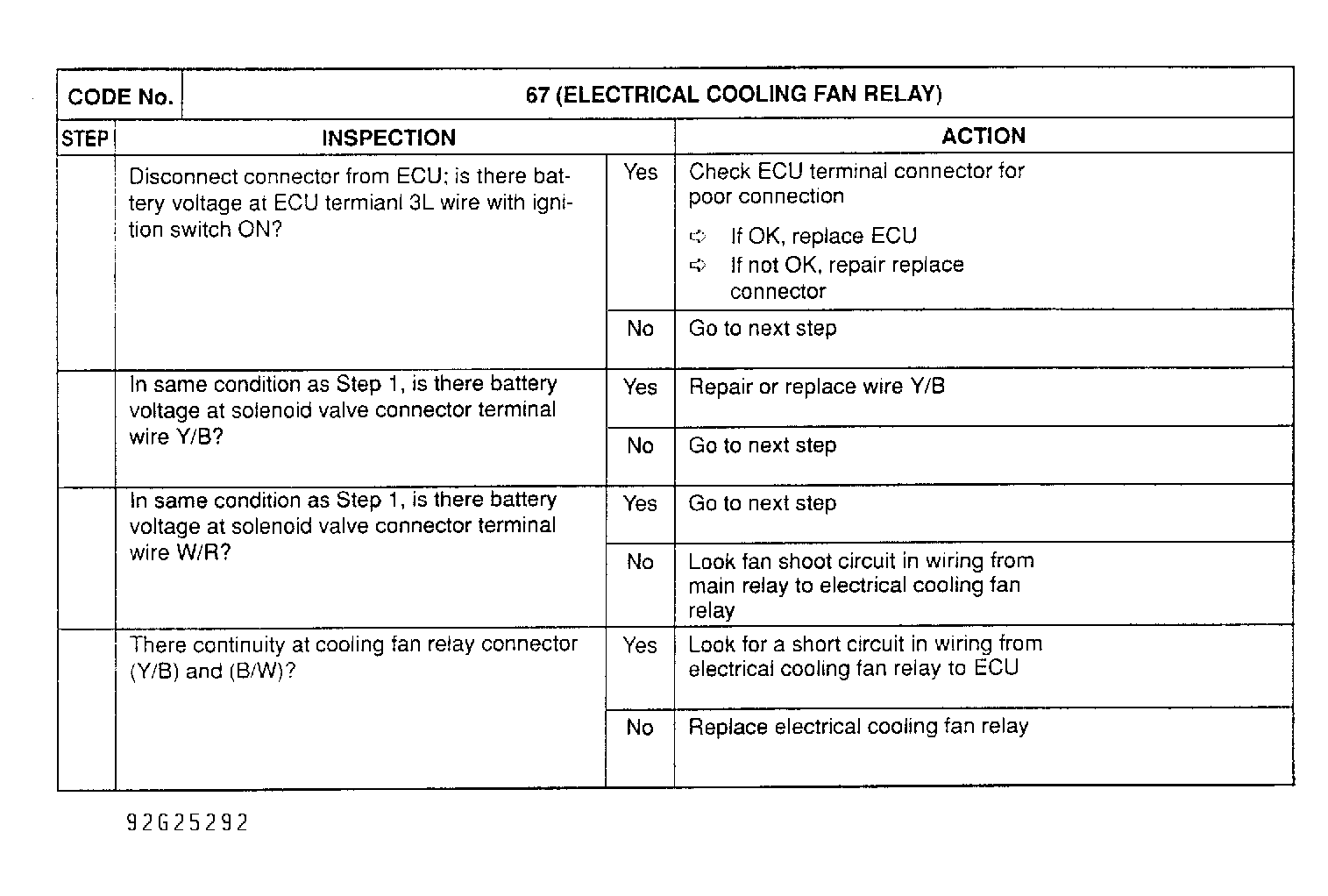

Fig 1: Trouble Code No. 67 Electrical Cooling Fan Relay
G92G25292Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Electric Cooling Fan RRElay
G92H25293Courtesy of MAZDA MOTORS CORP.
