Home › Mazda › 1992 › MX-3 GS, Standard › Repair and Diagnosis (Single Page) › Engine Performance › System › Engine Controls - Tests W/Codes - 6-CYL › Trouble Codes › Code 12: Throttle Sensor

Code 12: Throttle Sensor

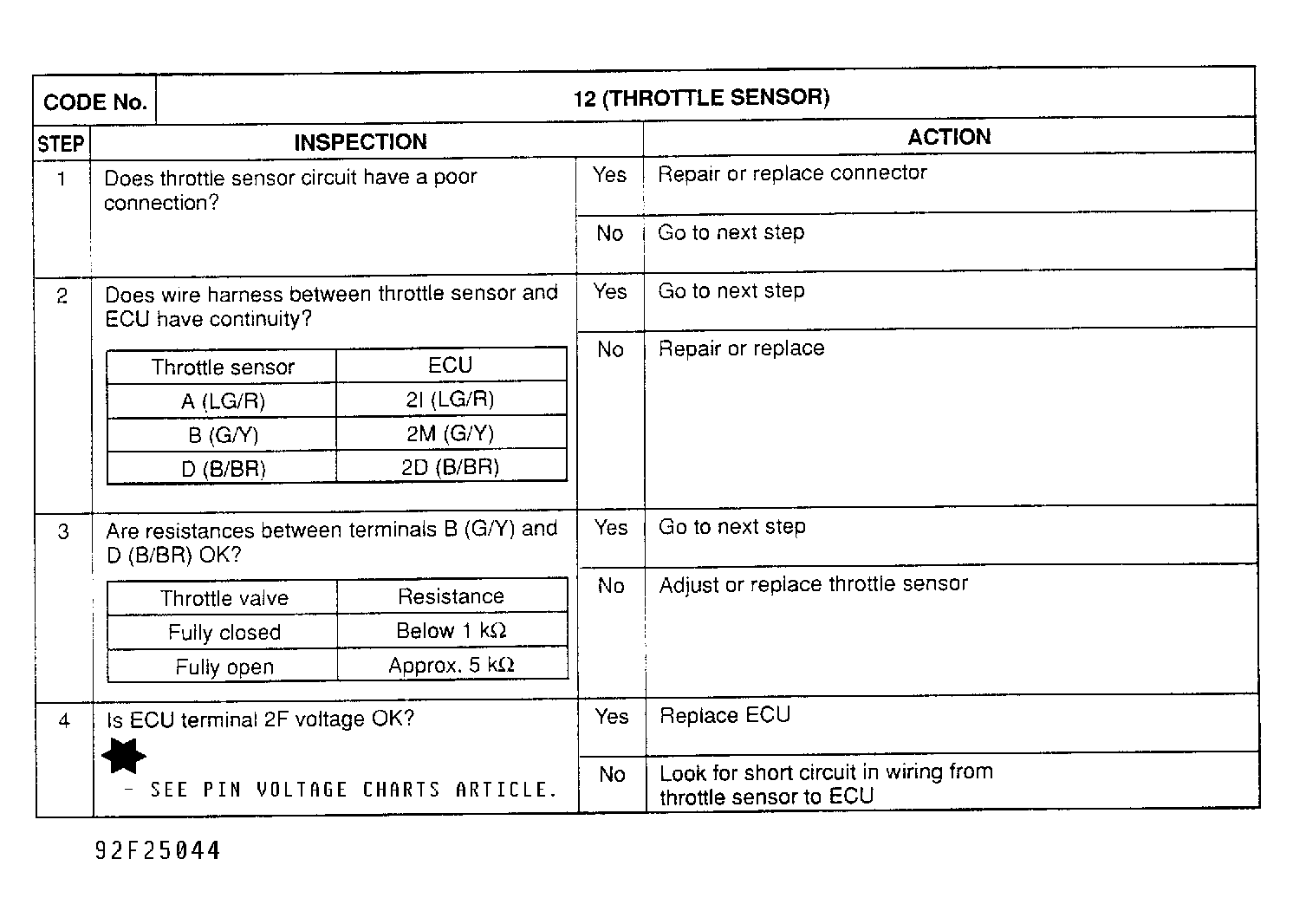

Fig 1: Trouble Code No. 12 Throttle Sensor
G92F25044Courtesy of MAZDA MOTORS CORP.

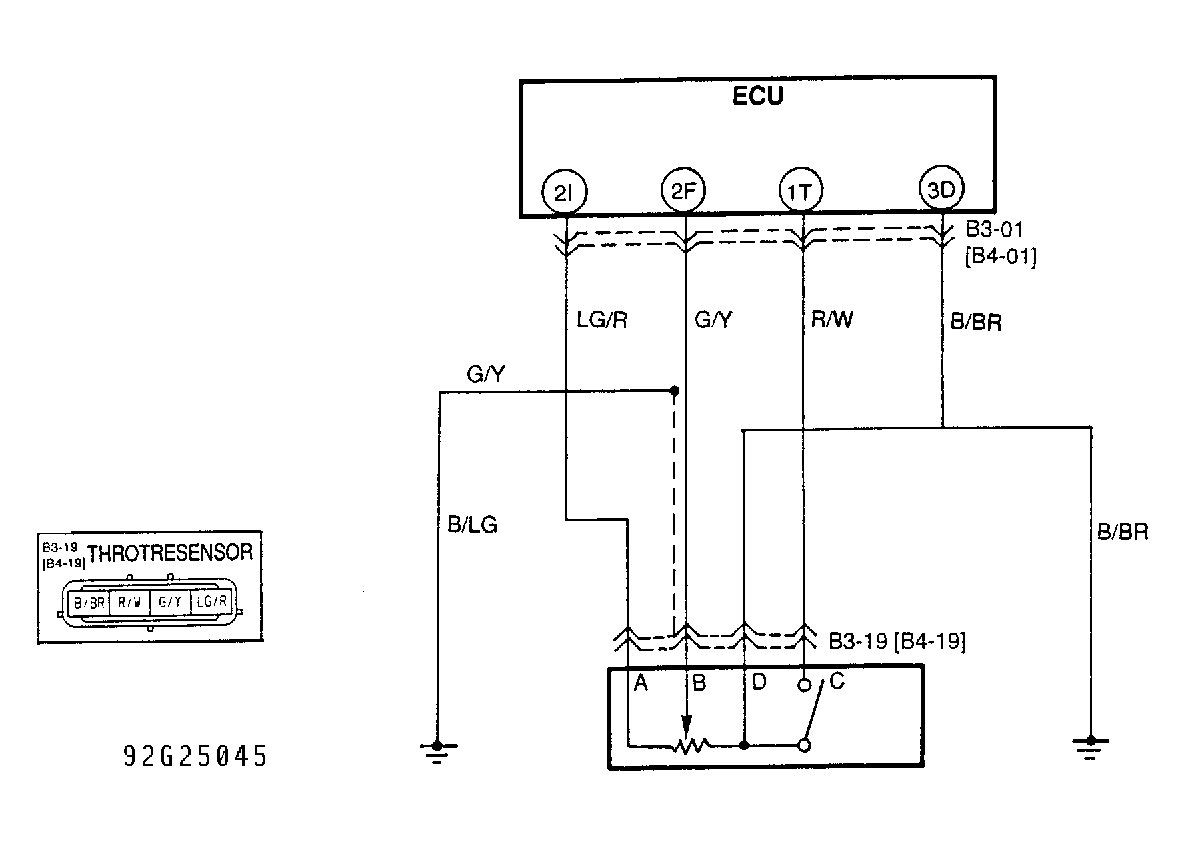

Fig 2: Circuit Diagram, Throttle Sensor
G92G25045Courtesy of MAZDA MOTORS CORP.
