Code 5: Knock Sensor

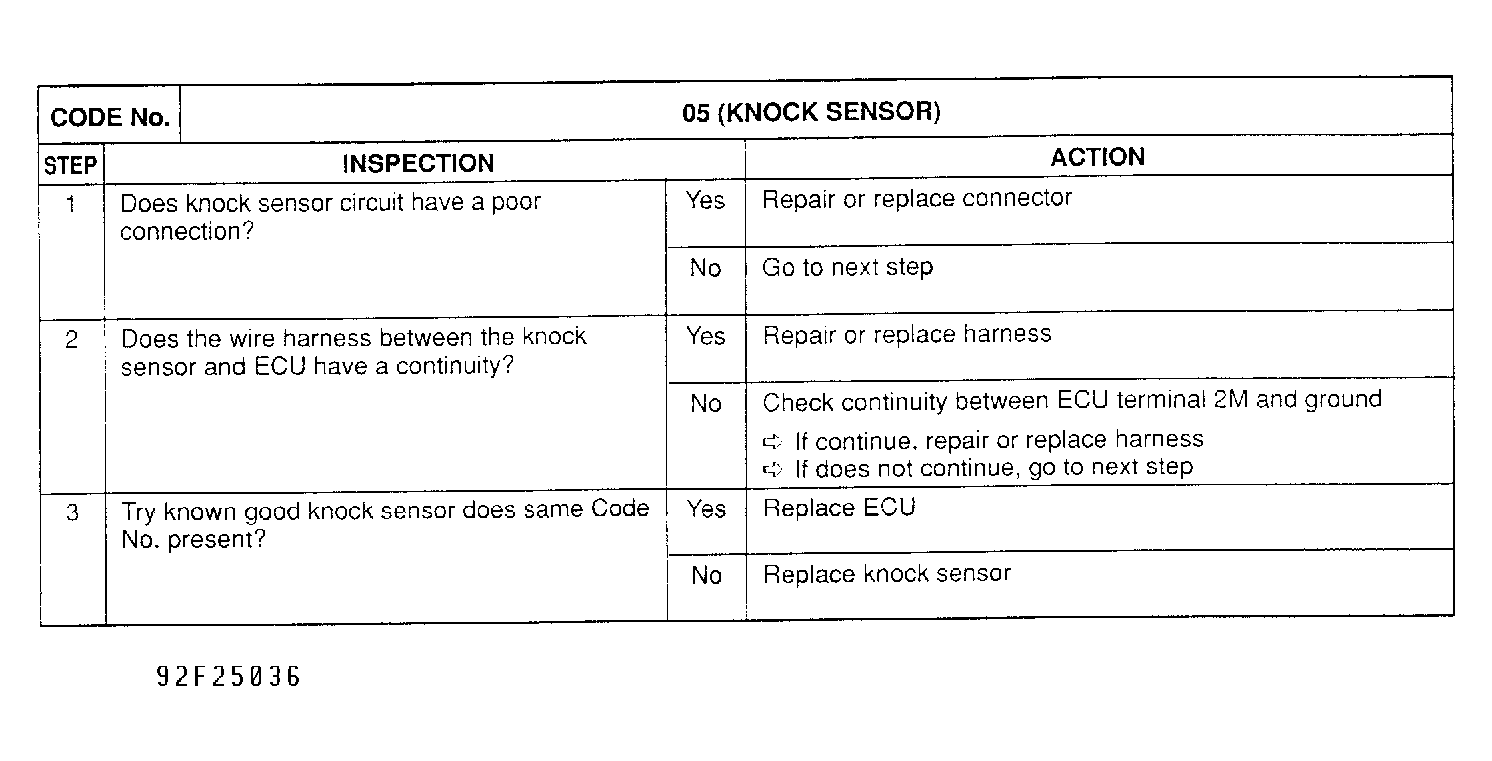

Fig 1: Trouble Code No. 5 Knock Sensor
G92F25036Courtesy of MAZDA MOTORS CORP.
Fig 2: Circuit Diagram, Knock Sensor
G92G25037Courtesy of MAZDA MOTORS CORP.
