Code 55: (Vehicle Speed Pulse Generator - ATX)

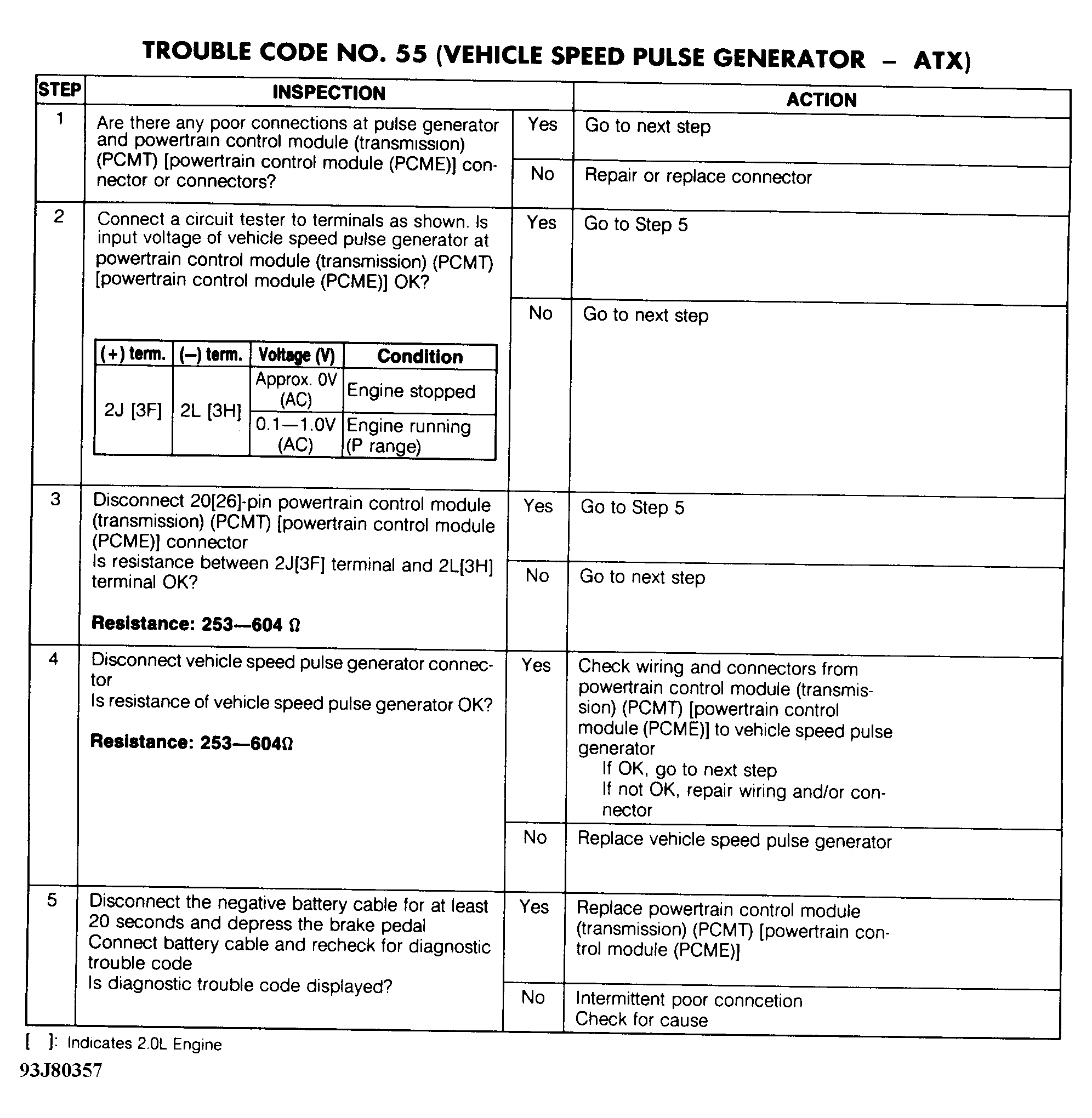

Fig 1: Trouble Code No. 55 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

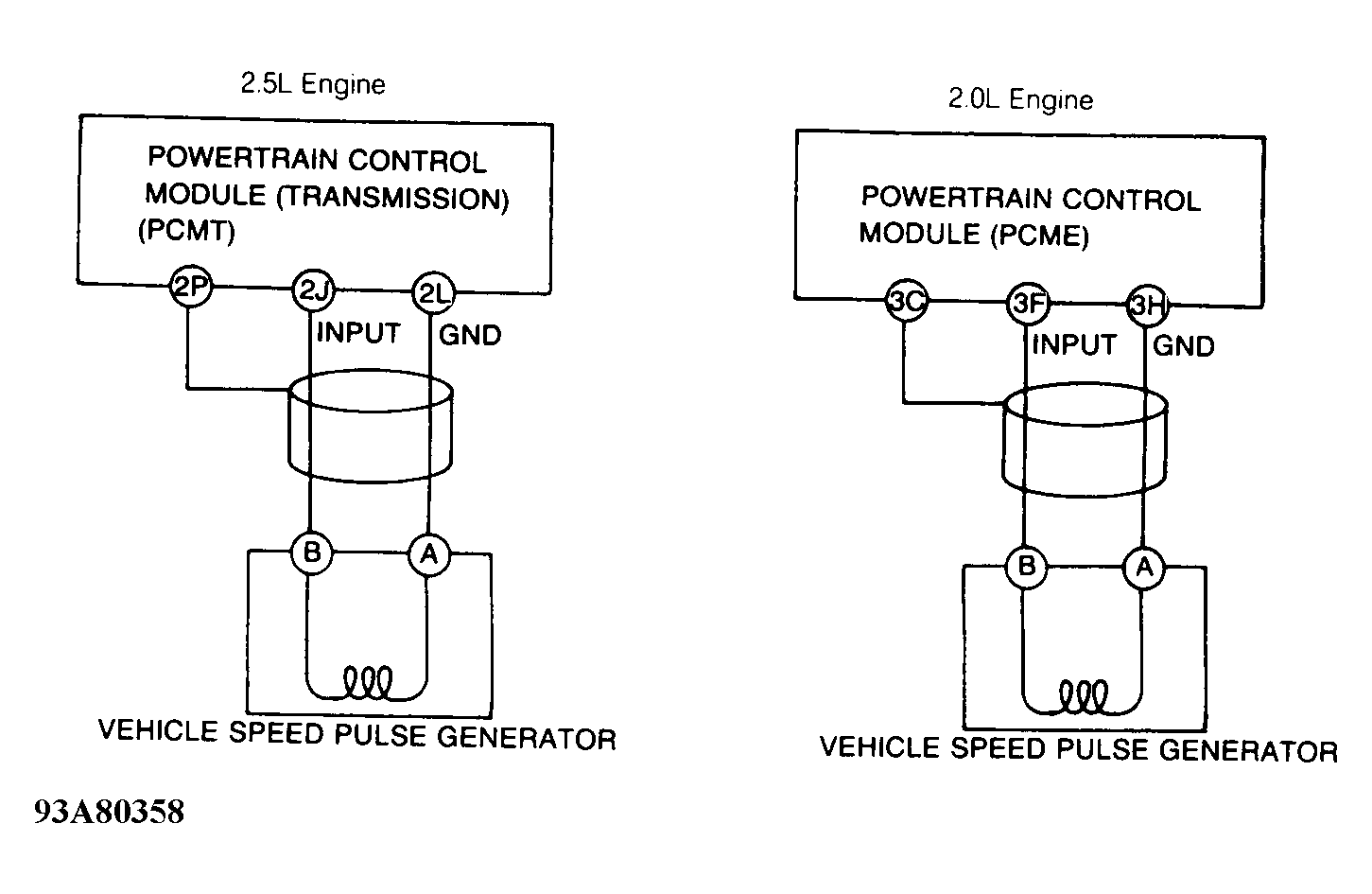

Fig 2: Trouble Code No. 55 - Schematic

Courtesy of MAZDA MOTORS CORP.
