Code 69: (Engine Coolant Temperature Sensor, Fan)

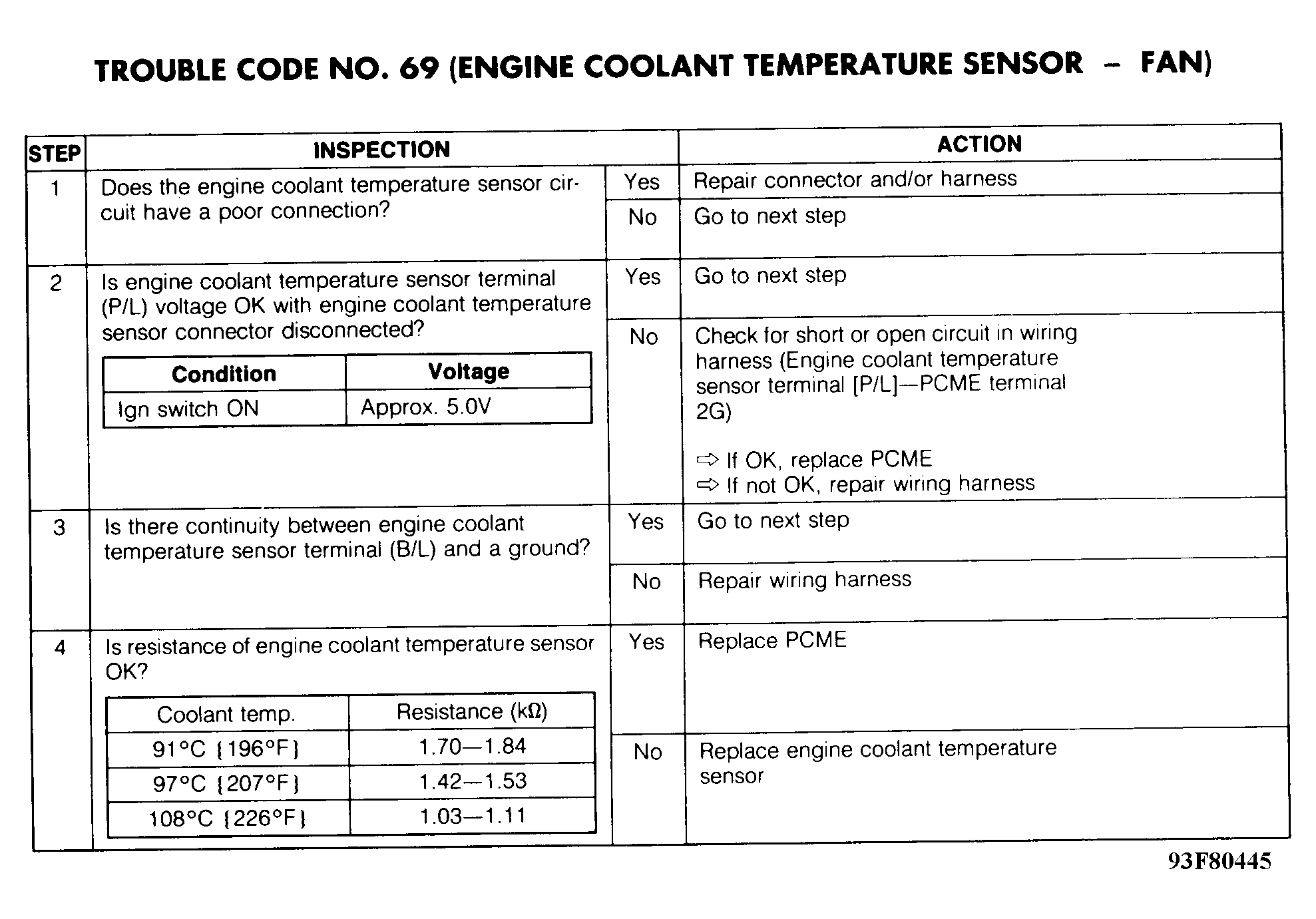

Fig 1: Trouble Code No. 69 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 69 - Schematic

Courtesy of MAZDA MOTORS CORP.
