Code 15 Or 23: (Heated Oxygen Sensor)

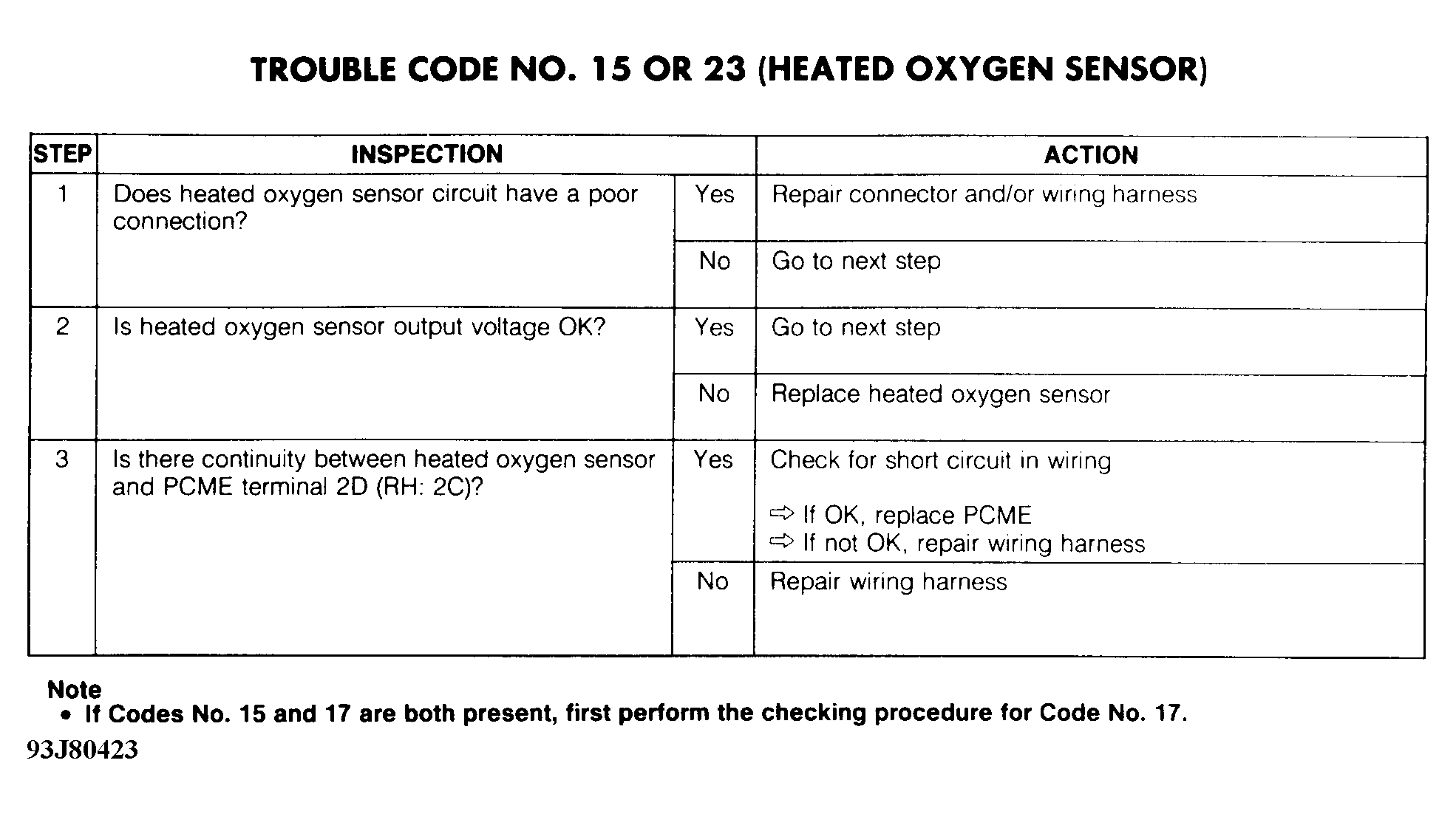

Fig 1: Trouble Code No. 15 Or 23 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 15 Or 23 - Schematic

Courtesy of MAZDA MOTORS CORP.
