Code 25: (Solenoid Valve, Pressure Regulator Control)

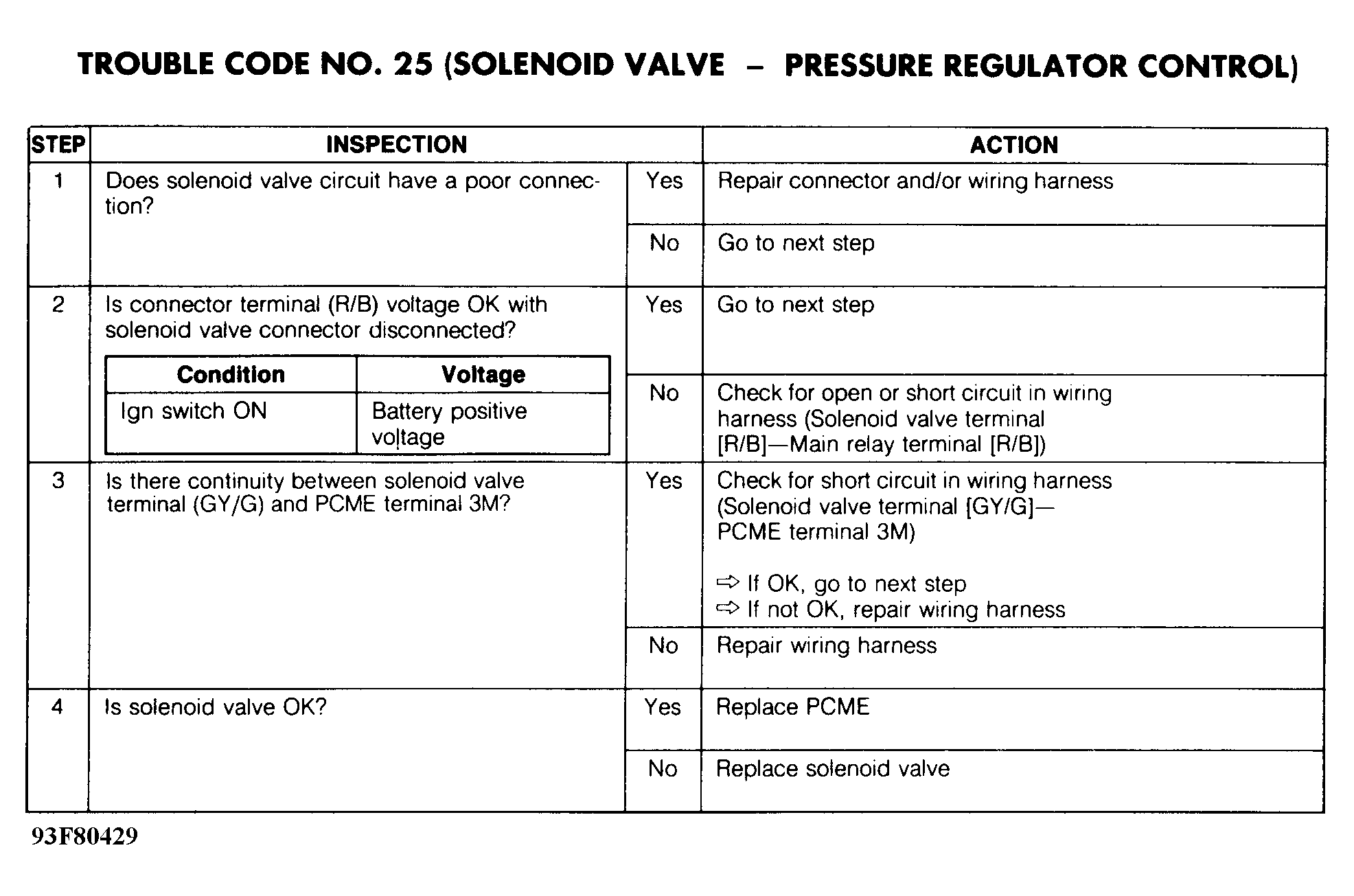

Fig 1: Trouble Code No. 25 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

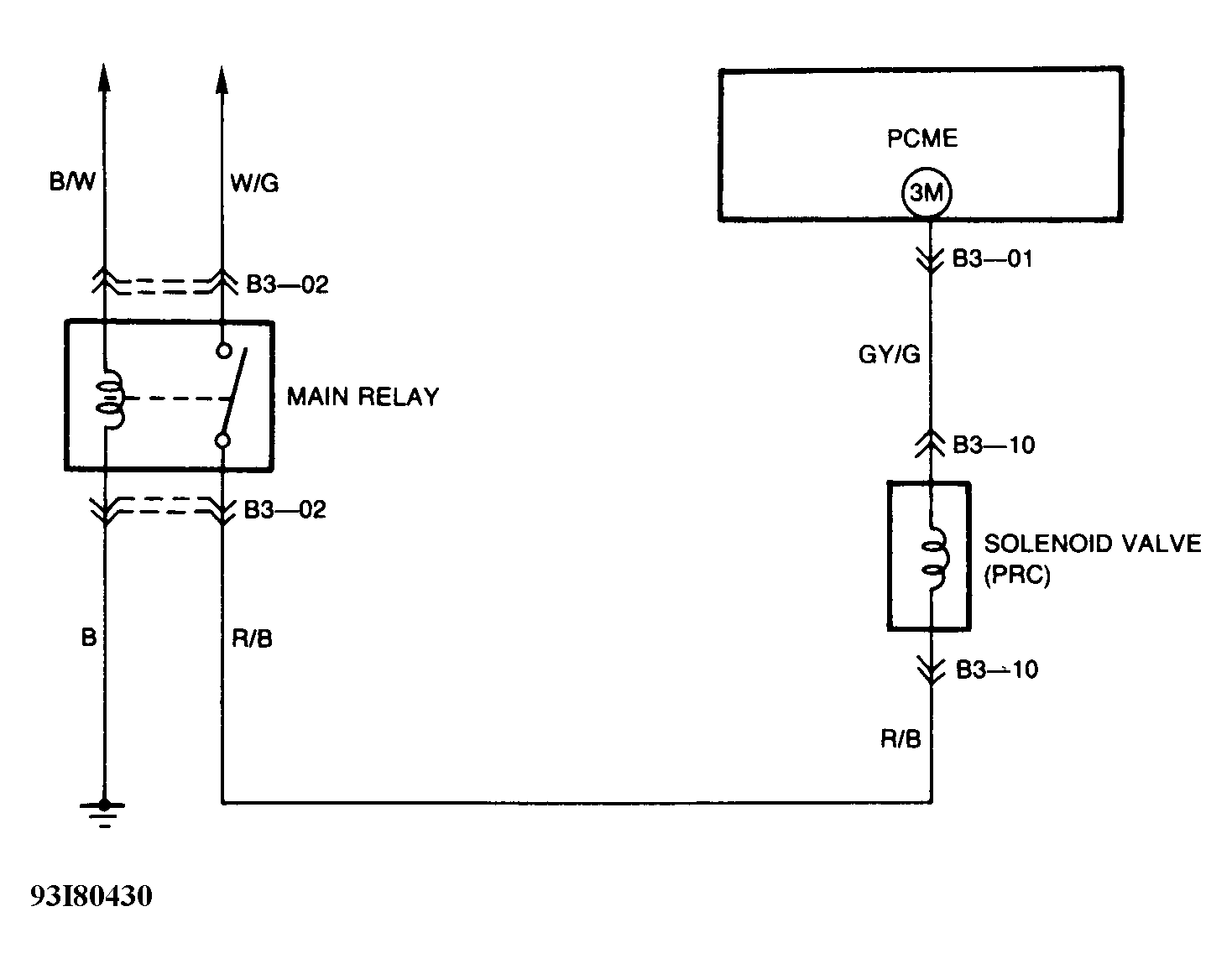

Fig 2: Trouble Code No. 25 - Schematic

Courtesy of MAZDA MOTORS CORP.
