Code 4: (Crankshaft Position Sensor 1, Ne1 Signal)

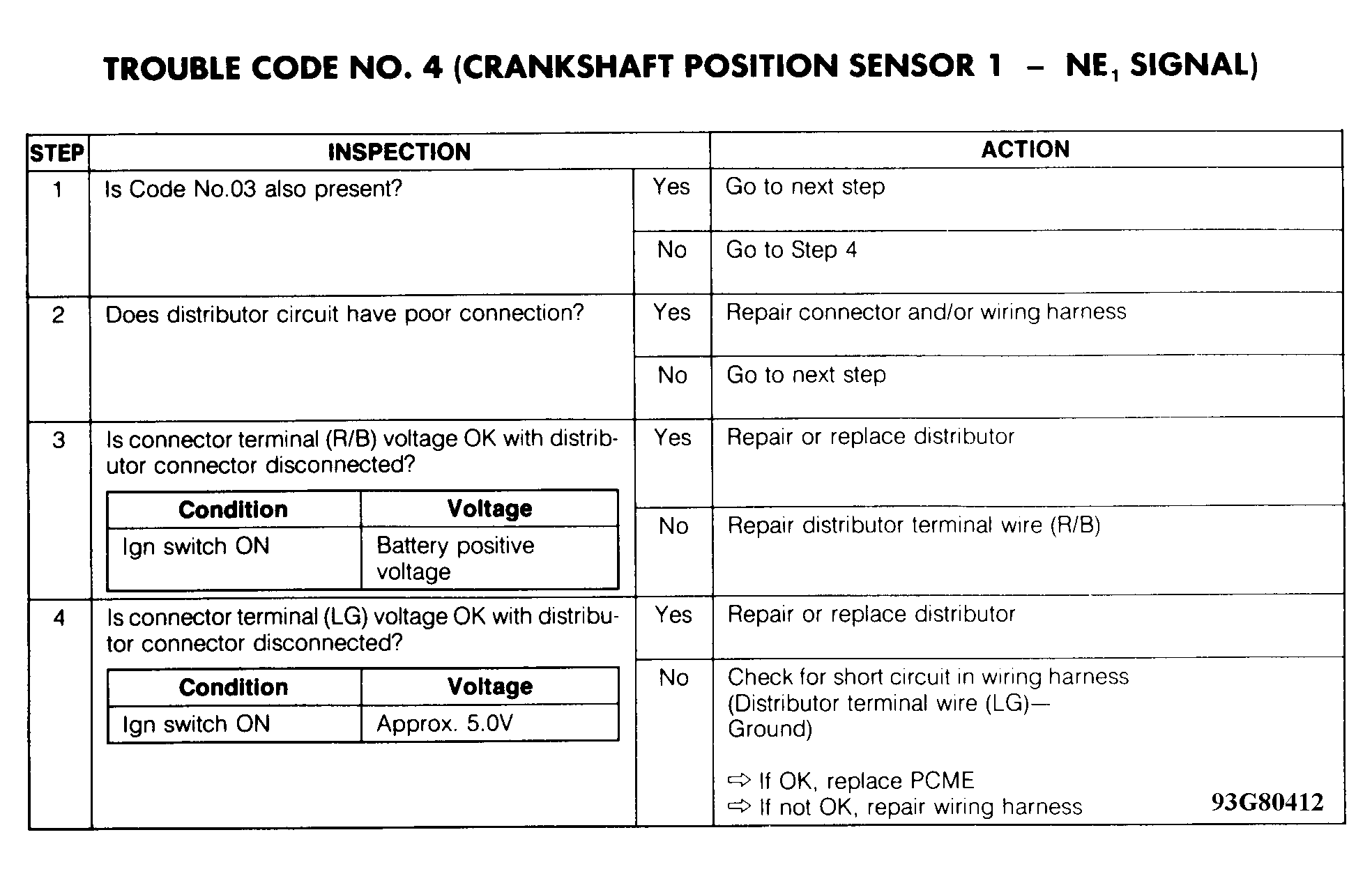

Fig 1: Trouble Code No. 4 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

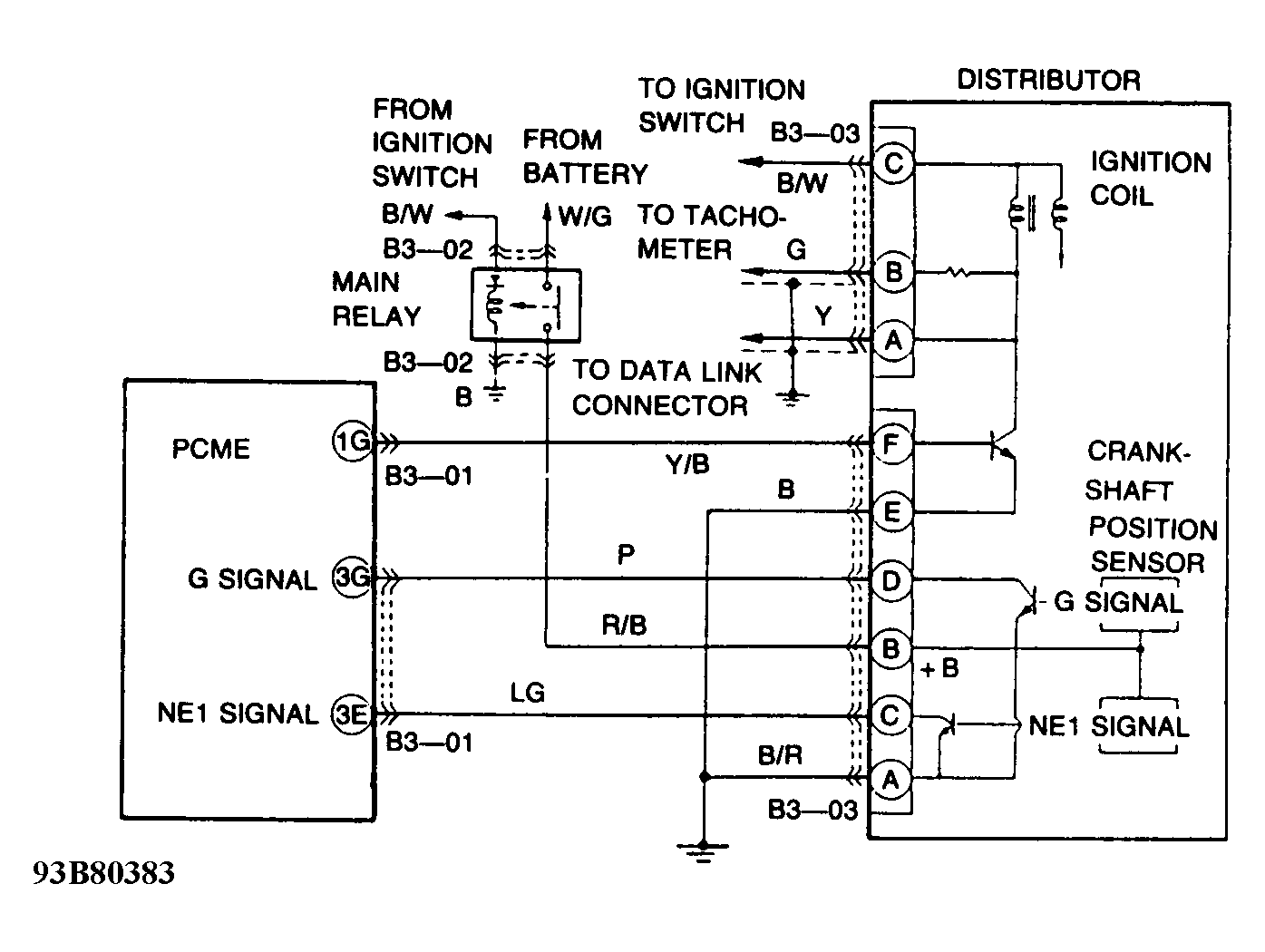

Fig 2: Trouble Code No. 4 - Schematic

Courtesy of MAZDA MOTORS CORP.
