Home › Mazda › 1993 › 929 › Repair and Diagnosis › Engine Performance › Wiring Diagrams › Wiring Diagram

Wiring Diagrams: Wiring Diagram

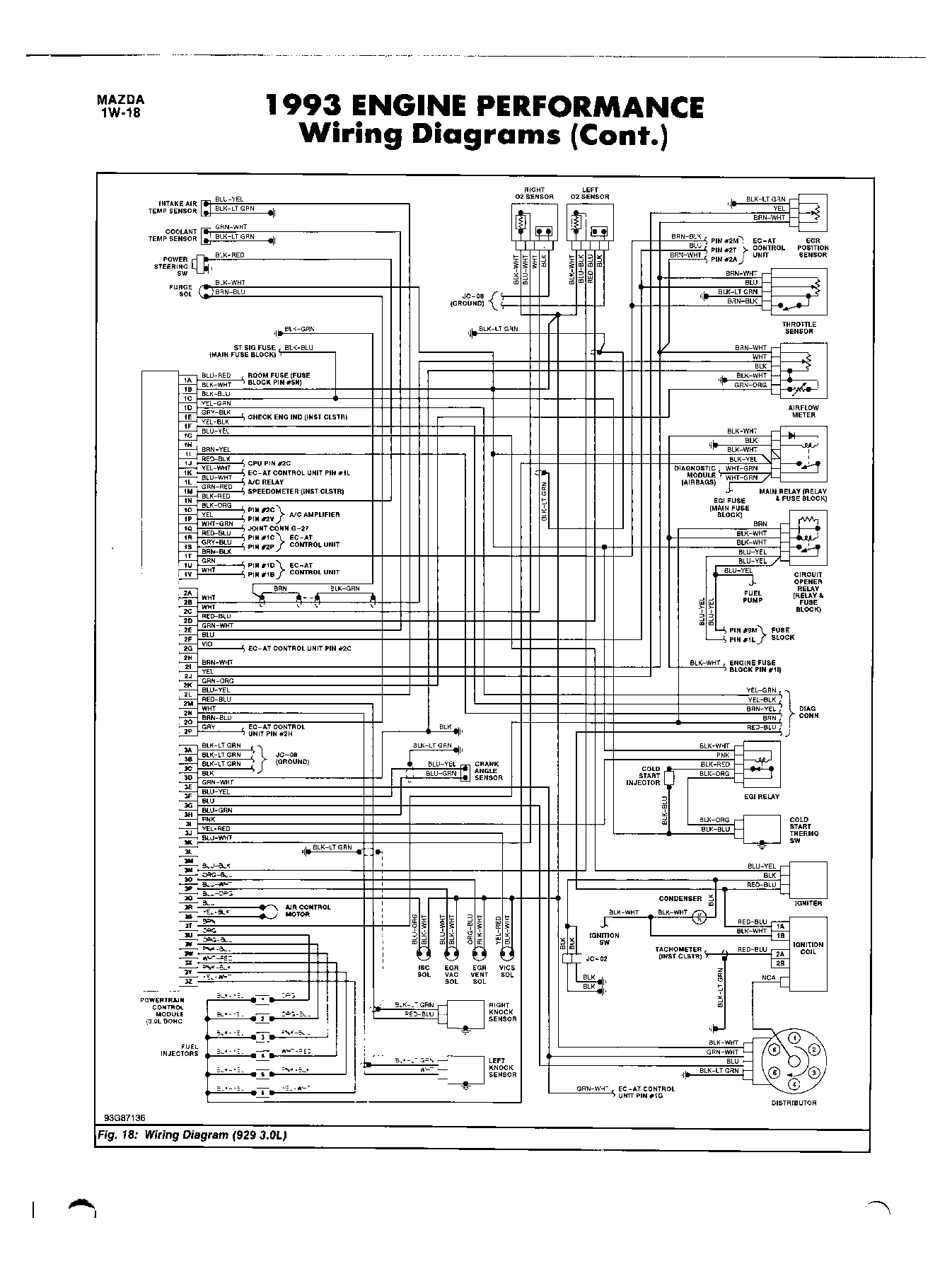

Fig 1: Wiring Diagram (929 3.0L)
G93G87136
