Engine Controls - Tests W/Codes - PFI
›
Trouble Code Identification
›
Code 12: (Throttle Sensor)
Code 12: (Throttle Sensor)

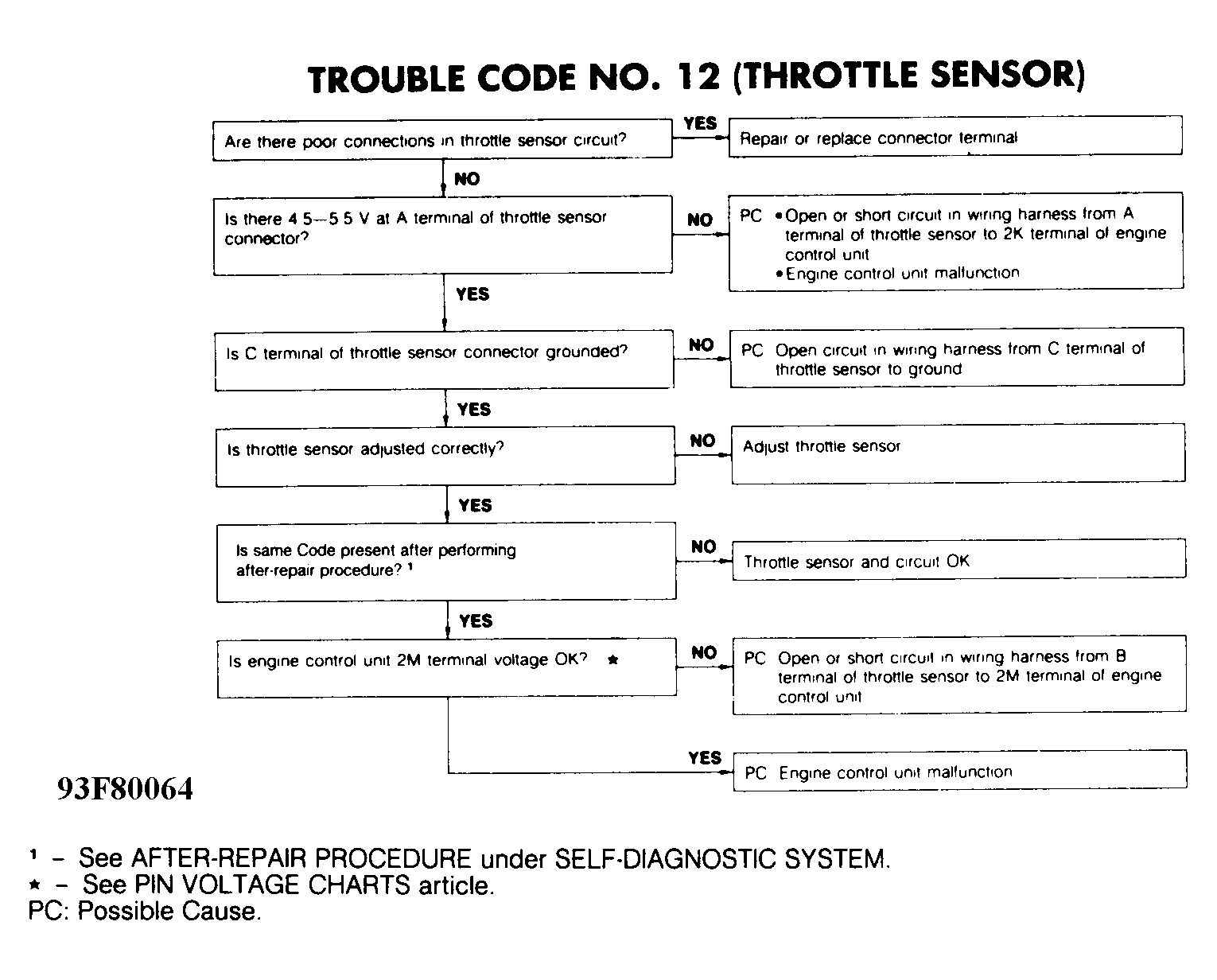

Fig 1: Trouble Code No. 12 (Throttle Sensor)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
