Engine Controls - Tests W/Codes - PFI
›
Trouble Code Identification
›
Notes
Trouble Code Identification: Notes

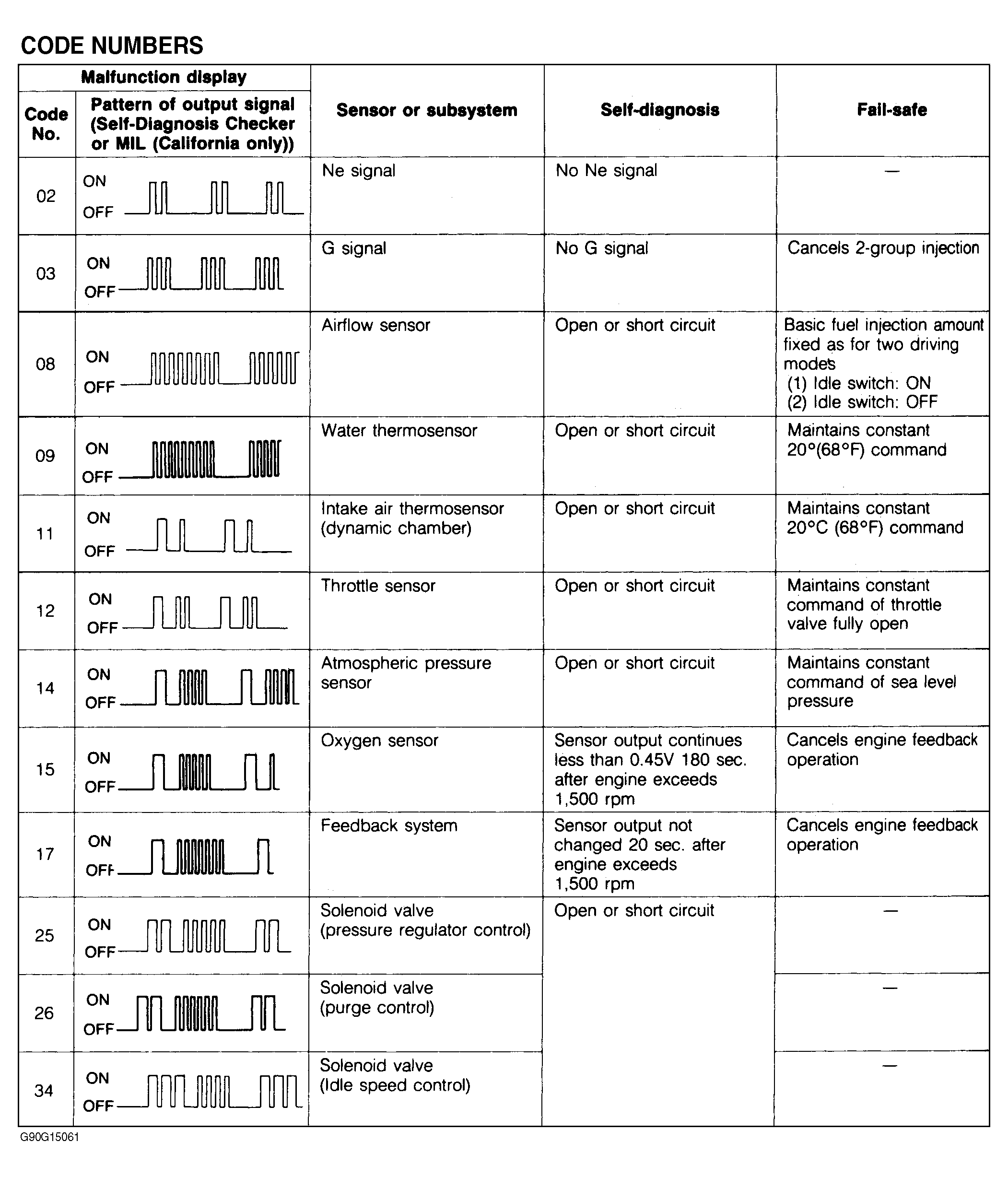

Fig 1: Trouble Code Identification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
