Code 12: (Throttle Sensor)
Code 12: (Throttle Sensor)

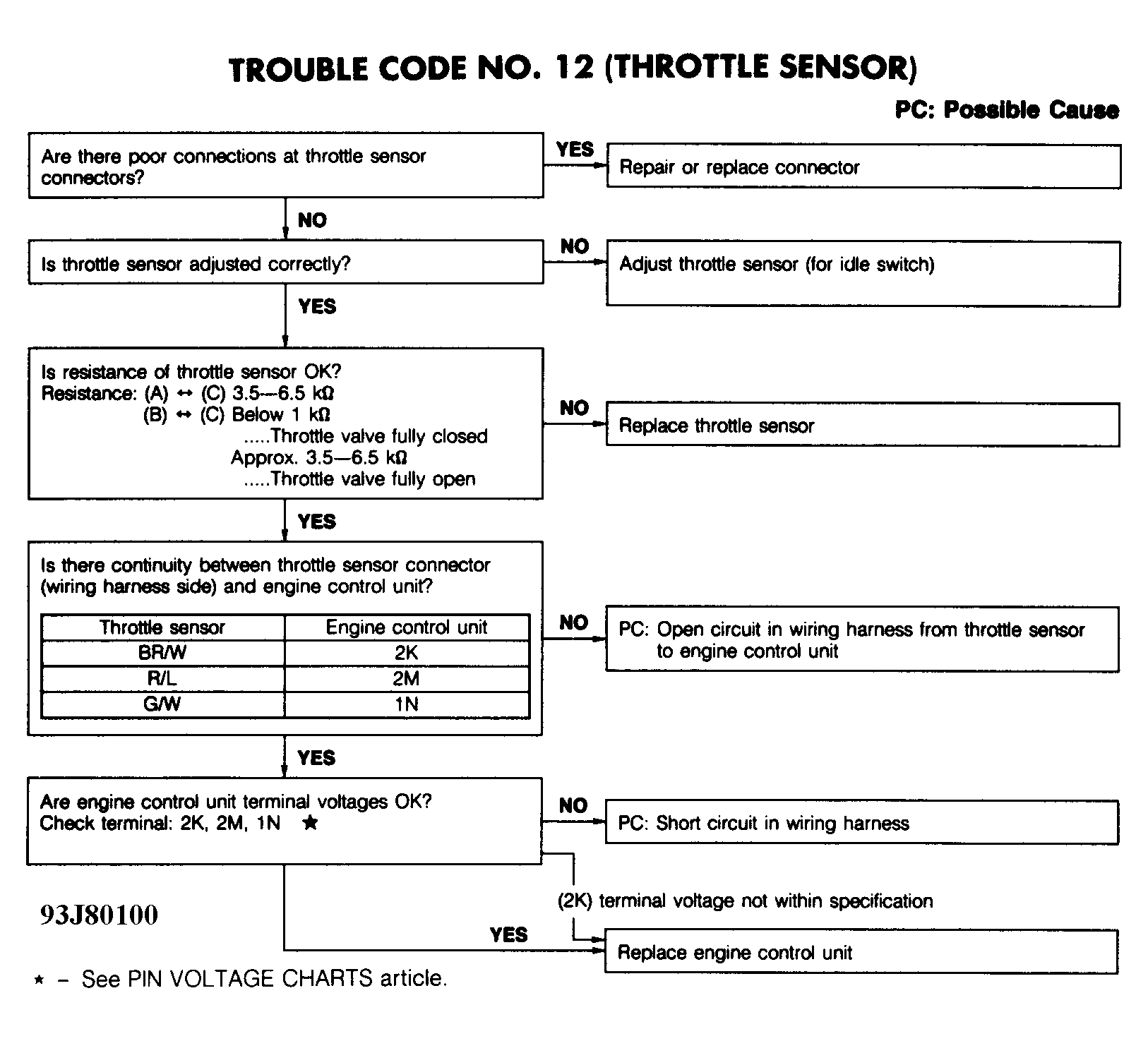

Fig 1: Trouble Code No. 12 (Throttle Sensor)
Courtesy of MAZDA MOTOR CORP.
Courtesy of MAZDA MOTOR CORP.
