Trouble Code Identification
›
Notes
Trouble Code Identification: Notes

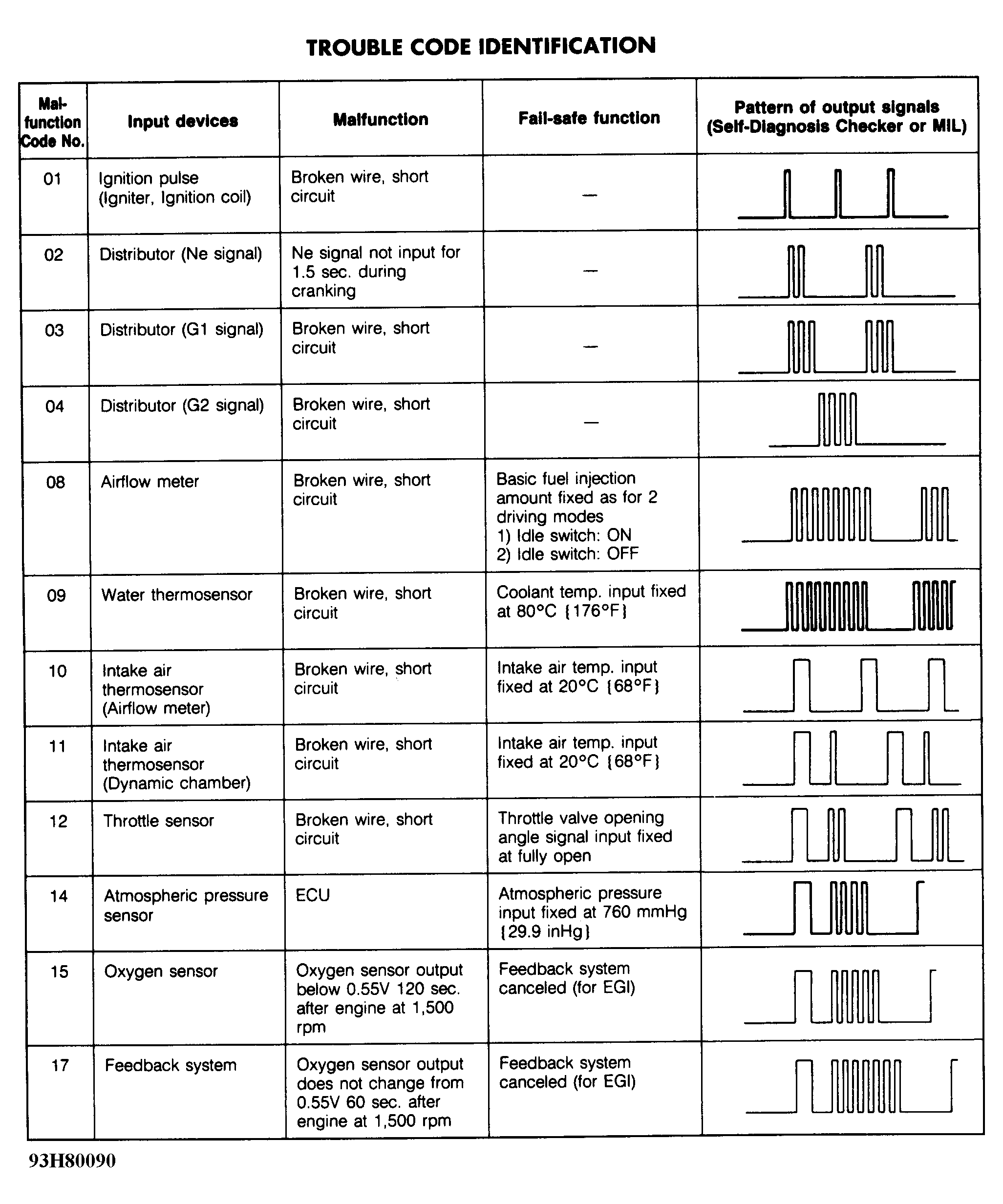

Fig 1: Trouble Code Identification
Courtesy of MAZDA MOTOR CORP.

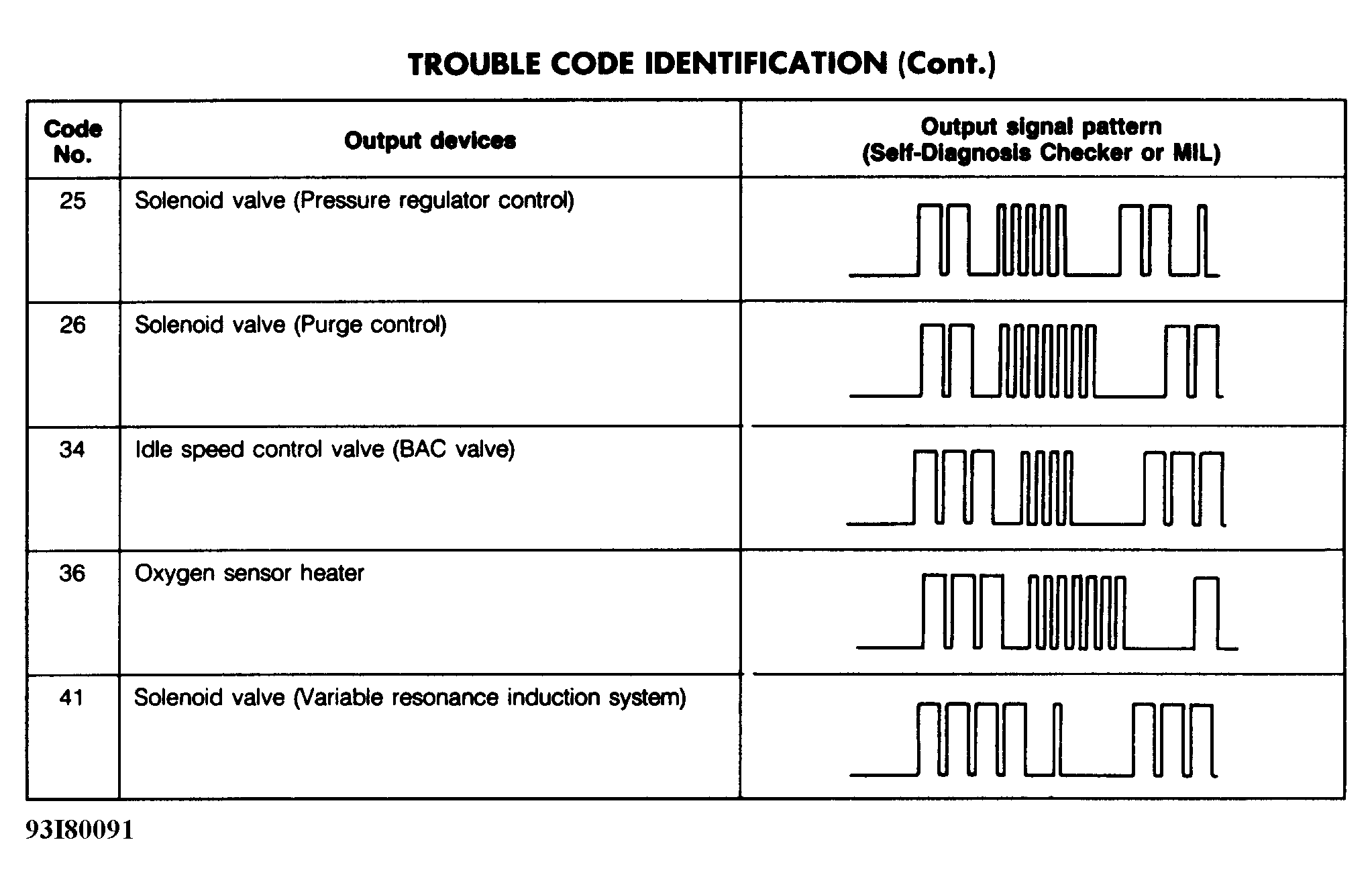

Fig 2: Trouble Code Identification (Cont.)
Courtesy of MAZDA MOTOR CORP.
Courtesy of MAZDA MOTOR CORP.
Courtesy of MAZDA MOTOR CORP.
