Code 08: (Airflow Meter)
Code 08: (Airflow Meter)

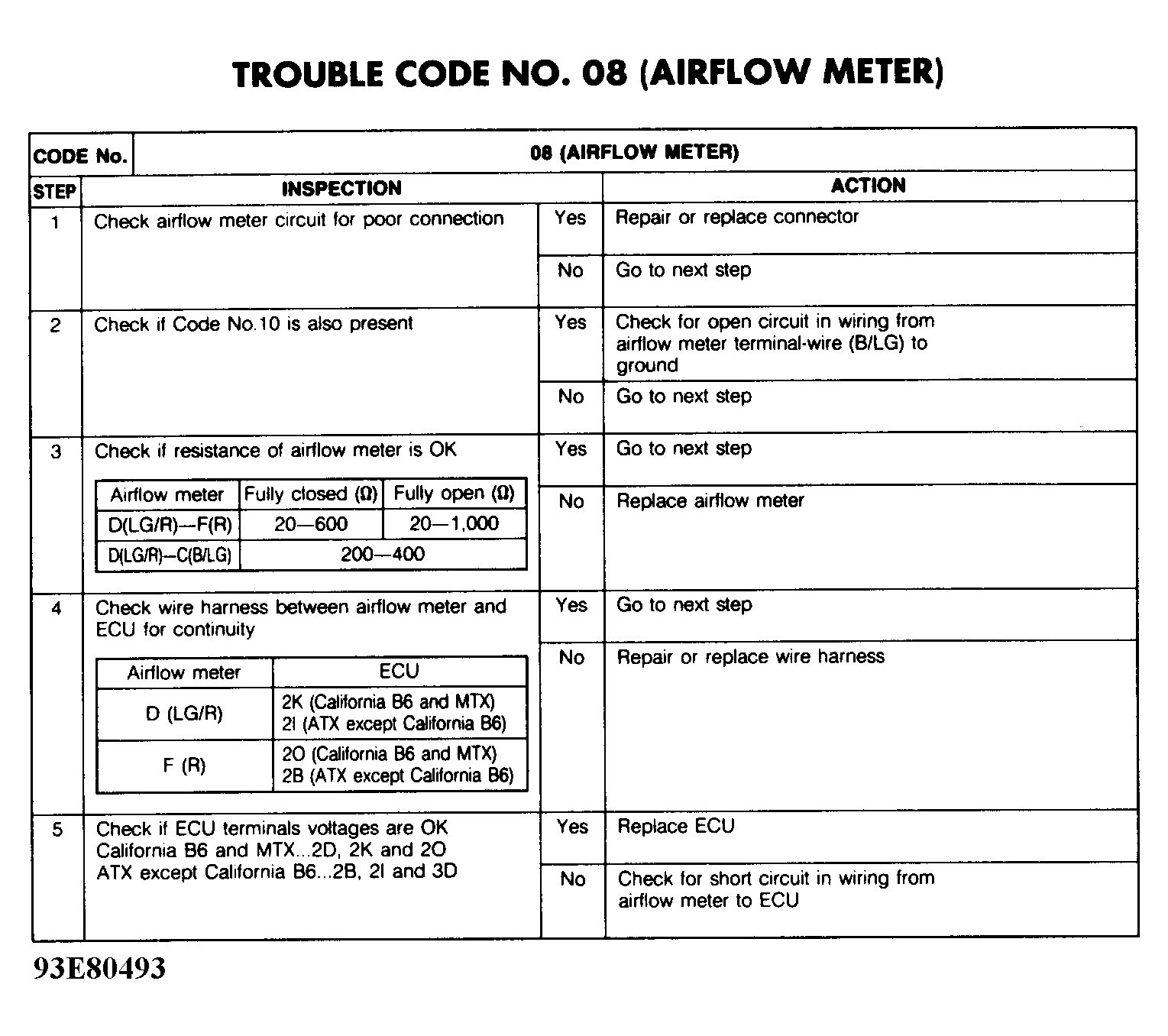

Fig 1: Trouble Code No. 08 (Diagnostic Flowchart)
Courtesy of MAZDA MOTORS CORP.

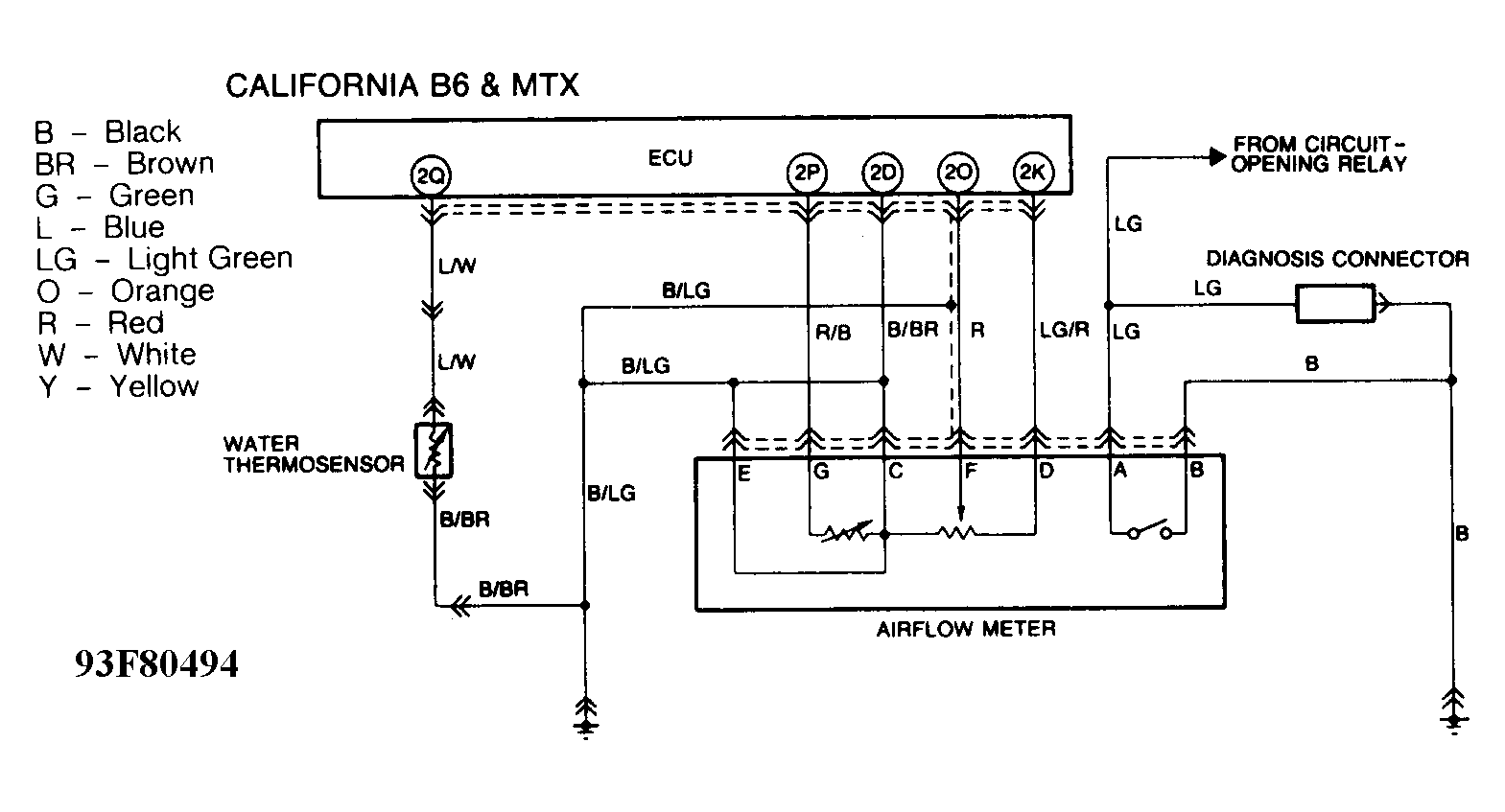

Fig 2: Trouble Code No. 08 (Schematic - CA B6 & MTX)
Courtesy of MAZDA MOTORS CORP.

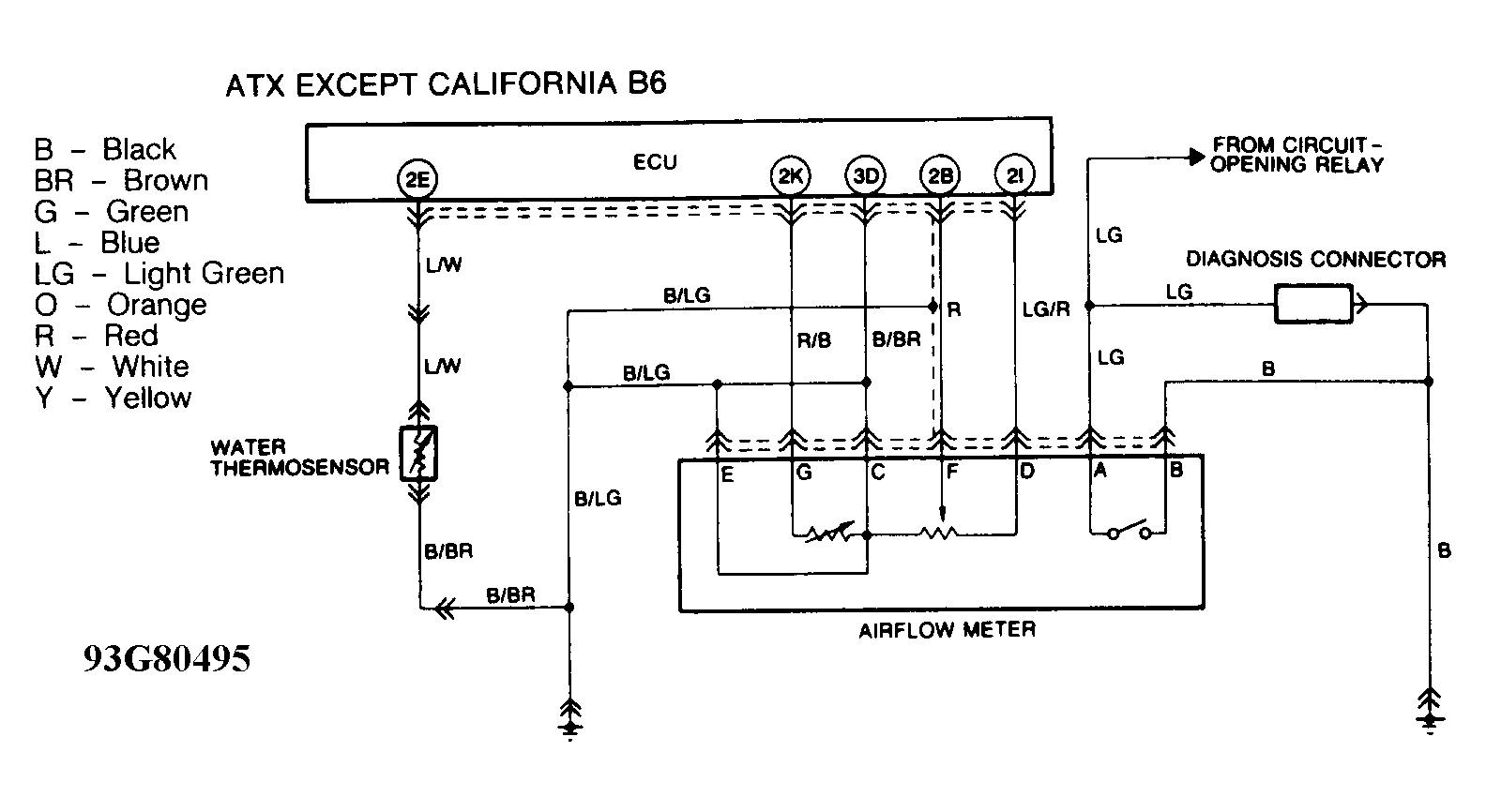

Fig 3: Trouble Code No. 08 (Schematic - ATX Except CA)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
