Code 10: (Intake Air THERMOSENSOR)

Fig 1: Trouble Code No. 09 (Diagnostic Flowchart)

Courtesy of MAZDA MOTORS CORP.

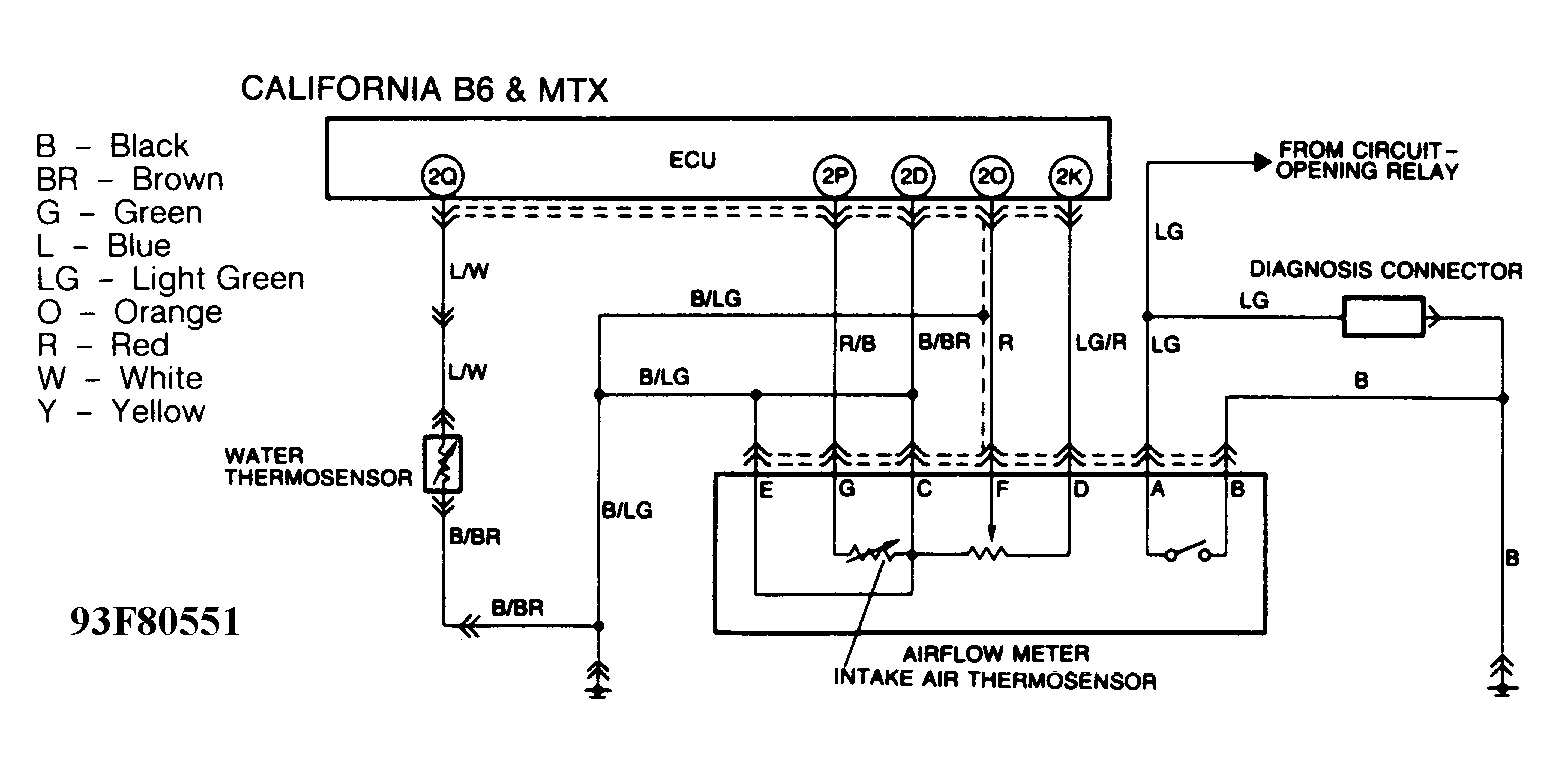

Fig 2: Trouble Code No. 09 (Schematic - CA B6 & MTX)

Courtesy of MAZDA MOTORS CORP.

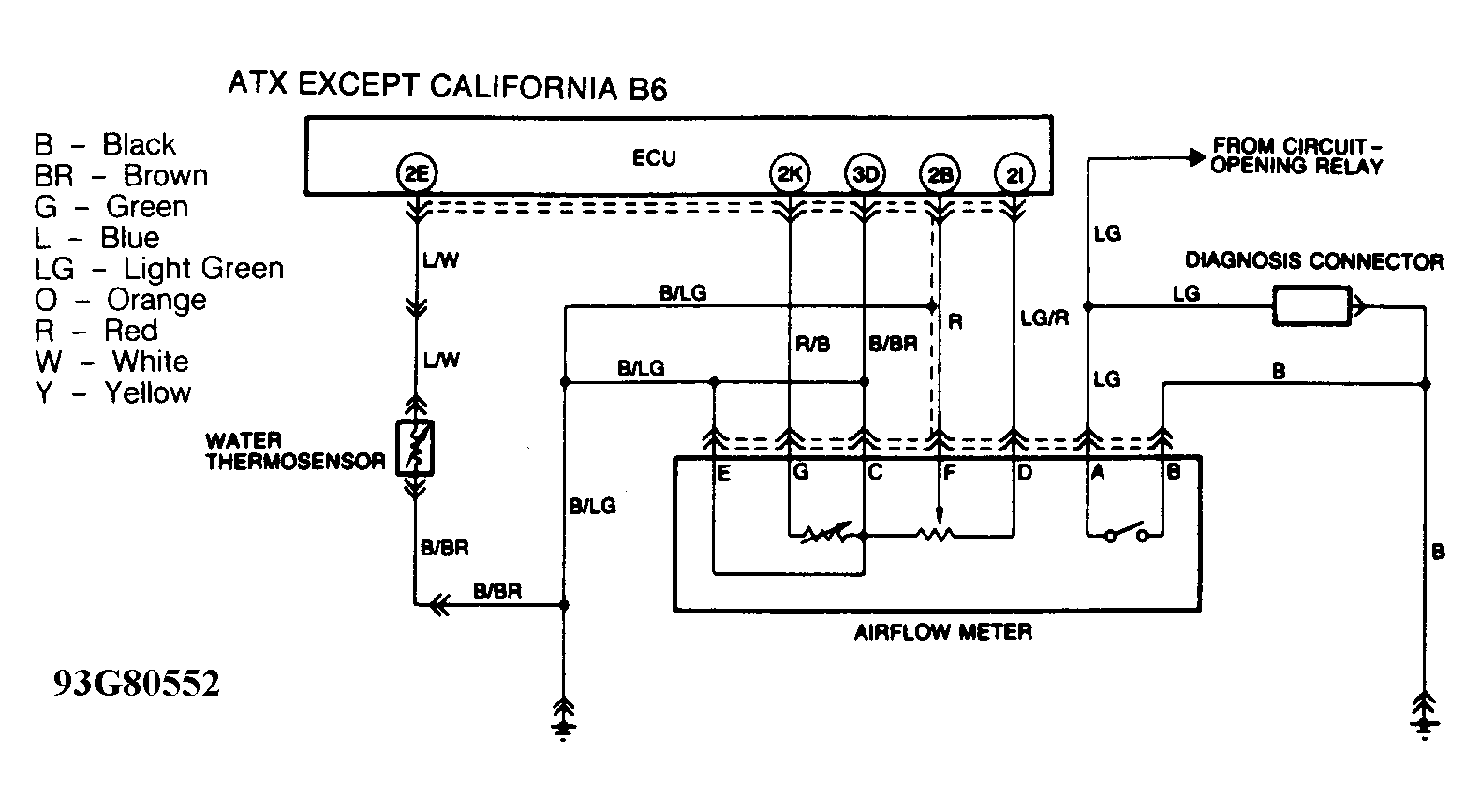

Fig 3: Trouble Code No. 09 (Schematic - ATX Except CA)

Courtesy of MAZDA MOTORS CORP.
