Code 26: (Purge Control Solenoid Valve)

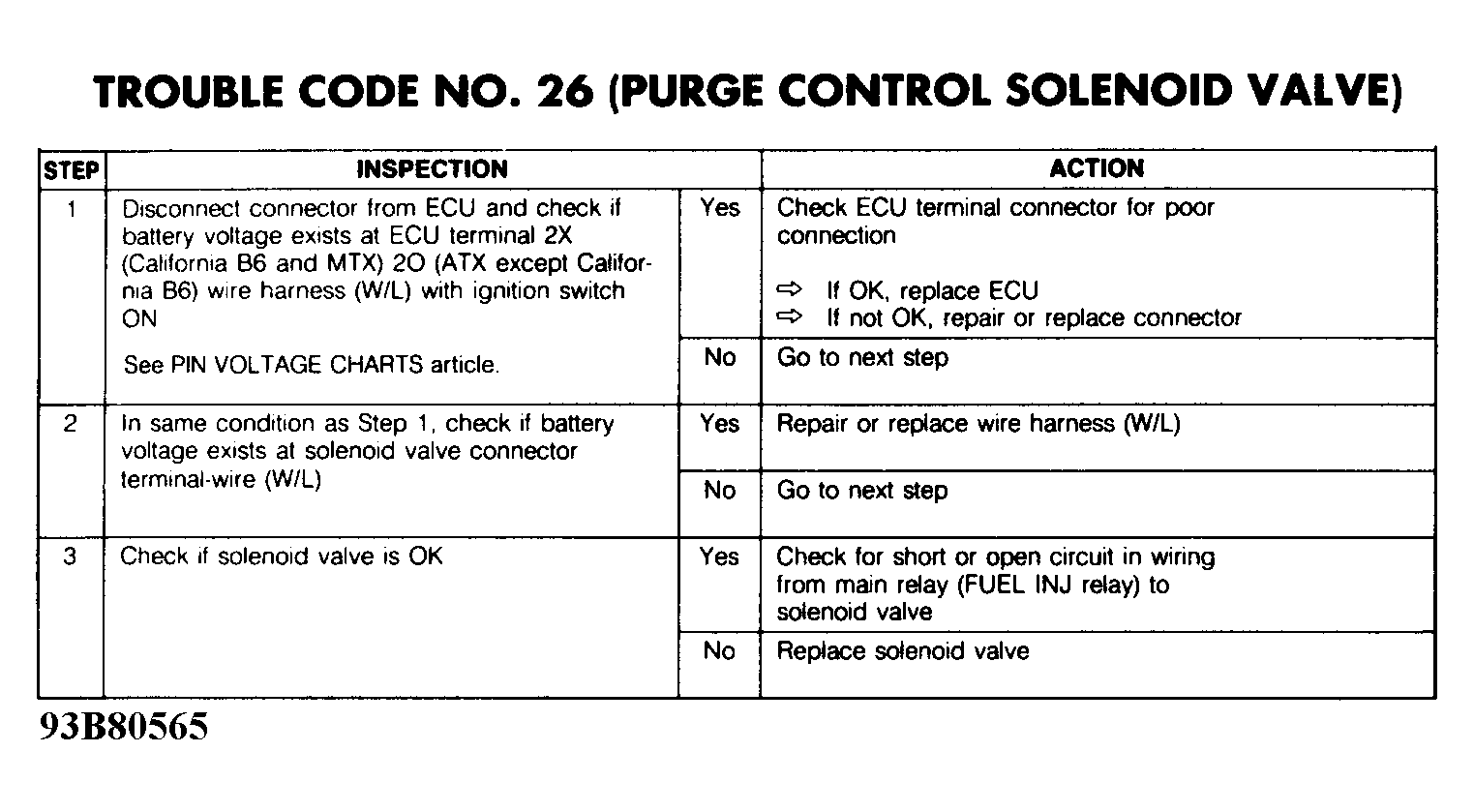

Fig 1: Trouble Code No. 26 (Diagnostic Flowchart)

Courtesy of MAZDA MOTORS CORP.

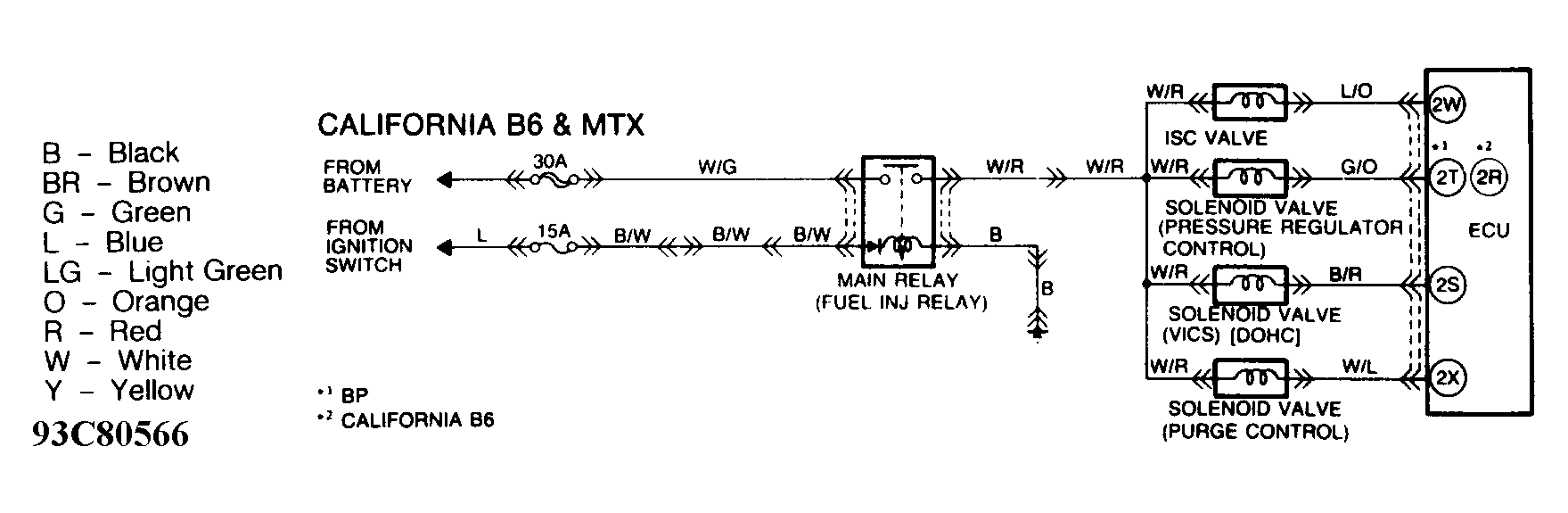

Fig 2: Trouble Code No. 26 (Schematic - CA B6 & MTX)

Courtesy of MAZDA MOTORS CORP.

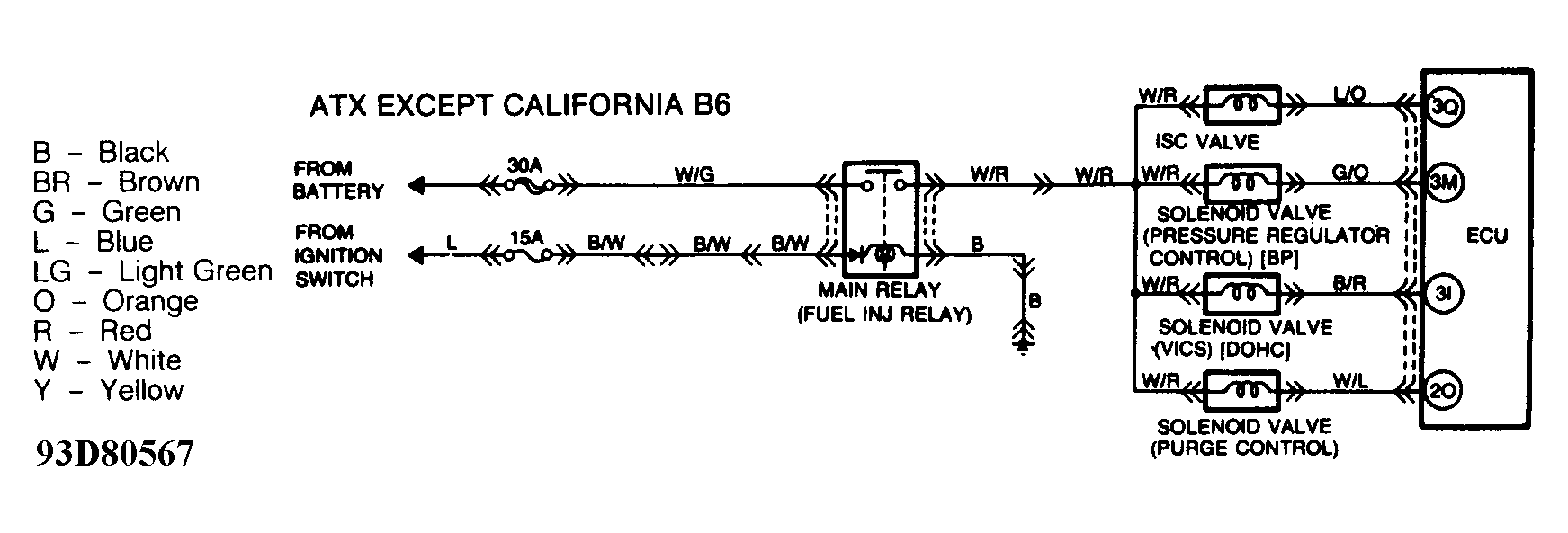

Fig 3: Trouble Code No. 26 (Schematic - ATX Except CA)

Courtesy of MAZDA MOTORS CORP.
