Code 34: (Idle Speed Control)

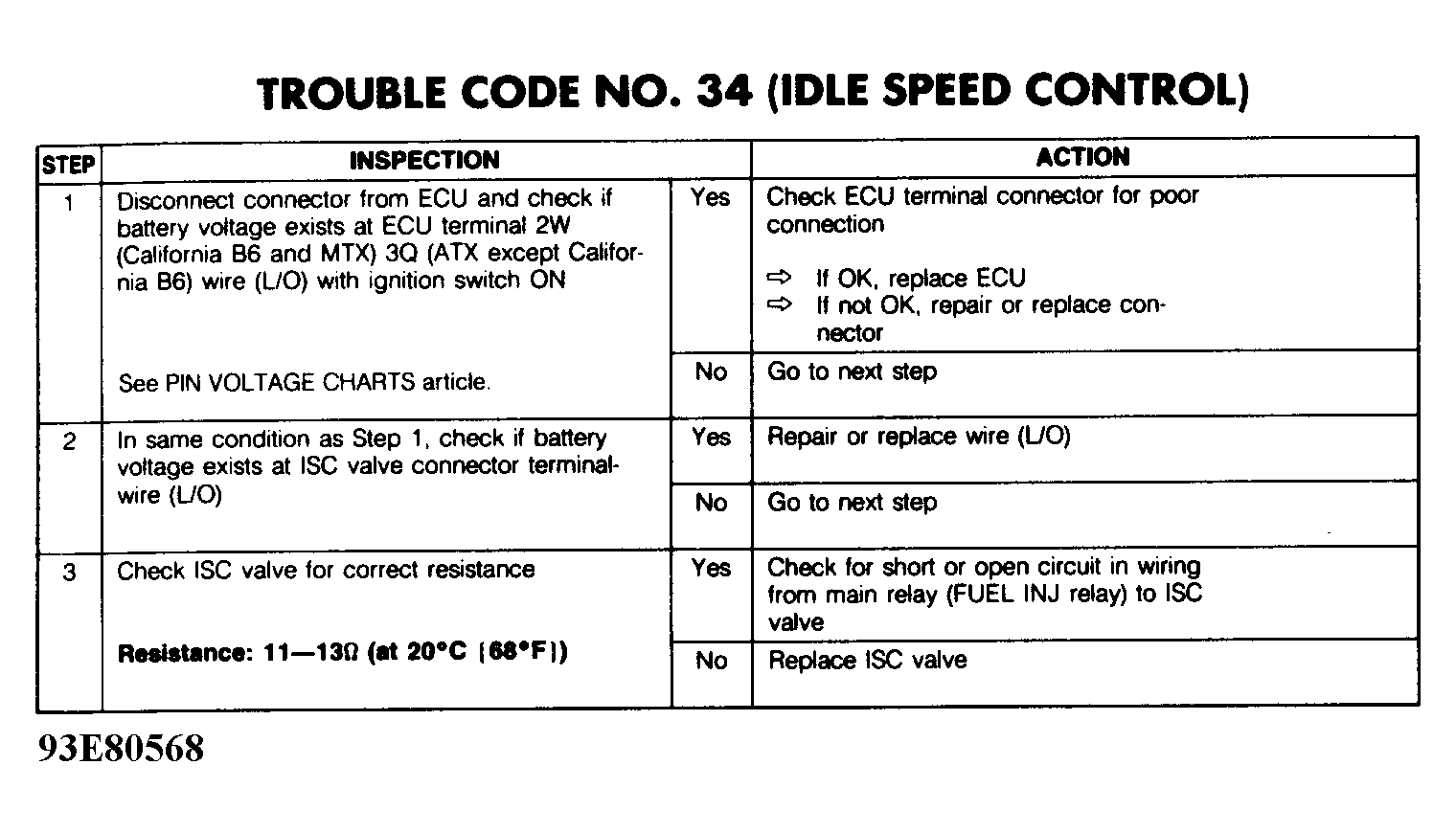

Fig 1: Trouble Code No. 34 (Diagnostic Flowchart)
G93E80568Courtesy of MAZDA MOTORS CORP.
