Trouble Code Identification: Notes

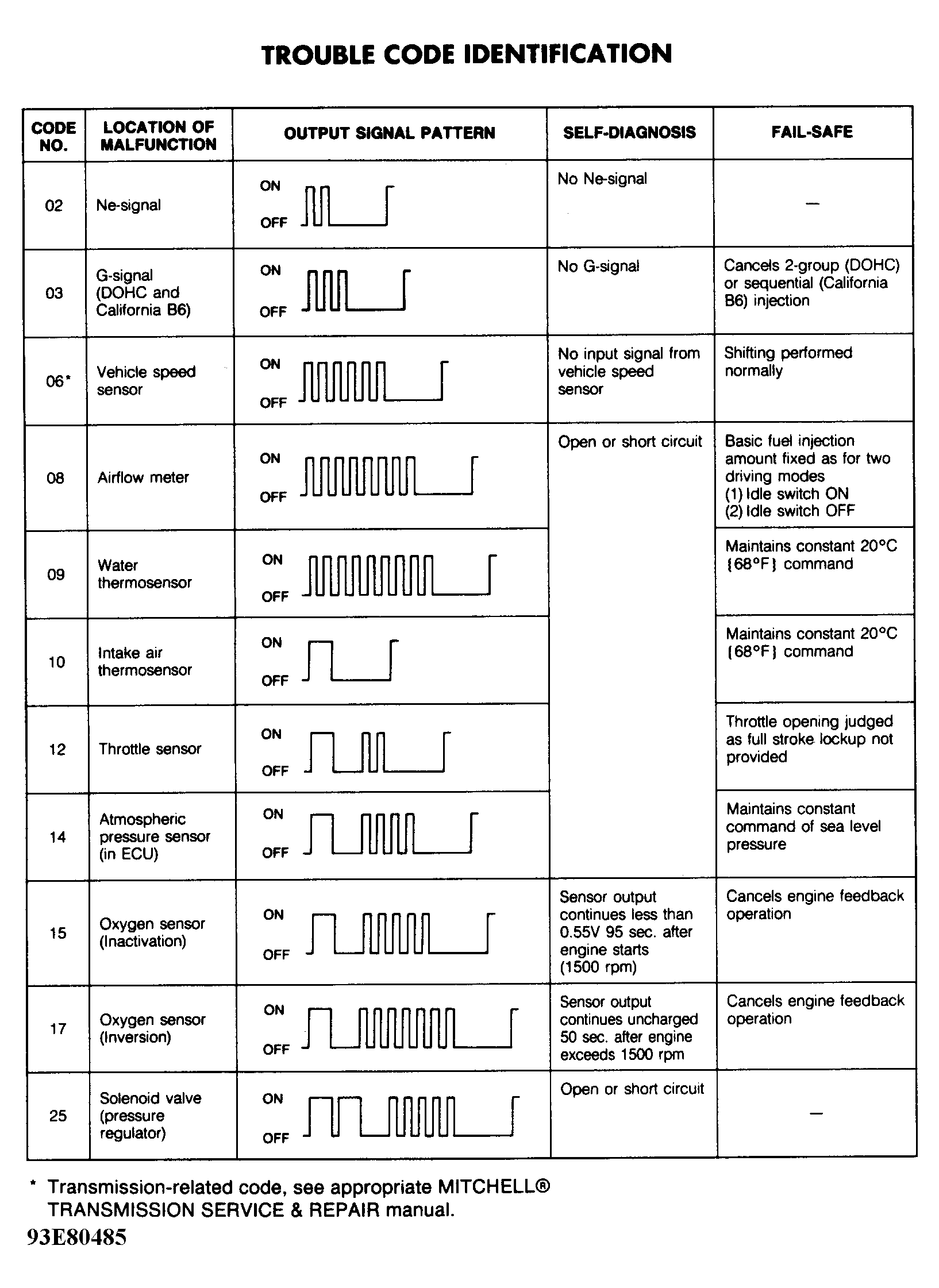

Fig 1: Trouble Code Identification Chart
G93E80485Courtesy of MAZDA MOTORS CORP.

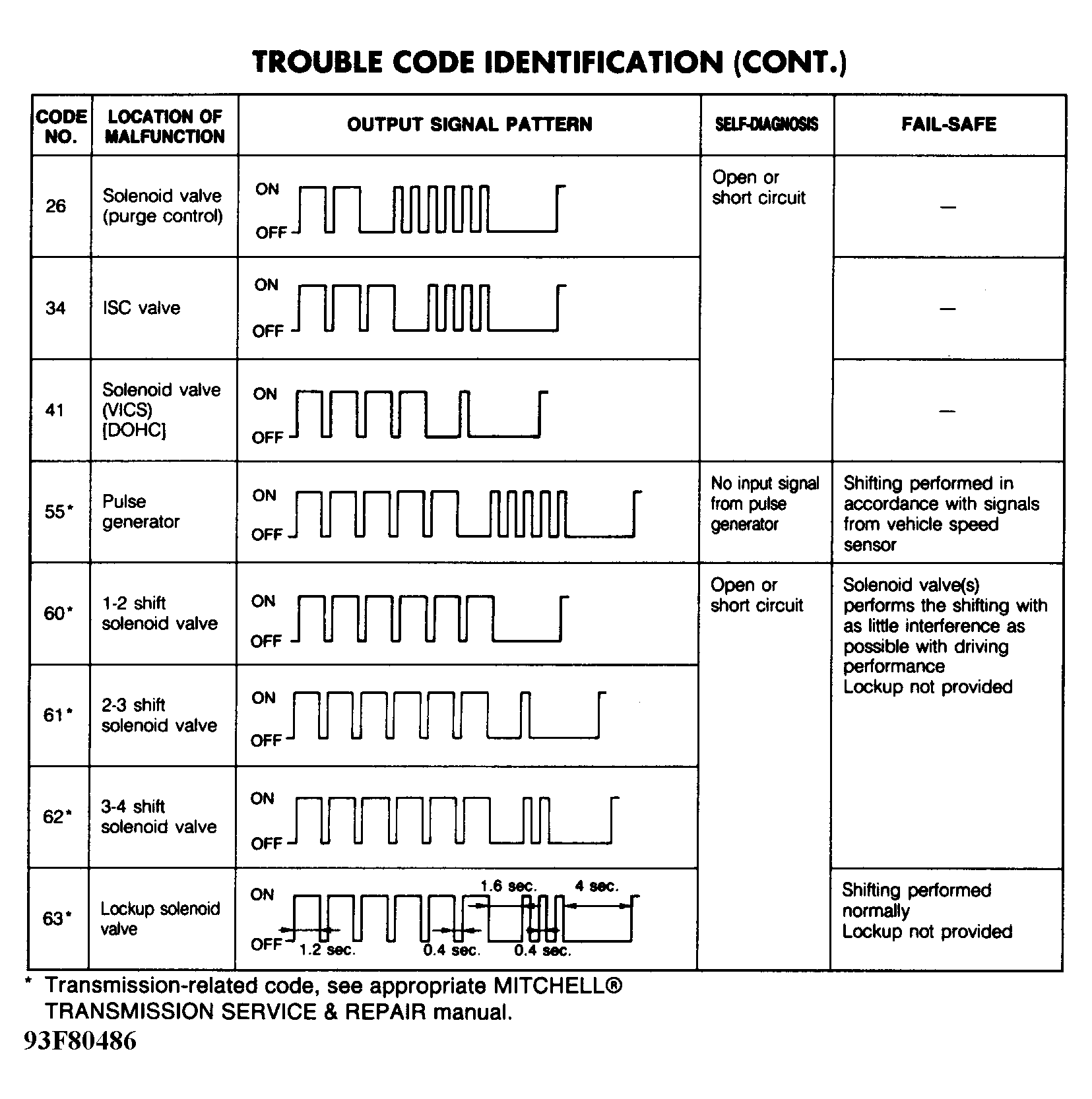

Fig 2: Trouble Code Identification Chart (Cont.)
G93F80486Courtesy of MAZDA MOTORS CORP.
