Code 15: (Oxygen Sensor)

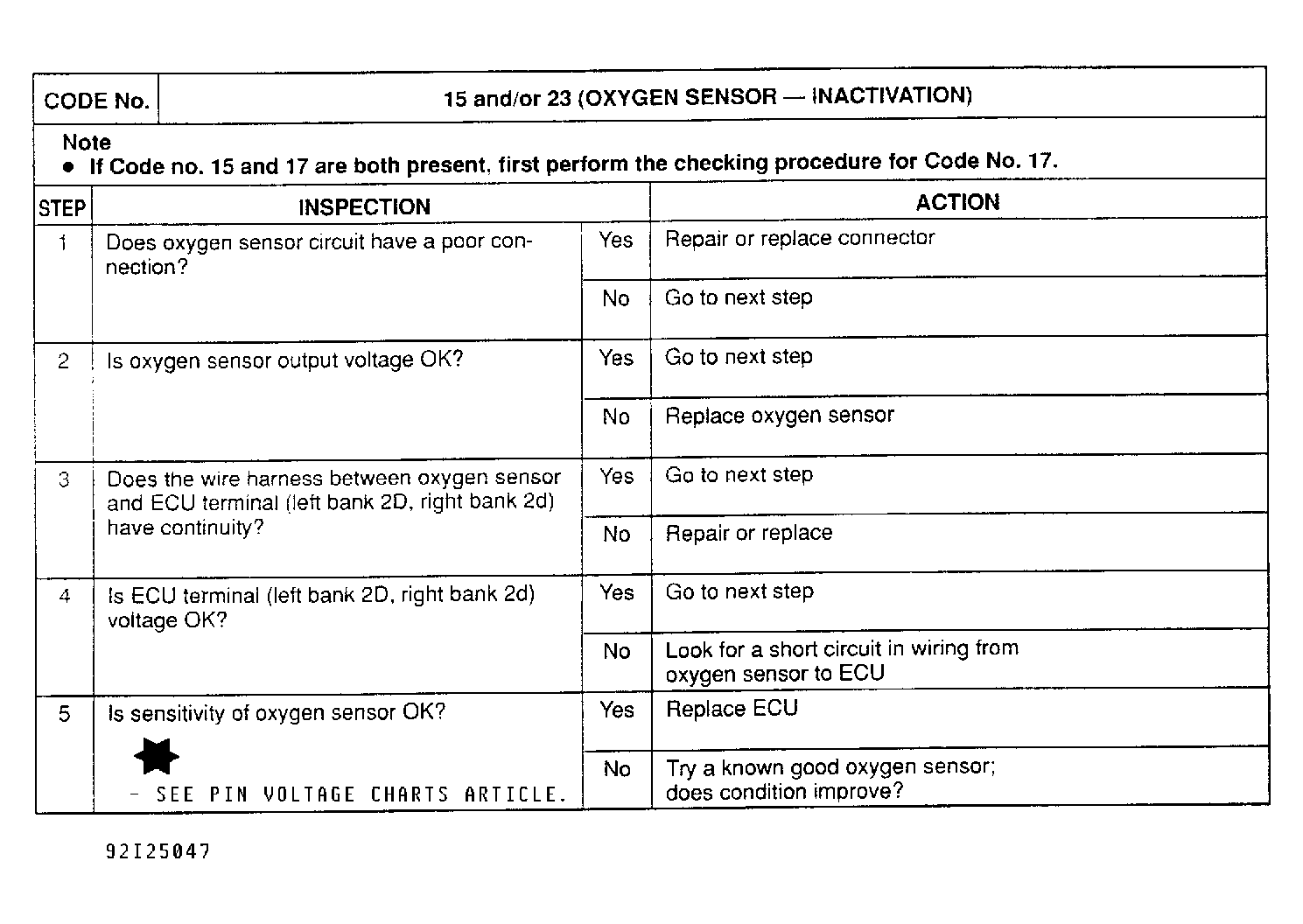

Fig 1: Trouble Code No. 15 - Diagnostic Flowchart
G92I25047Courtesy of MAZDA MOTORS CORP.

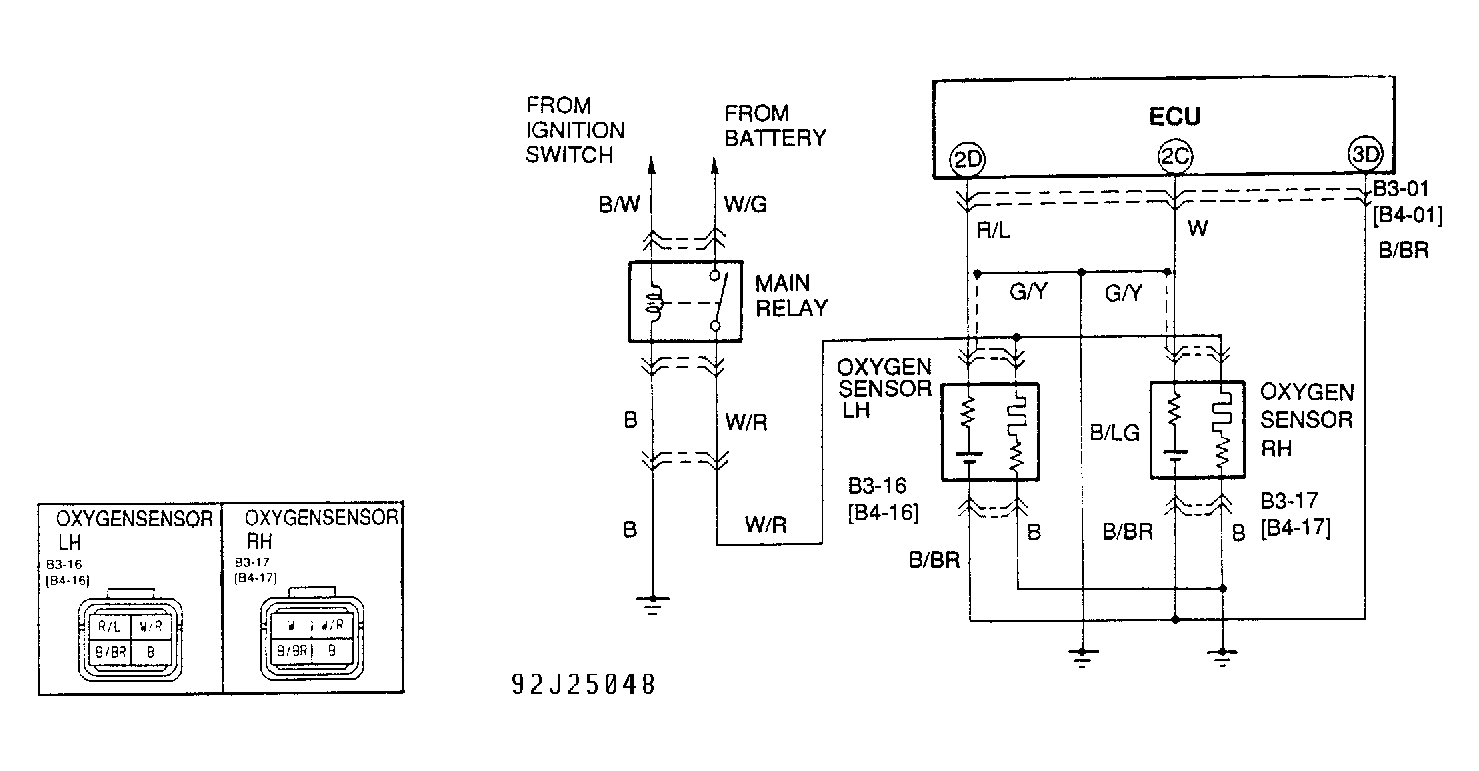

Fig 2: Trouble Code No. 15 - Schematic
G92J25048Courtesy of MAZDA MOTORS CORP.
