Code 16: (EGR Position Sensor)

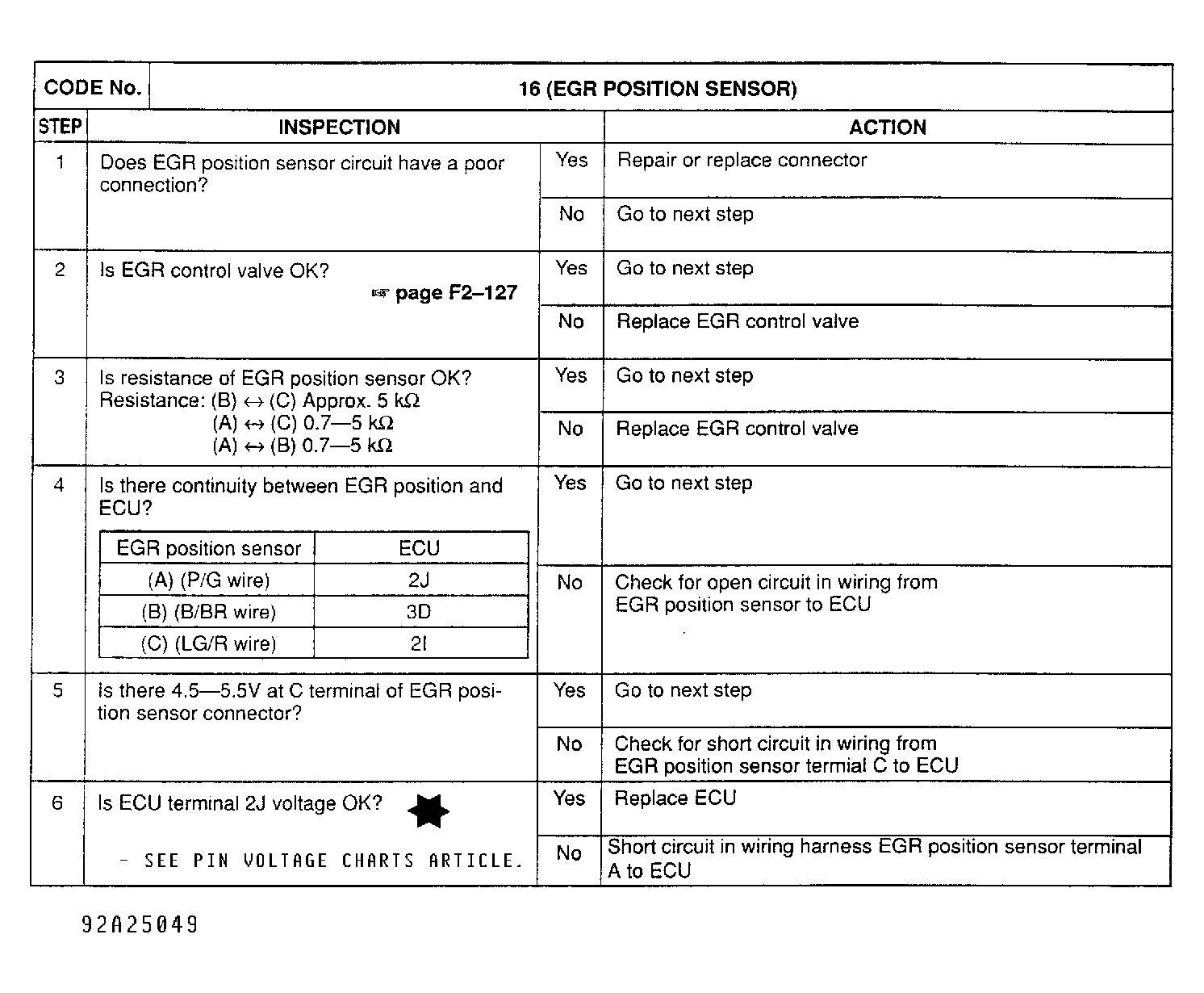

Fig 1: Trouble Code No. 16 - Diagnostic Flowchart

G92A25049

Courtesy of MAZDA MOTORS CORP.

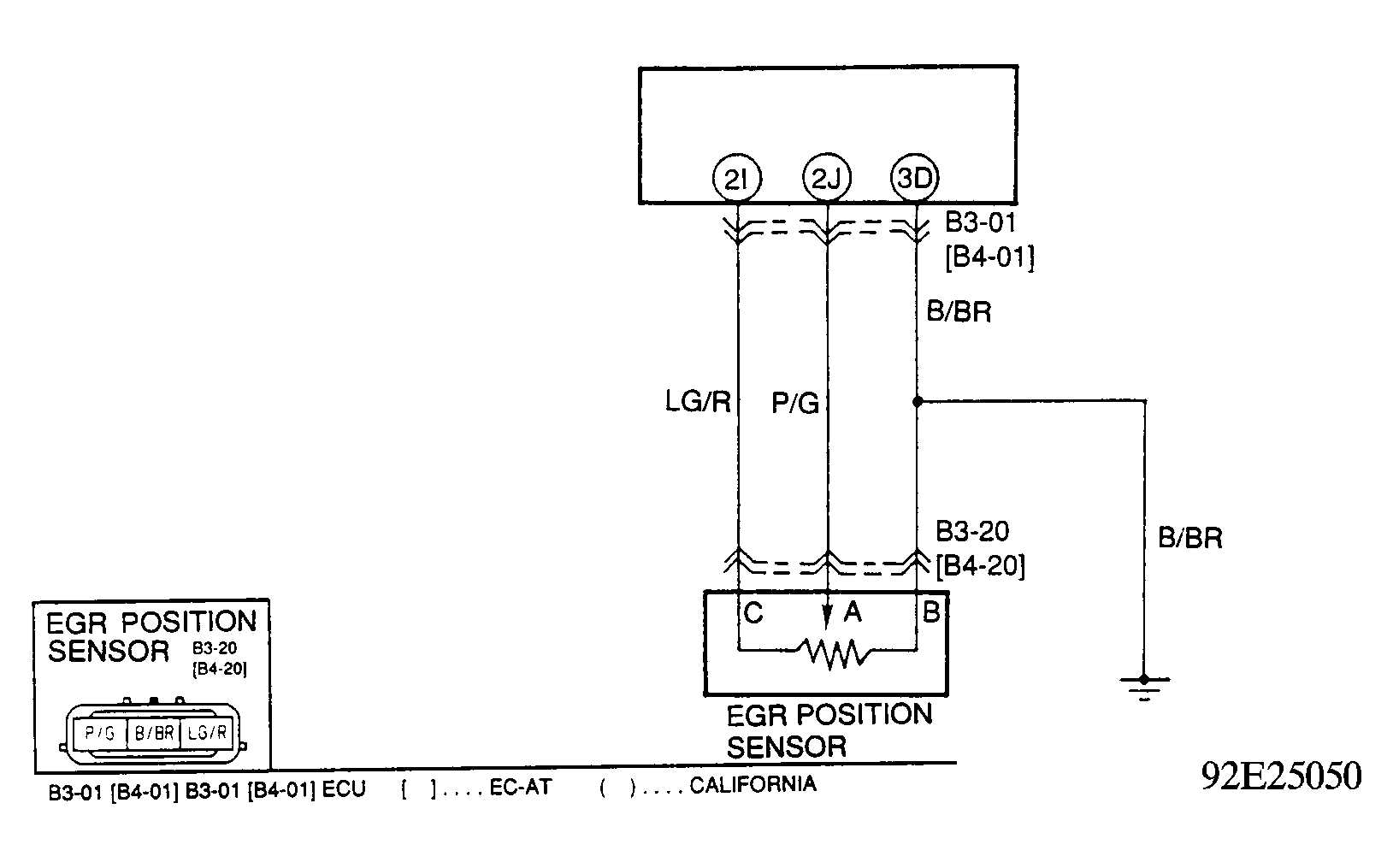

Fig 2: Trouble Code No. 16 - Schematic

G92E25050

Courtesy of MAZDA MOTORS CORP.
