Interior Fuse Panel Identification: Notes

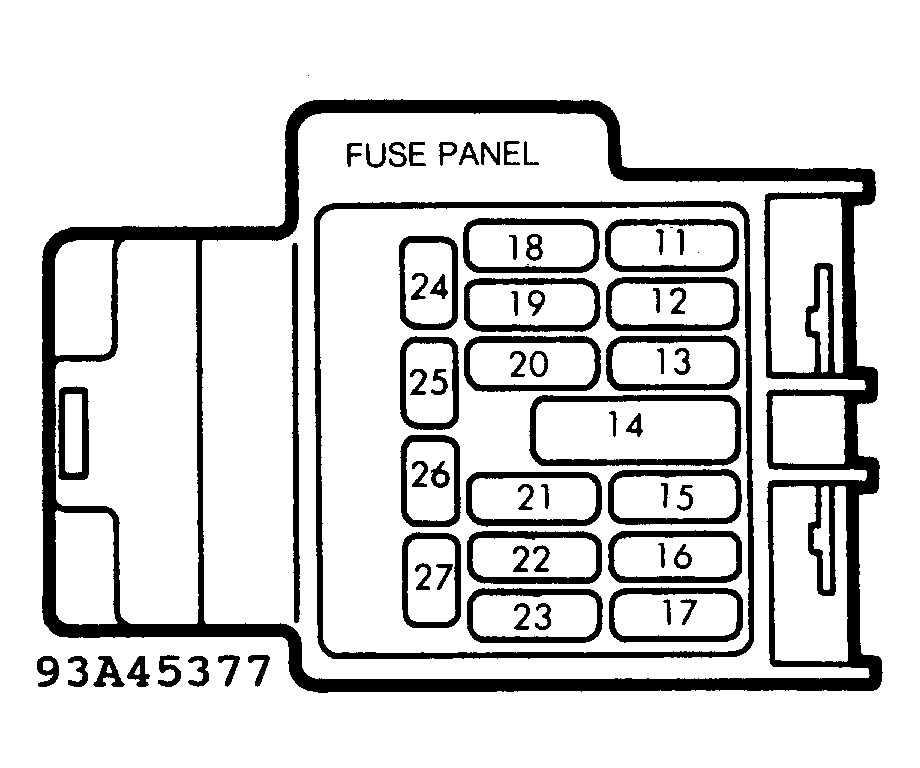

Fig 1: Interior Fuse Panel Identificatio (1990-93)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

Fig 2: Interior Fuse Panel Identification (1994-95)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

NOTE: Fuses identified by numbers 11-27 reference the years 1990-93. Fused identified by alfa characters A-Q reference the years 1994-95.
