Code 11: (Intake Air Temperature Sensor)

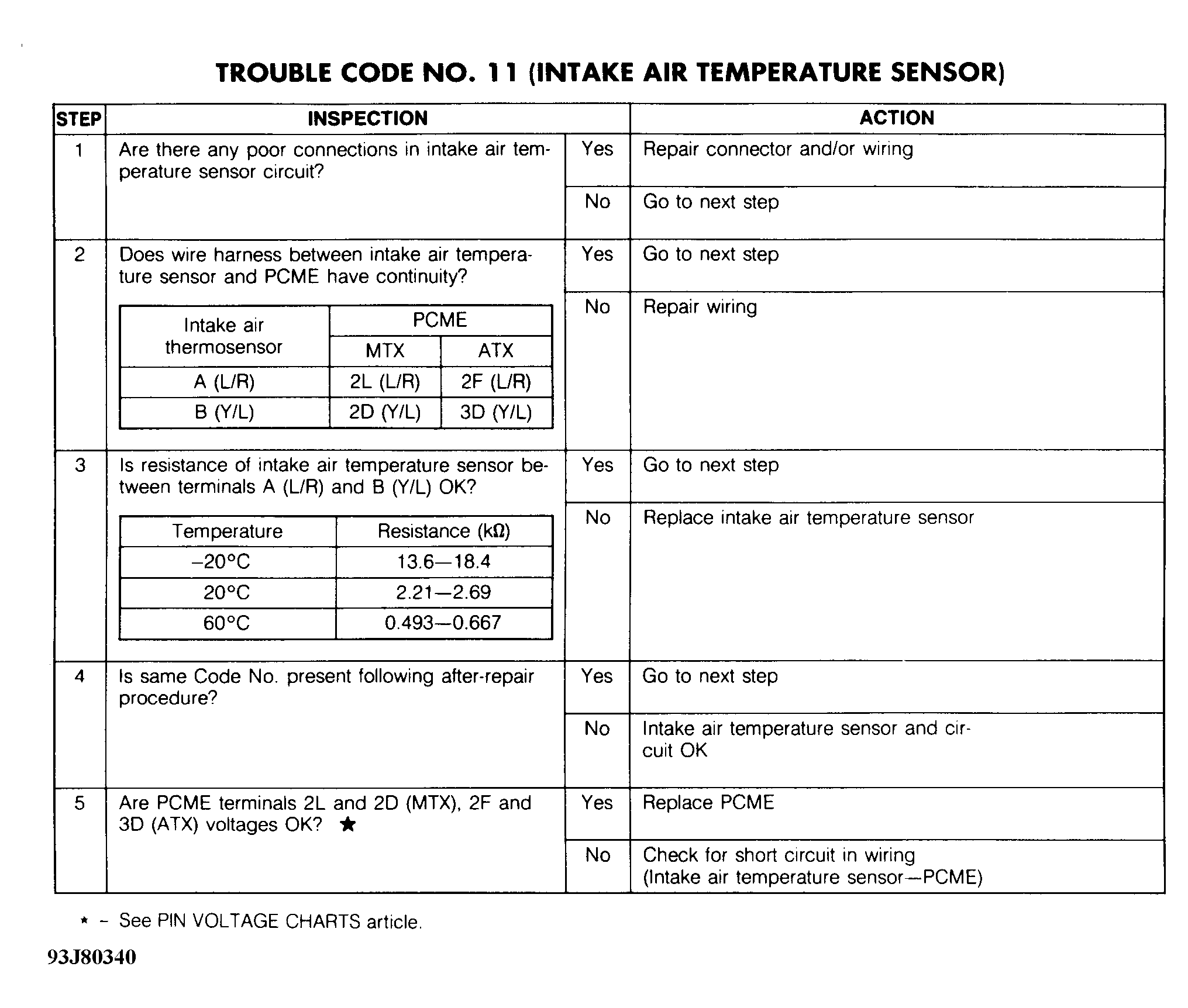

Fig 1: Trouble Code No. 11 - Diagnostic Flowchart
G93J80340Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 11 - Schematic
G93G80339Courtesy of MAZDA MOTORS CORP.
