Home › Mazda › 1993 › MX-6 Base, Automatic › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes - 2.0L › Trouble Code Identification › Code 14: (Barometric Absolute Pressure Sensor/ATX)

Code 14: (Barometric Absolute Pressure Sensor/ATX)

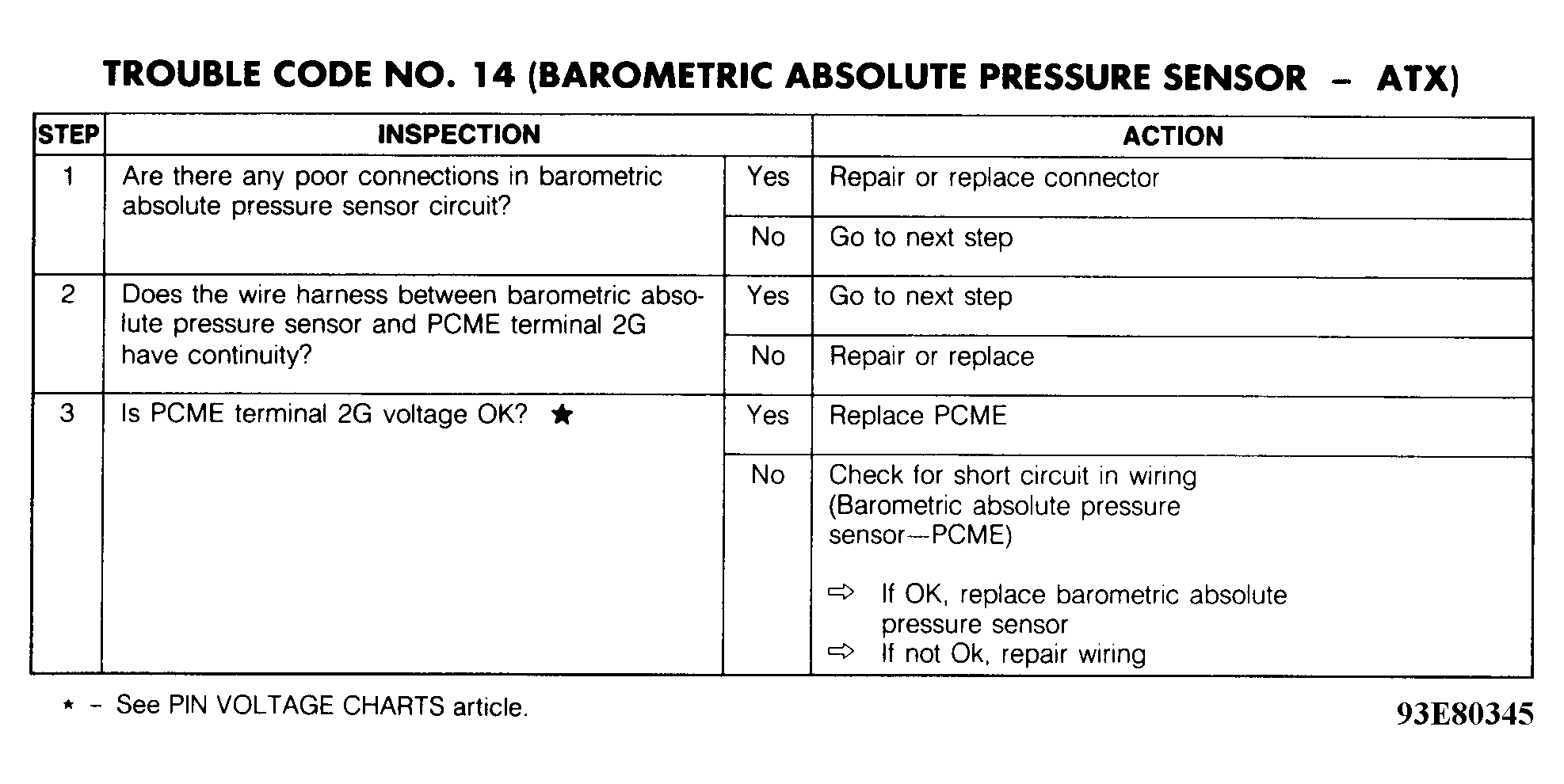

Fig 1: Trouble Code No. 14 - Diagnostic Flowchart
G93E80345Courtesy of MAZDA MOTORS CORP.

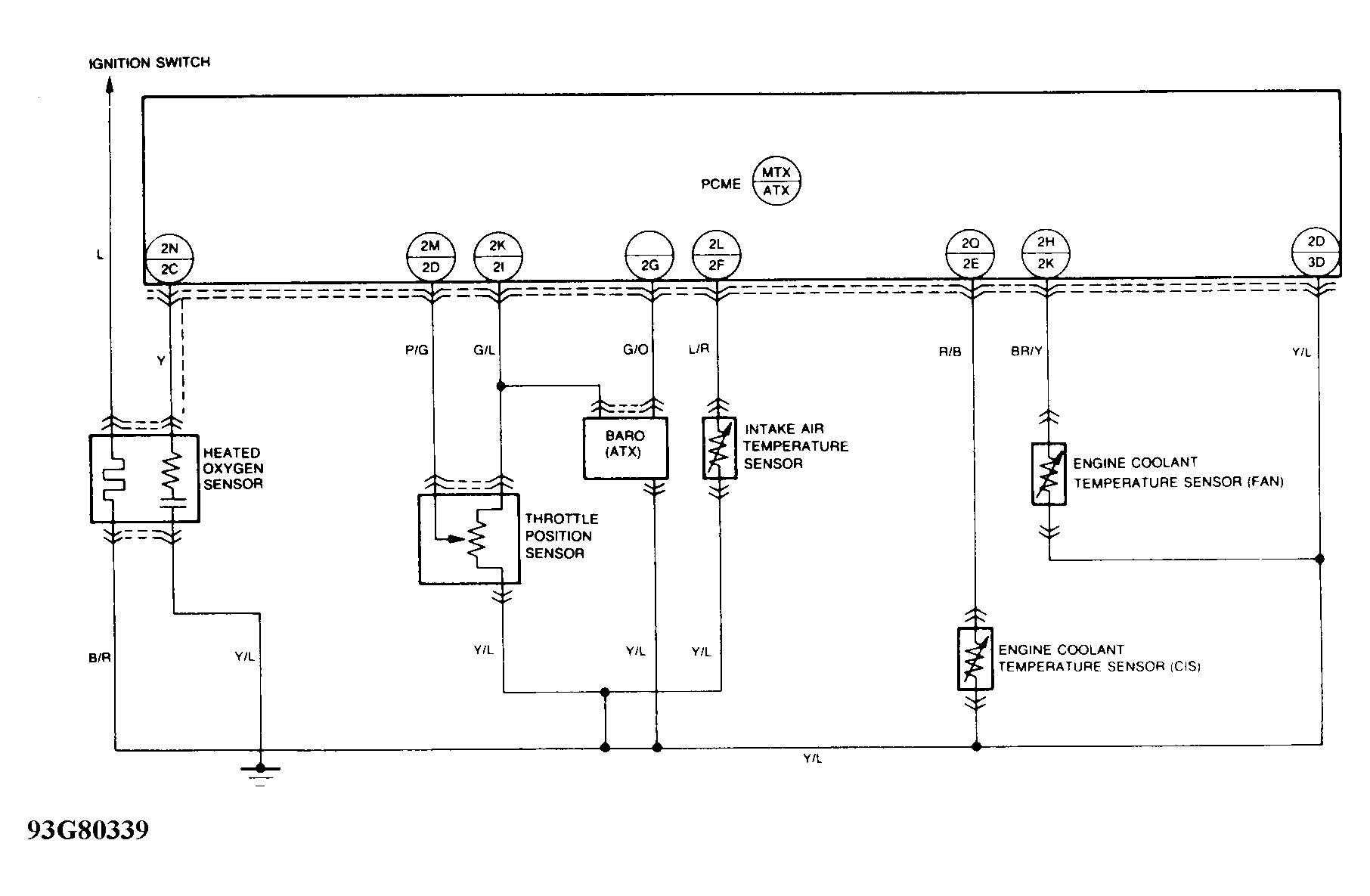

Fig 2: Trouble Code No. 14 - Schematic
G93G80339Courtesy of MAZDA MOTORS CORP.
