Engine Controls - Tests W/Codes - 2.0L
›
Trouble Code Identification
›
Code 15: (Heated Oxygen Sensor)
Code 15: (Heated Oxygen Sensor)

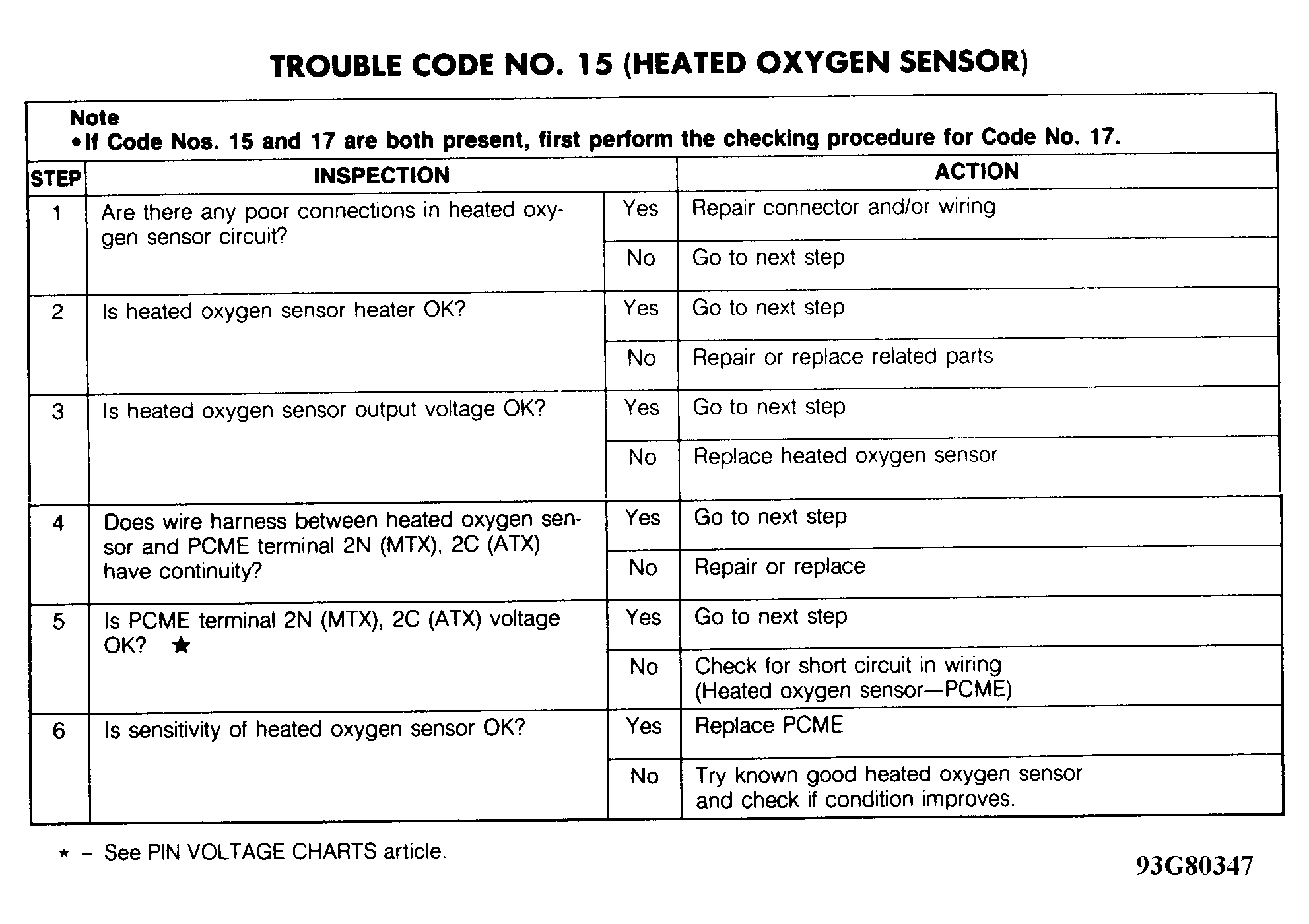

Fig 1: Trouble Code No. 15 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
