Code 16: (EGR Function Sensor - CALIFORNIA)

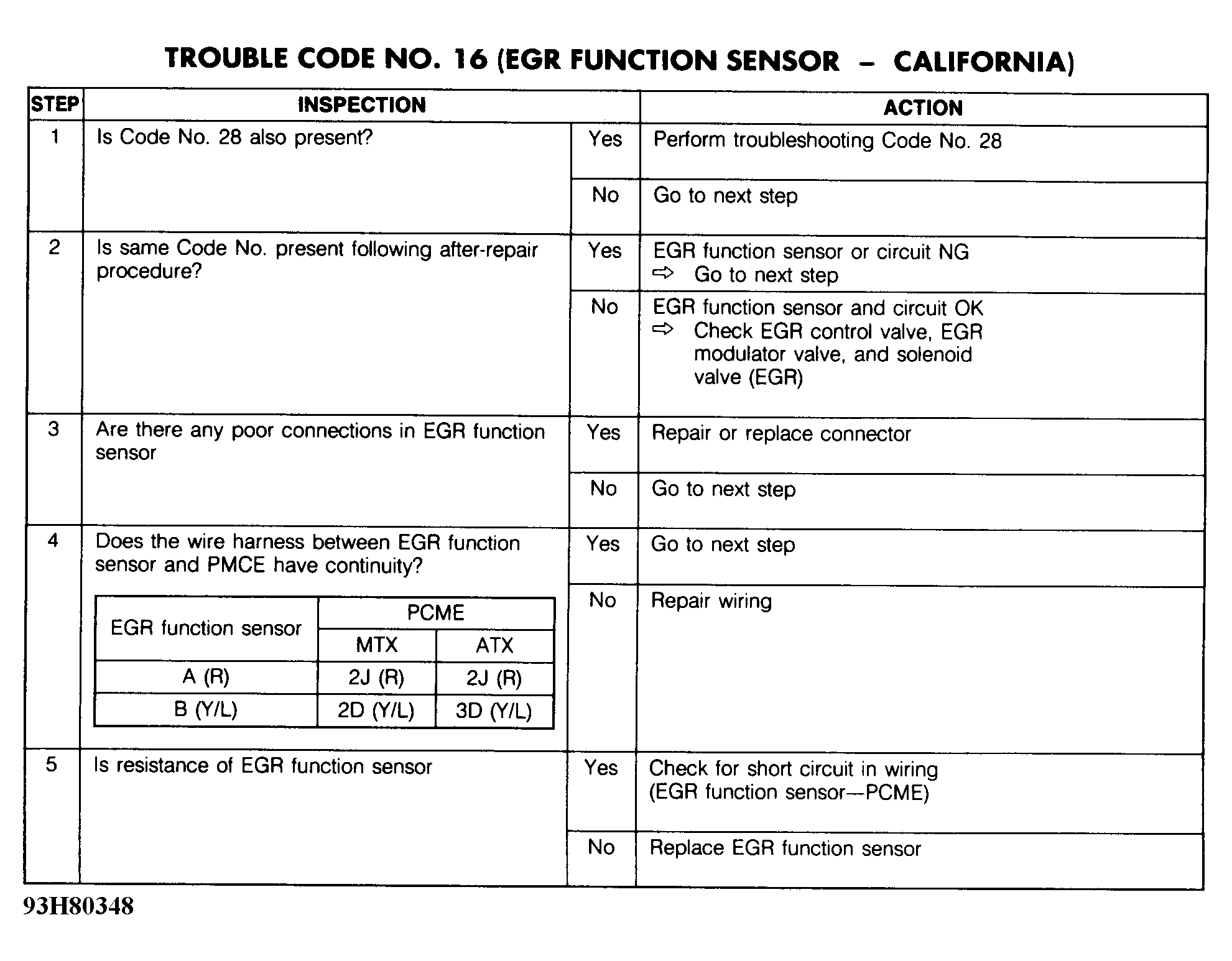

Fig 1: Trouble Code No. 16 - Diagnostic Flowchart

G93H80348

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 16 - Schematic

G93I80349

Courtesy of MAZDA MOTORS CORP.
