Code 17: (Closed Loop System)

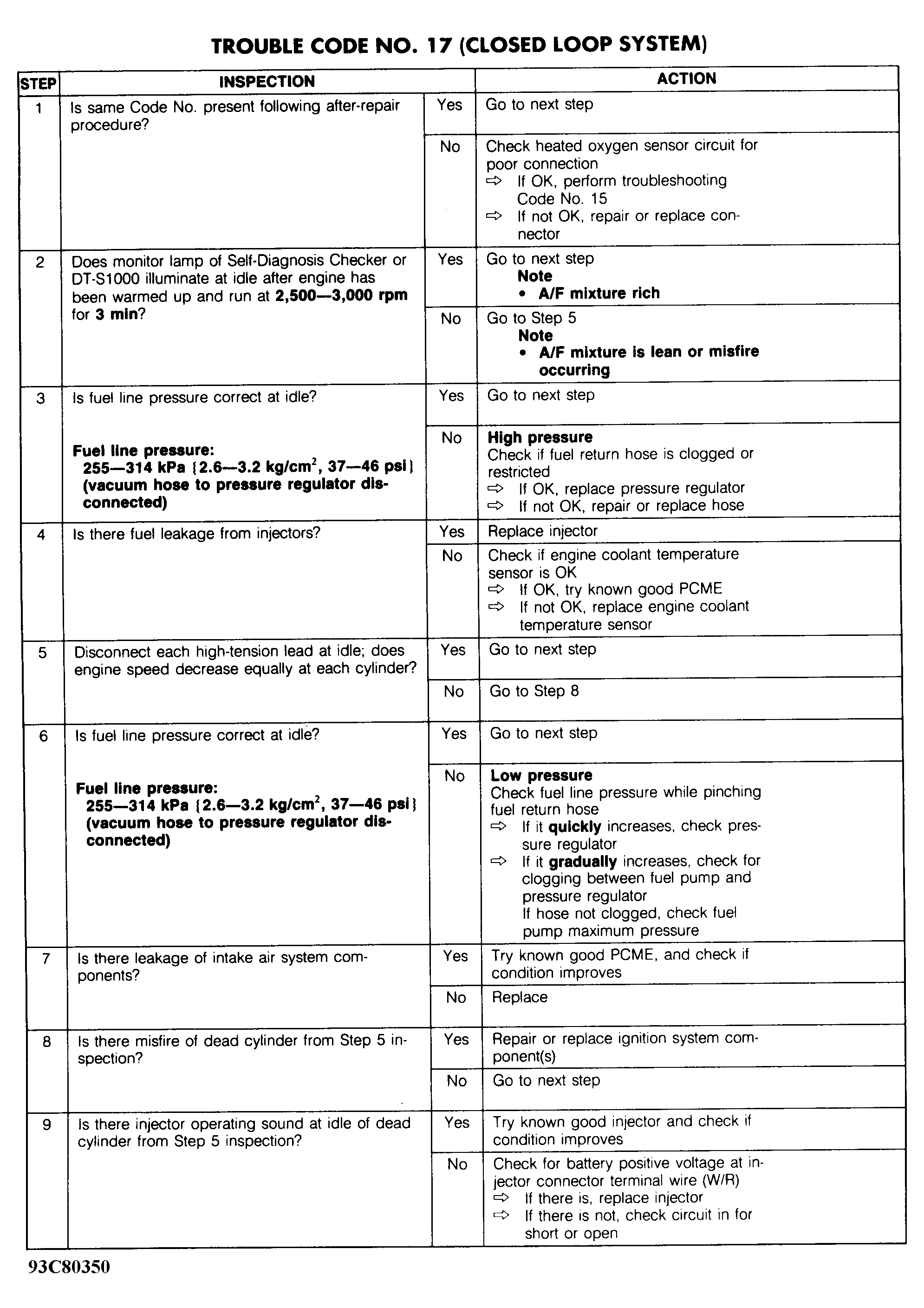

Fig 1: Trouble Code No. 17 - Diagnostic Flowchart

G93C80350

Courtesy of MAZDA MOTORS CORP.
