Code 3: (Crankshaft Position Sensor - G Signal)

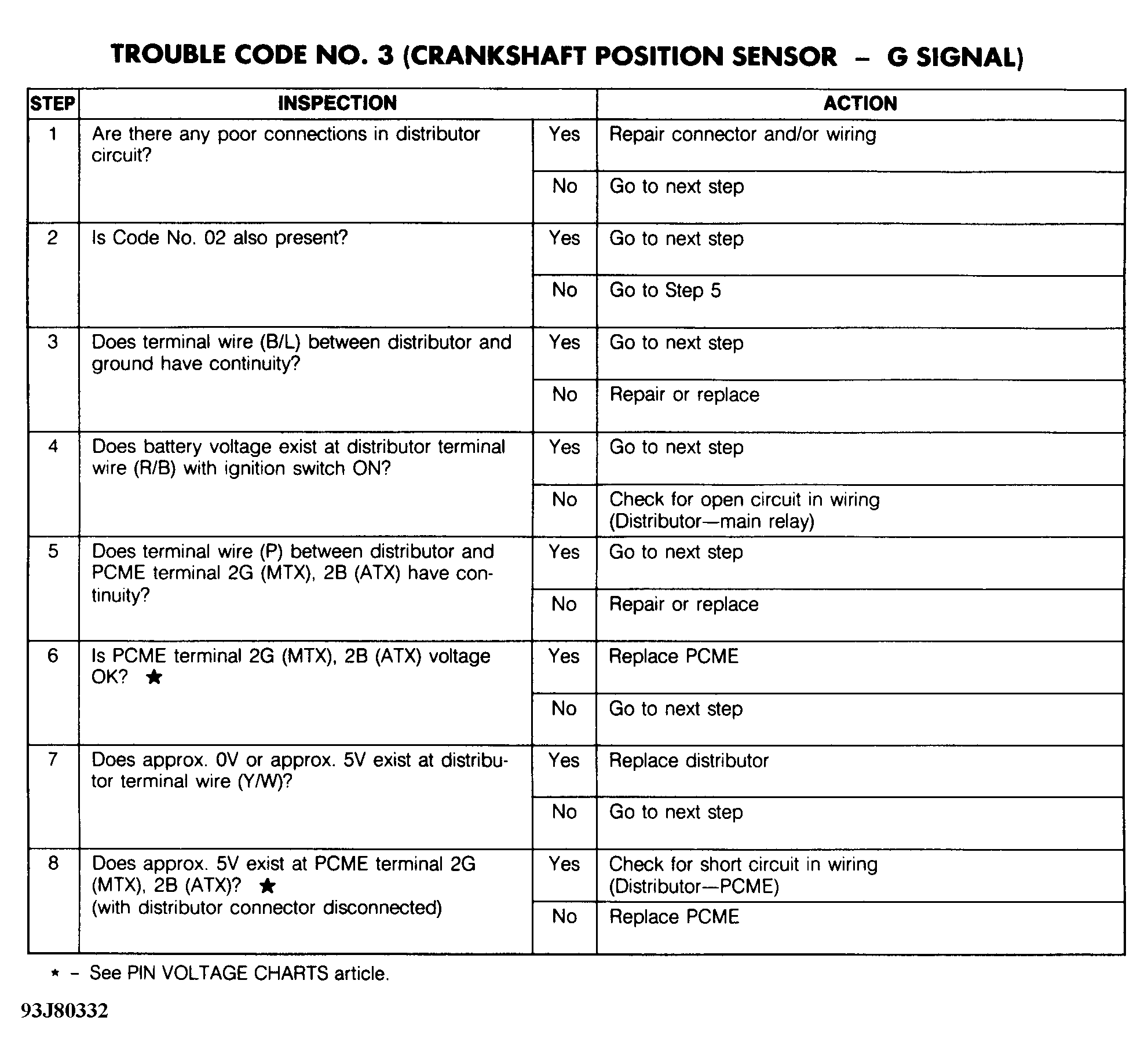

Fig 1: Trouble Code No. 3 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 3 - Schematic

Courtesy of MAZDA MOTORS CORP.
