Code 63: (Solenoid Valve Lock-Up Control - ATX)

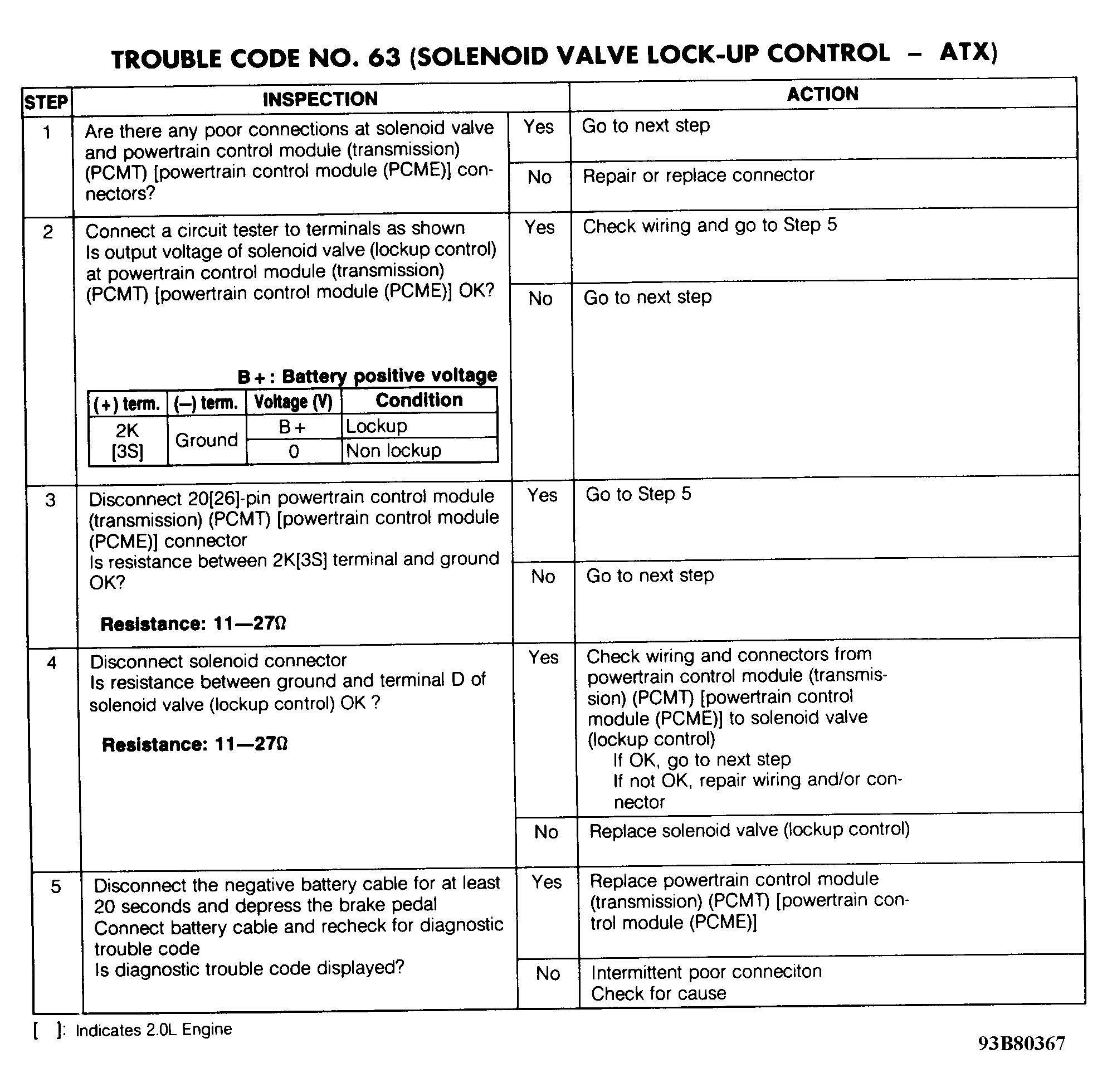

Fig 1: Trouble Code No. 63 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

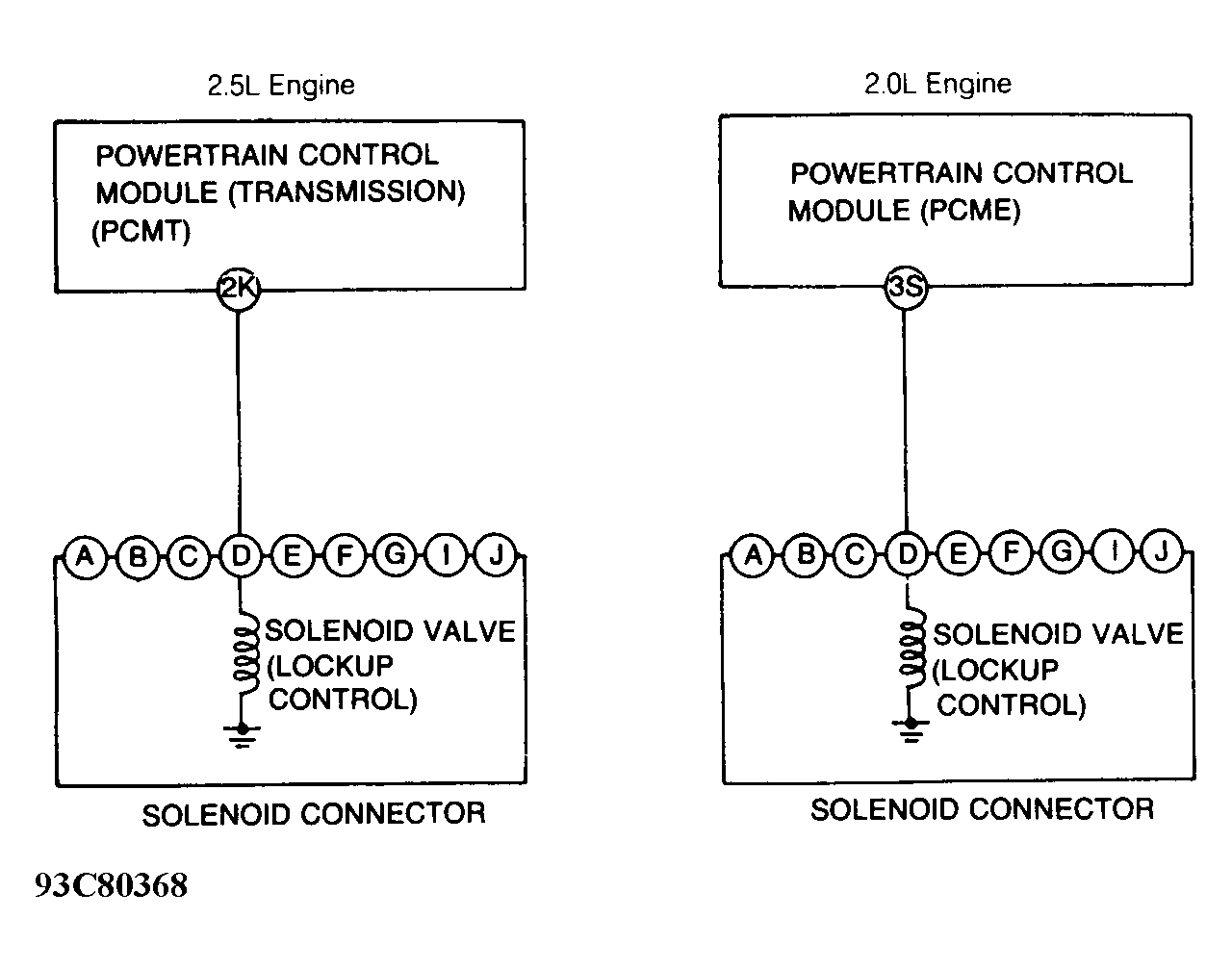

Fig 2: Trouble Code No. 63 - Schematic

Courtesy of MAZDA MOTORS CORP.
