Code 8: (Airflow Sensor)

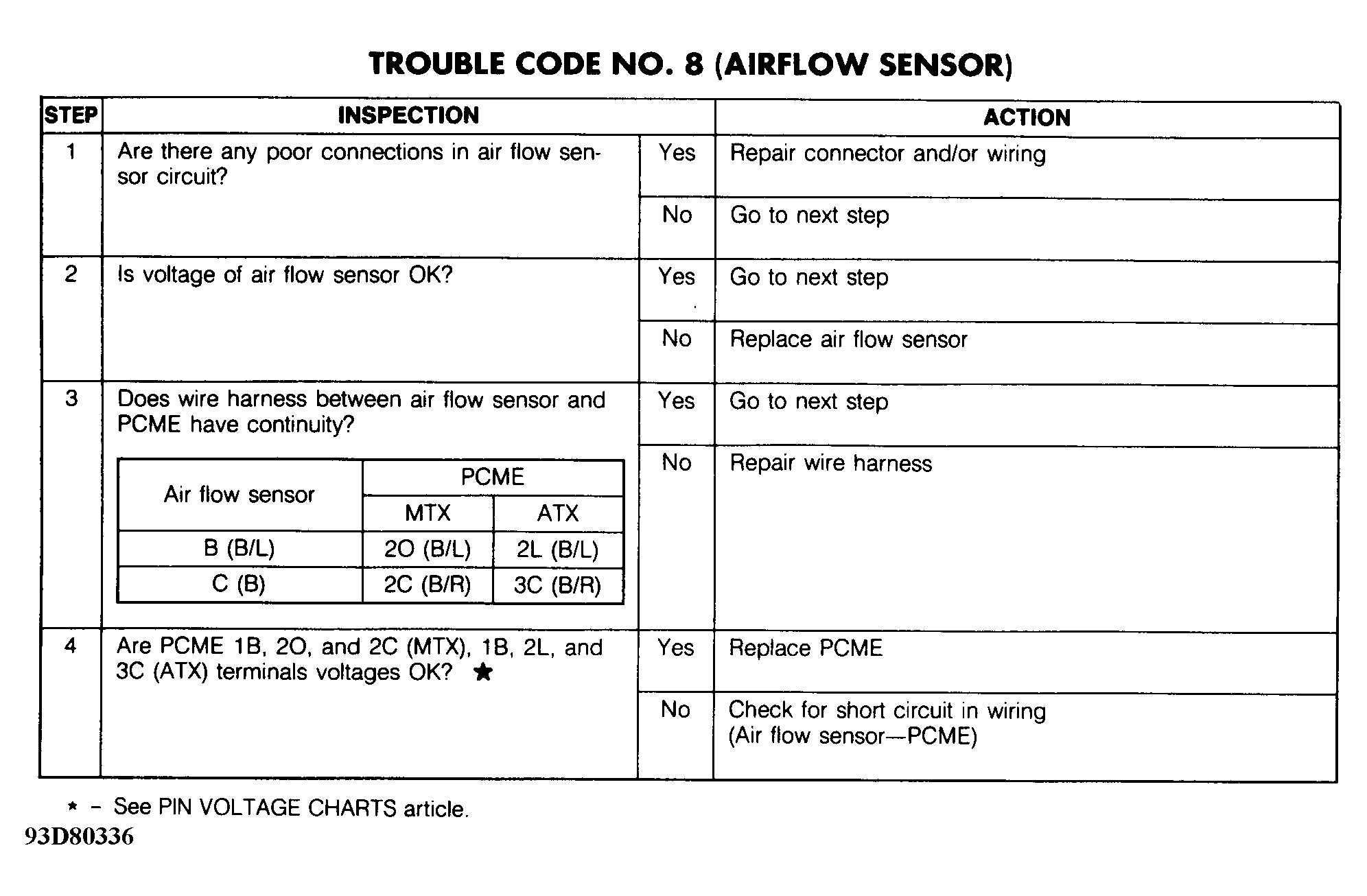

Fig 1: Trouble Code No. 8 - Diagnostic Flowchart
G93D80336Courtesy of MAZDA MOTORS CORP.

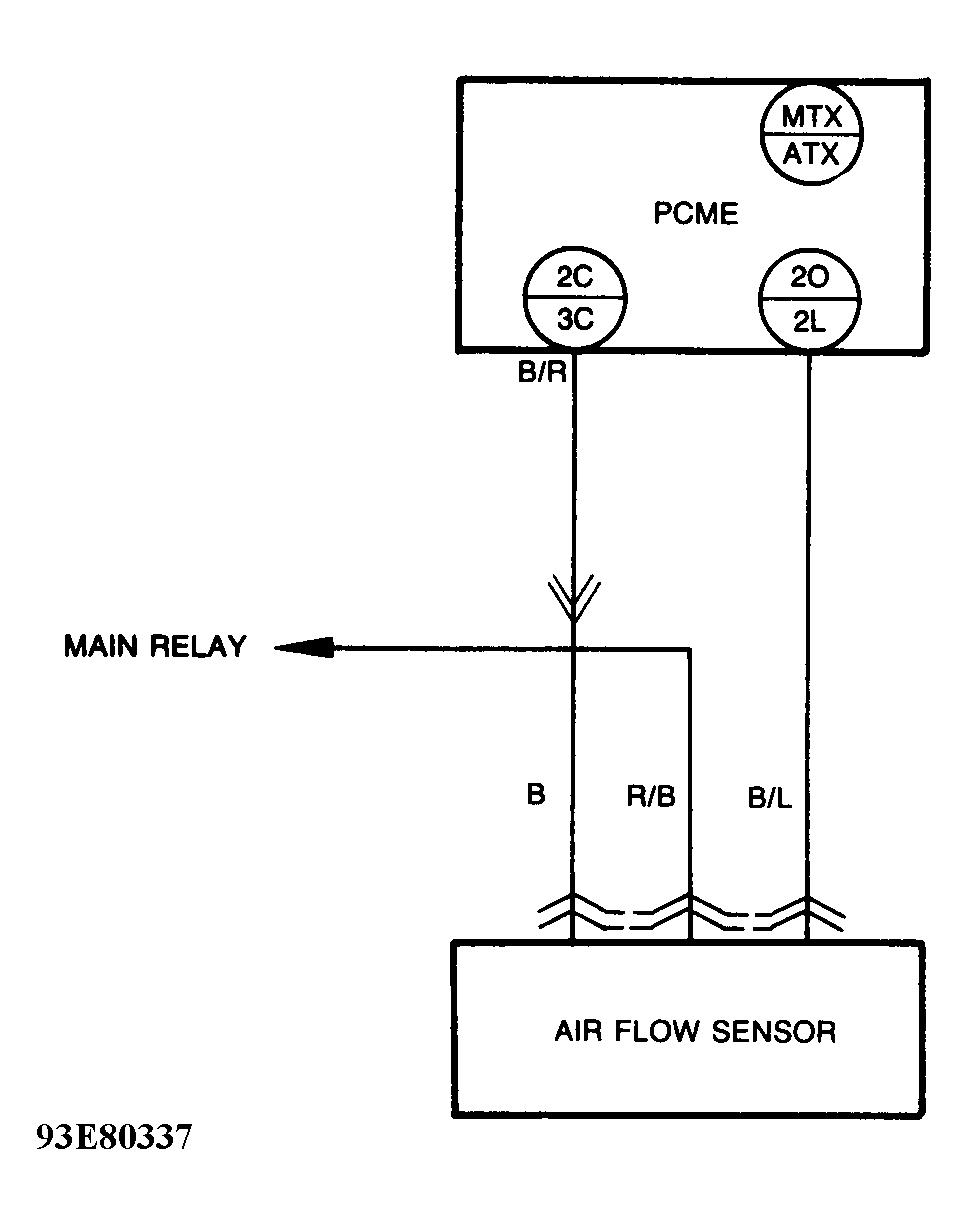

Fig 2: Trouble Code No. 8 - Schematic
G93E80337Courtesy of MAZDA MOTORS CORP.
