Code 9: (Engine Coolant Temperature Sensor - Cis)

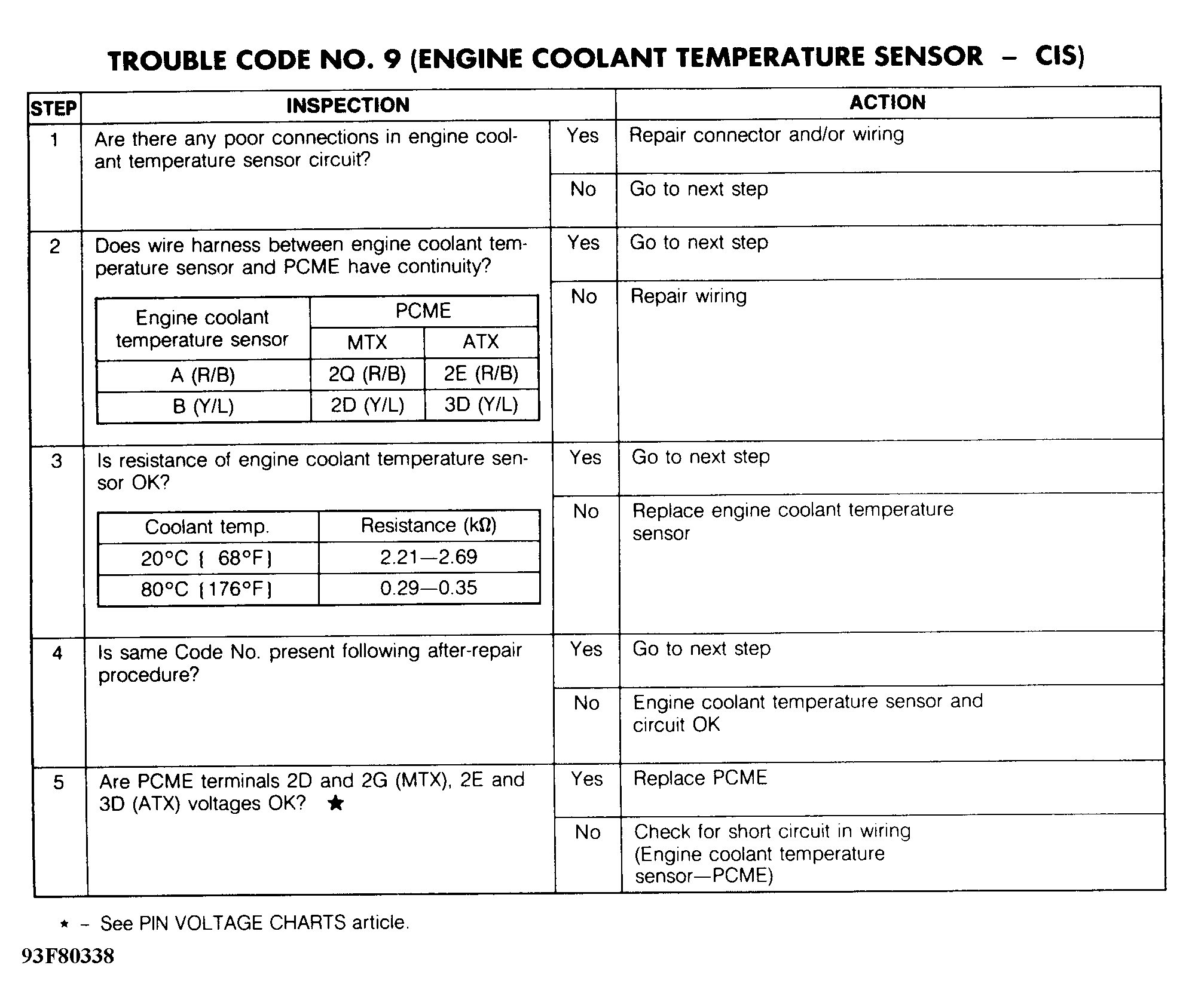

Fig 1: Trouble Code No. 9 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 9 - Schematic

Courtesy of MAZDA MOTORS CORP.
