Heater Unit Case Service Part Modification (CAT. U, NO. 003/95)

Publication date: 1995-02-28
Reference number: CAT. U, NO. 003/95

HEATER UNIT CASE SERVICE PART MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): CAT. U, NO. 003/95, Date of Issue: February 28, 1995

HEATER UNIT CASE SERVICE PART MODIFICATION

Model(s): 1993 Mazda 626 and MX-6

Category: U - Heater and Air Conditioner System

Bulletin No.: 003/95

Date: February 28, 1995

APPLICABLE MODELS/VINS

* 1993 MX-6 vehicles with a VIN of 1YVGE31A5P5100563 through

1YVGE3A0P5198531.

* 1993 626 vehicles with a VIN of 1YVGE22A1P5103842 through

1YVGE22A7P5198619.

DESCRIPTION

The heater unit case "C" (see Fig 1 ) was modified during 1993 model production. The modification eliminated a cutout from the case for cold air bypass to side vents.

Service parts for early 1993 model production vehicles are no longer available. When replacing a heater unit in vehicles within the affected VIN ranges the heater case must be modified. Follow the instructions in this bulletin to modify the heater unit case.

NOTE: The following modification procedure is included with all replacement heater unit cases.

MODIFICATION PROCEDURE

Confirm that the old heater unit case "C" has the cutout area (See Fig. 1).

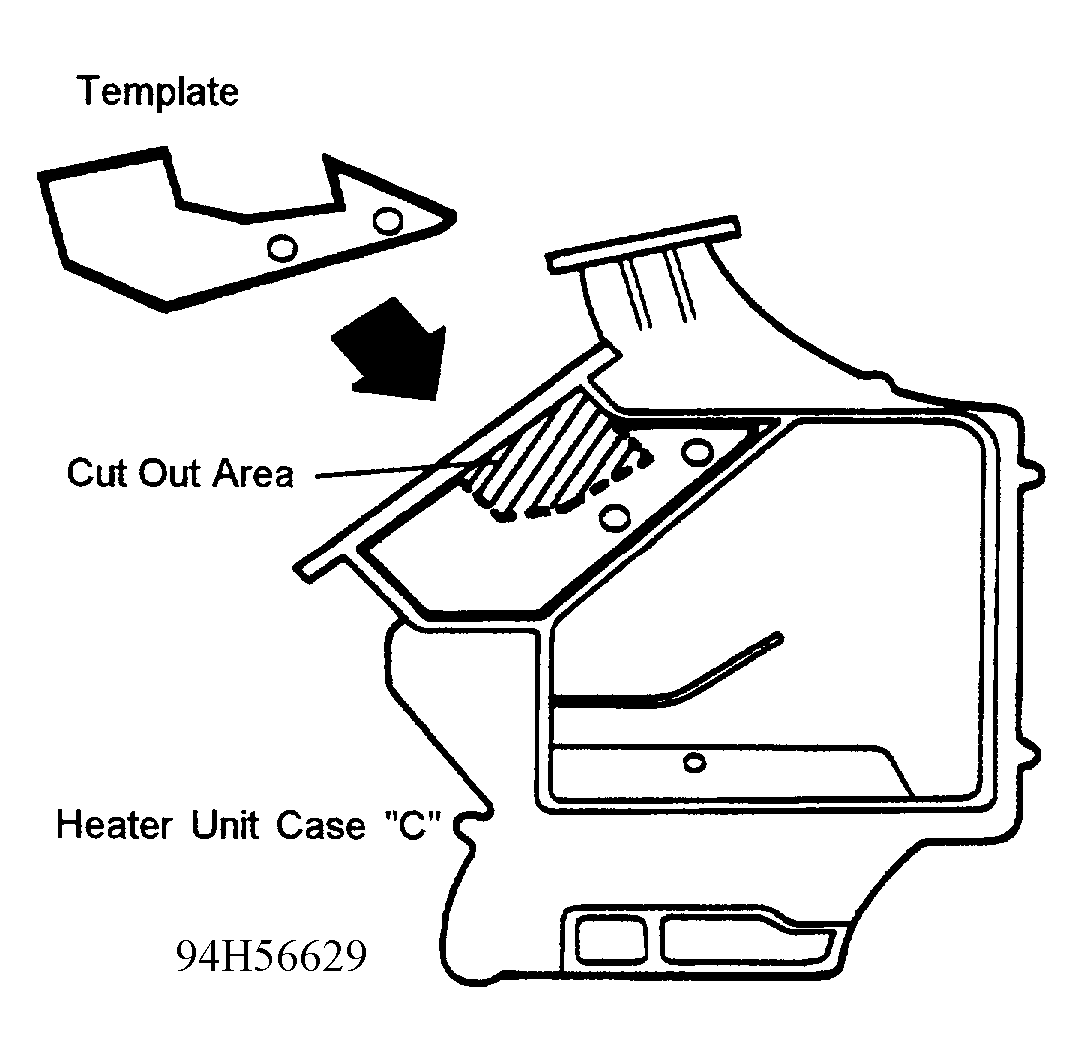

Fig 1: Heater Unit With Cutout Area
Make a copy of the template (supplied with the replacement part and shown in Fig 2 ) and use the copy as a guide for the cutout.

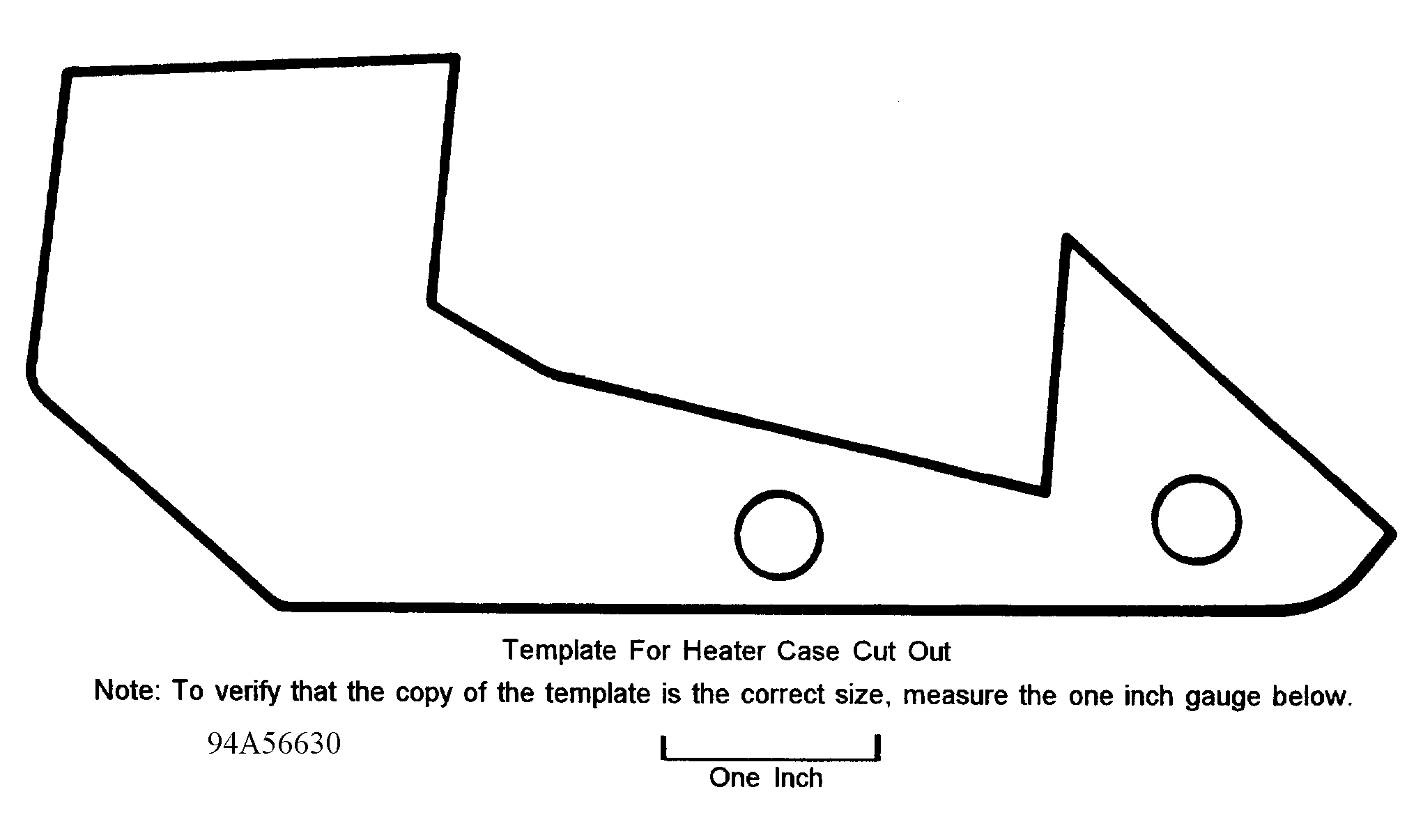

Fig 2: Template for Heater Case Cutout
Place the copy on the heater case "C" as shown in Fig 1 .
Mark the area to be cut.
Use a suitable tool to remove the area marked on case "C" (See Fig. 1).

NOTE: If the unit is assembled, use care not to damage the dampener doors with the cutting tool.

PARTS INFORMATION

Part Number New	Part Number Old	Description
GA2A 61 130B	Same as New	Heater Unit
GB6H 61 A03	GA2A 61 A03	Case "C", Heater Unit
GB6H 61 A04	GA2A 61 A04	Case "D", Heater Unit

WARRANTY INFORMATION

(Applies To Vehicles Covered Under Normal Warranty)

Warranty Type: A

Symptom Code: 59

Damage Code: 9M

Part Number Main Cause: GA2A 61 130B

Quantity: 1

Operation Number: YY0188RX

Labor Hours: 0.4 Hrs.
