Code 8: (Airflow Sensor)

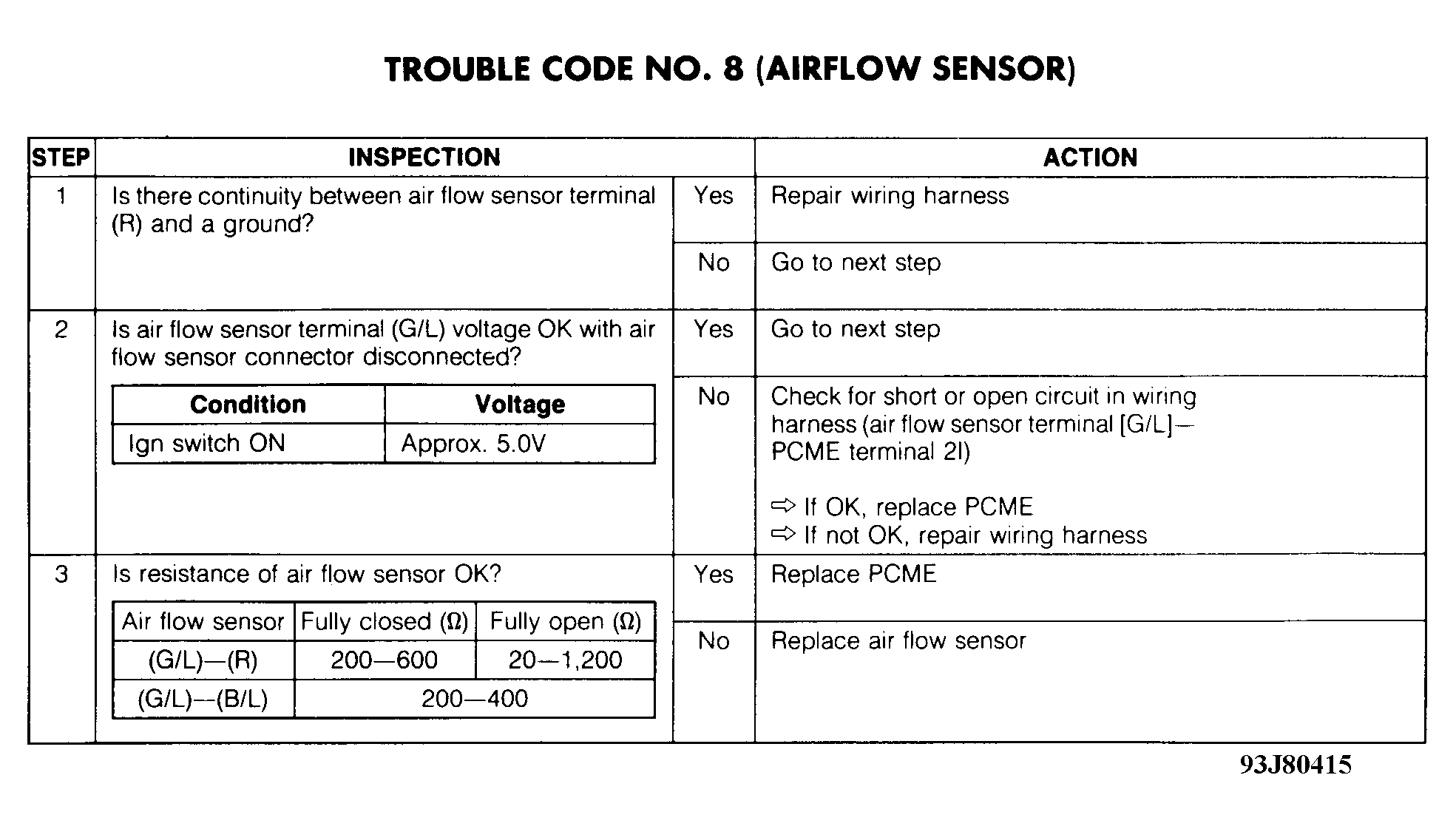

Fig 1: Trouble Code No. 8 - Diagnostic Flowchart
G93J80415Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 8 - Schematic
G93A80416Courtesy of MAZDA MOTORS CORP.
