No-Load Test

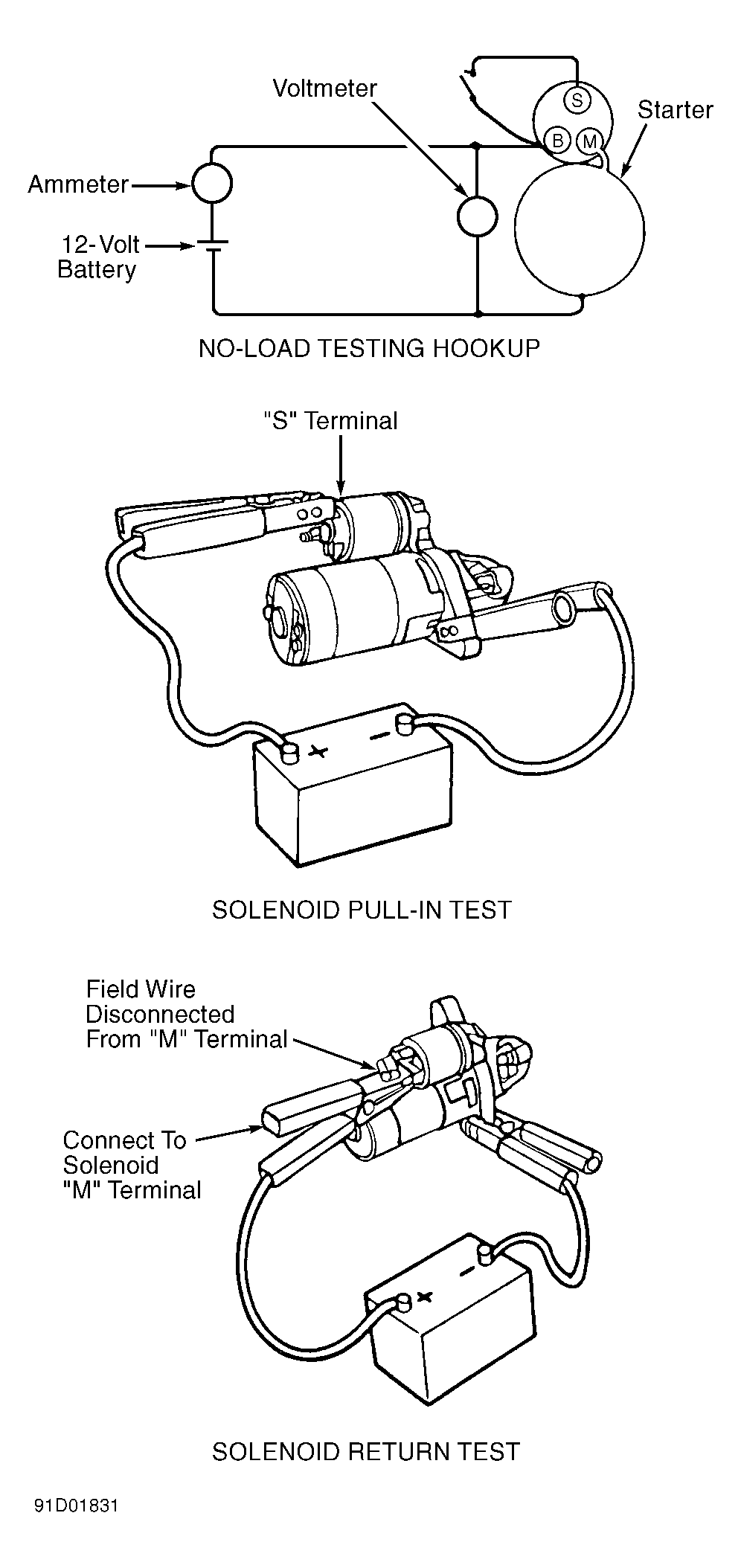

Connect fully-charged 12-volt battery, voltmeter and ammeter to starter. See Fig 1. Using remote starter wires or jumper, engage solenoid. Starter should spin smoothly. Compare readings with specifications. See NO-LOAD TEST SPECIFICATIONS table. If voltage is less than specified or amperage is more than specified, disassemble and inspect starter components.
NO-LOAD TEST SPECIFICATIONS
| Application | Minimum Voltage | Maximum Amperage | ||
|---|---|---|---|---|
| B2200 M/T, Miata & MX-3 4-Cyl. | 11.5 | 60 | ||
| Protege & 323 | (1) | (1) | ||
| RX7 | 11.0 | 90 | ||
|
||||
