Code 11: (Intake Air THERMOSENSOR)

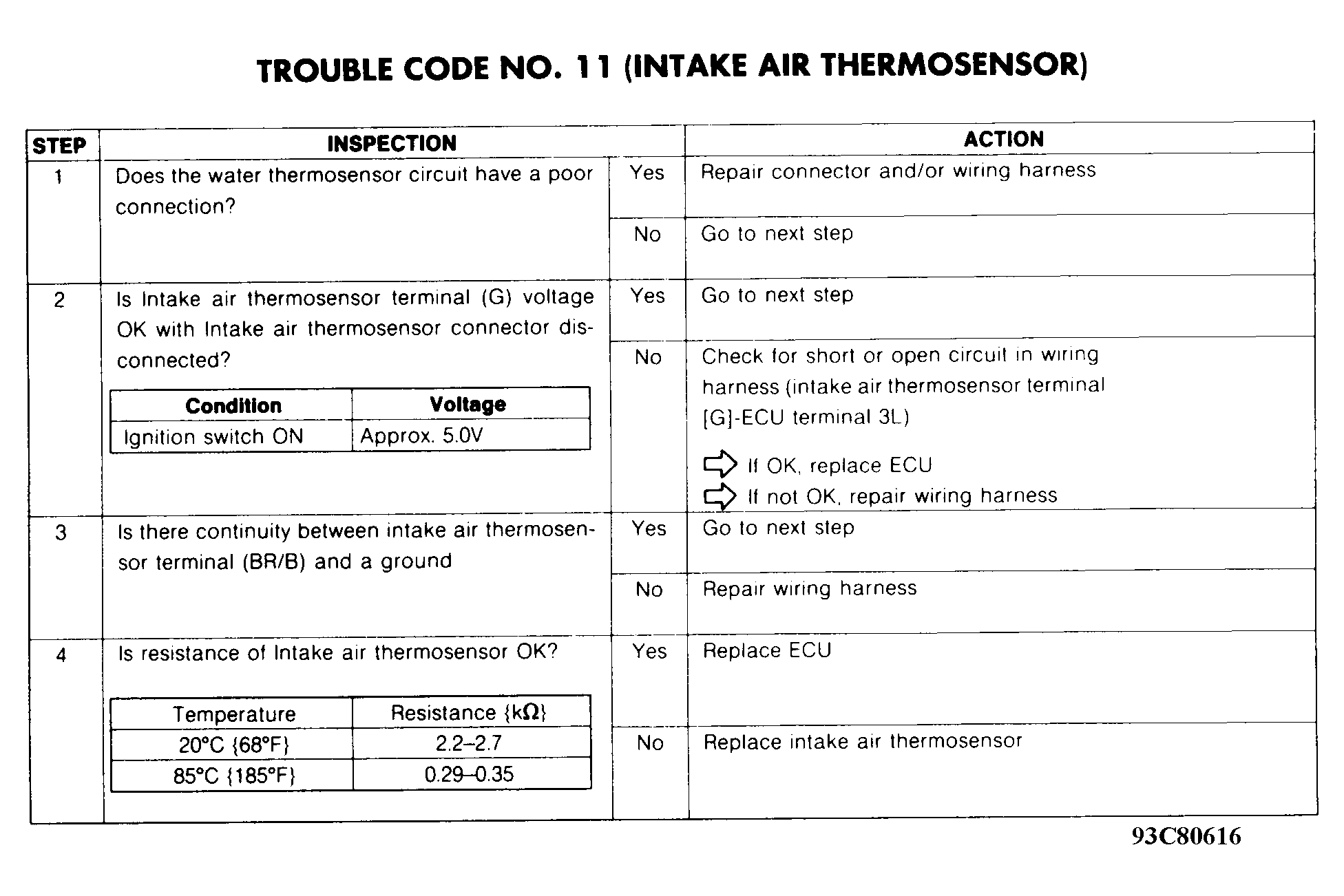

Fig 1: Trouble Code No. 11 - Diagnostic Flowchart

G93C80616

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 11 - Schematic

G93D80617

Courtesy of MAZDA MOTORS CORP.
