Code 16: (EGR Switch - Ca)

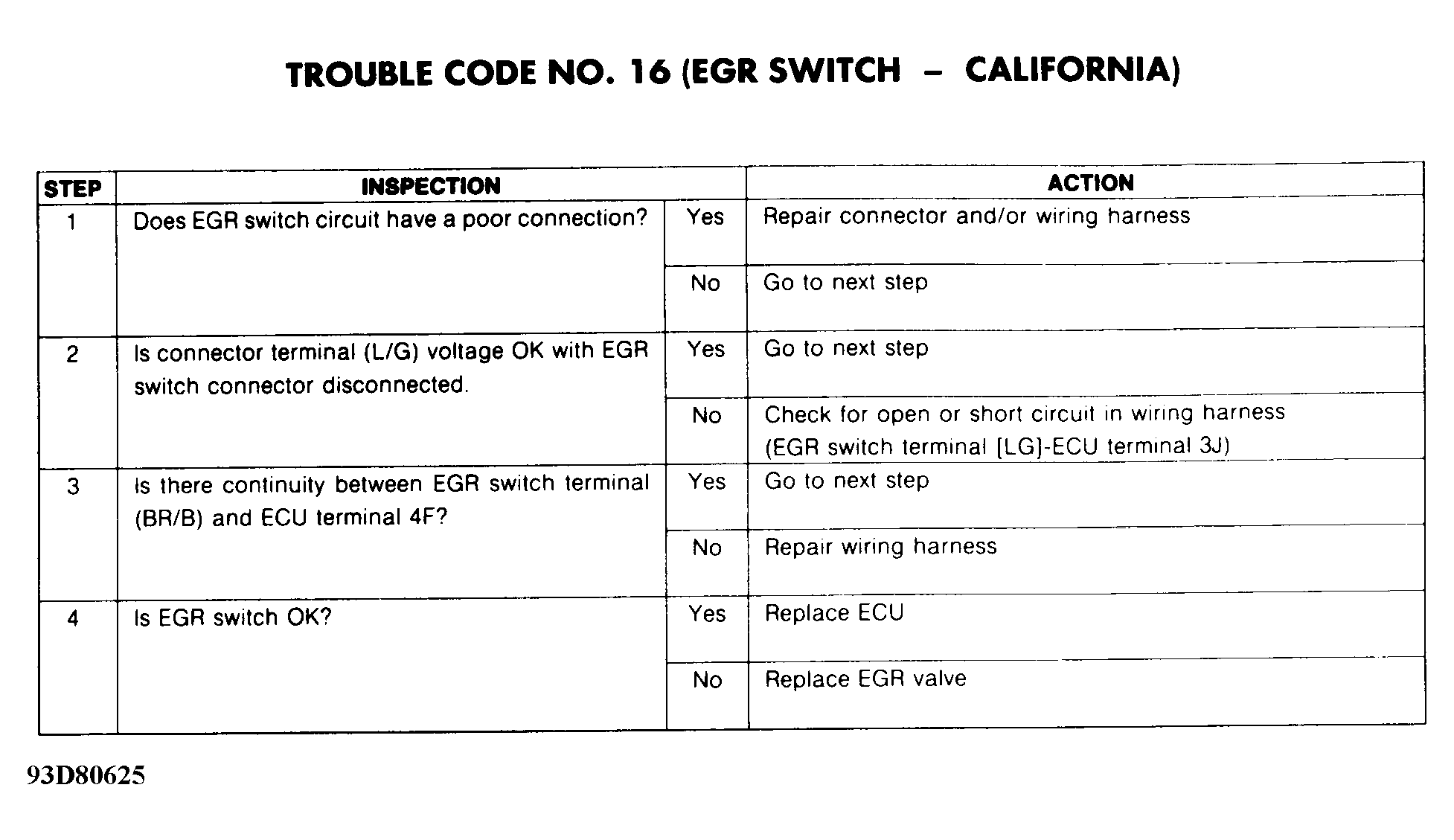

Fig 1: Trouble Code No. 16 - Diagnostic Flowchart
G93D80625Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 16 - Schematic
G93E80626Courtesy of MAZDA MOTORS CORP.
