Code 26: (Metering Oil Pump Stepper Motor)

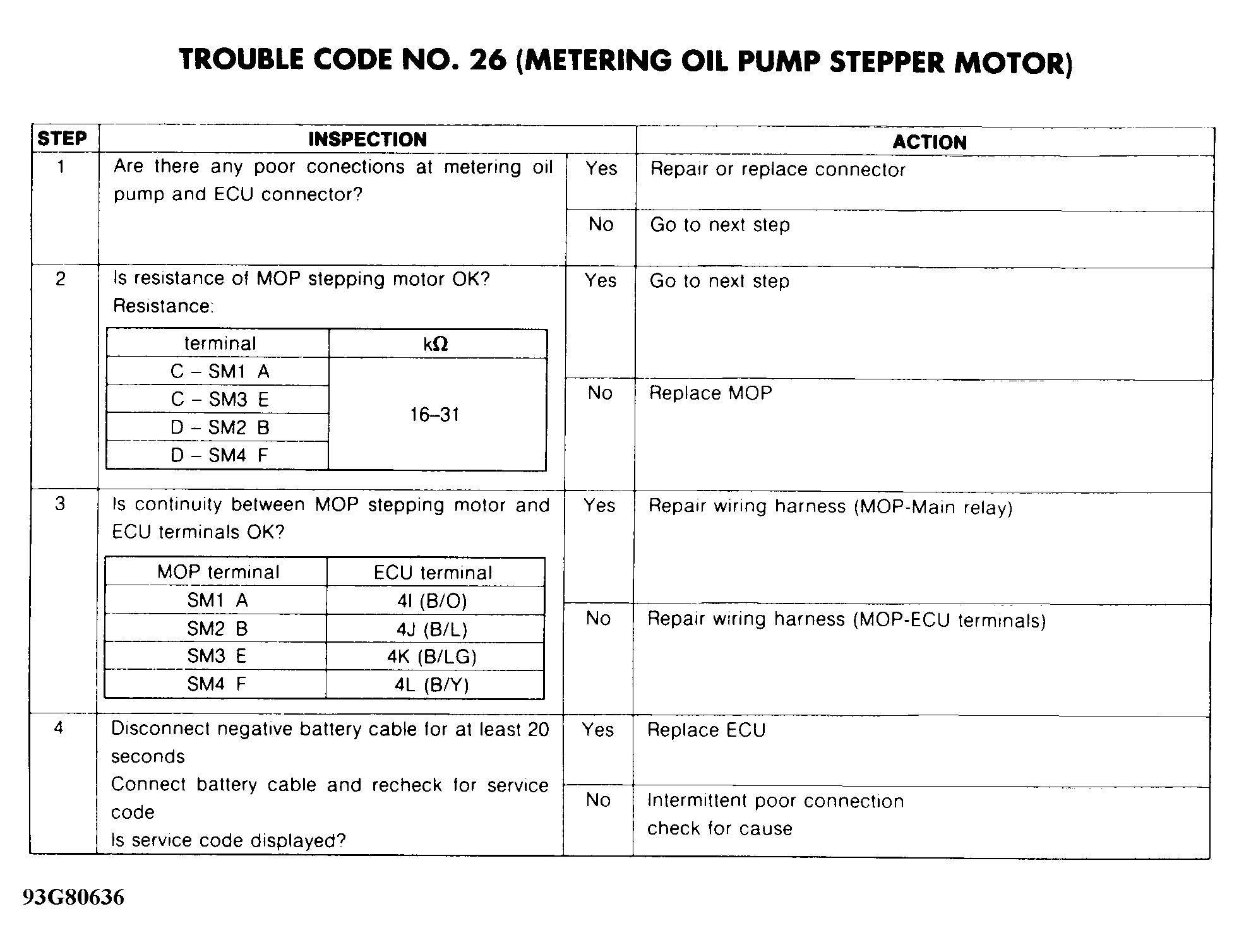

Fig 1: Trouble Code No. 26 - Diagnostic Flowchart

G93G80636

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 26 - Schematic

G93B80631

Courtesy of MAZDA MOTORS CORP.
