Code 30: (Solenoid Valve - Split Air By-Pass)

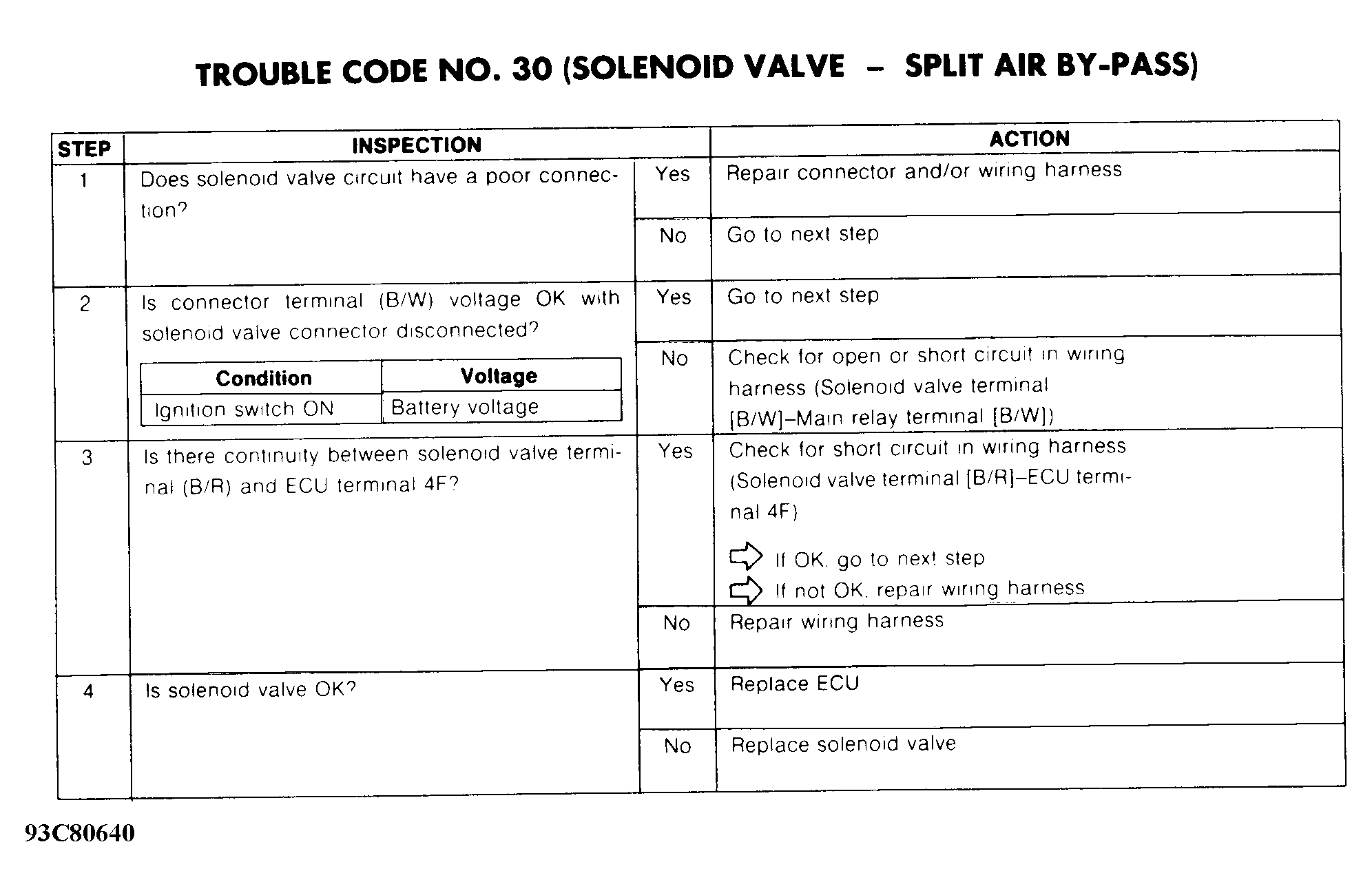

Fig 1: Trouble Code No. 30 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

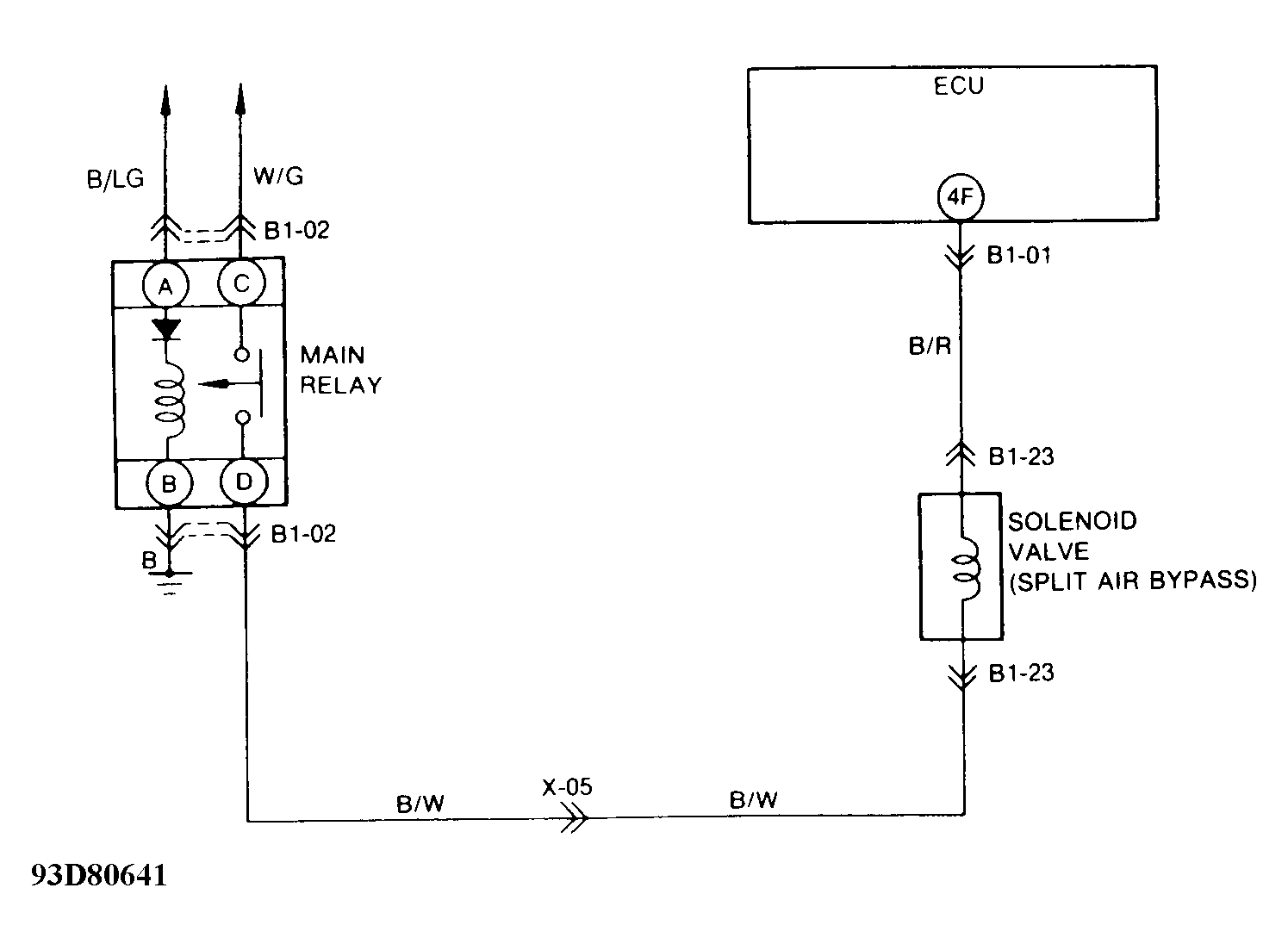

Fig 2: Trouble Code No. 30 - Schematic

Courtesy of MAZDA MOTORS CORP.
