Code 43: (Solenoid Valve - WASTEGATE Control)

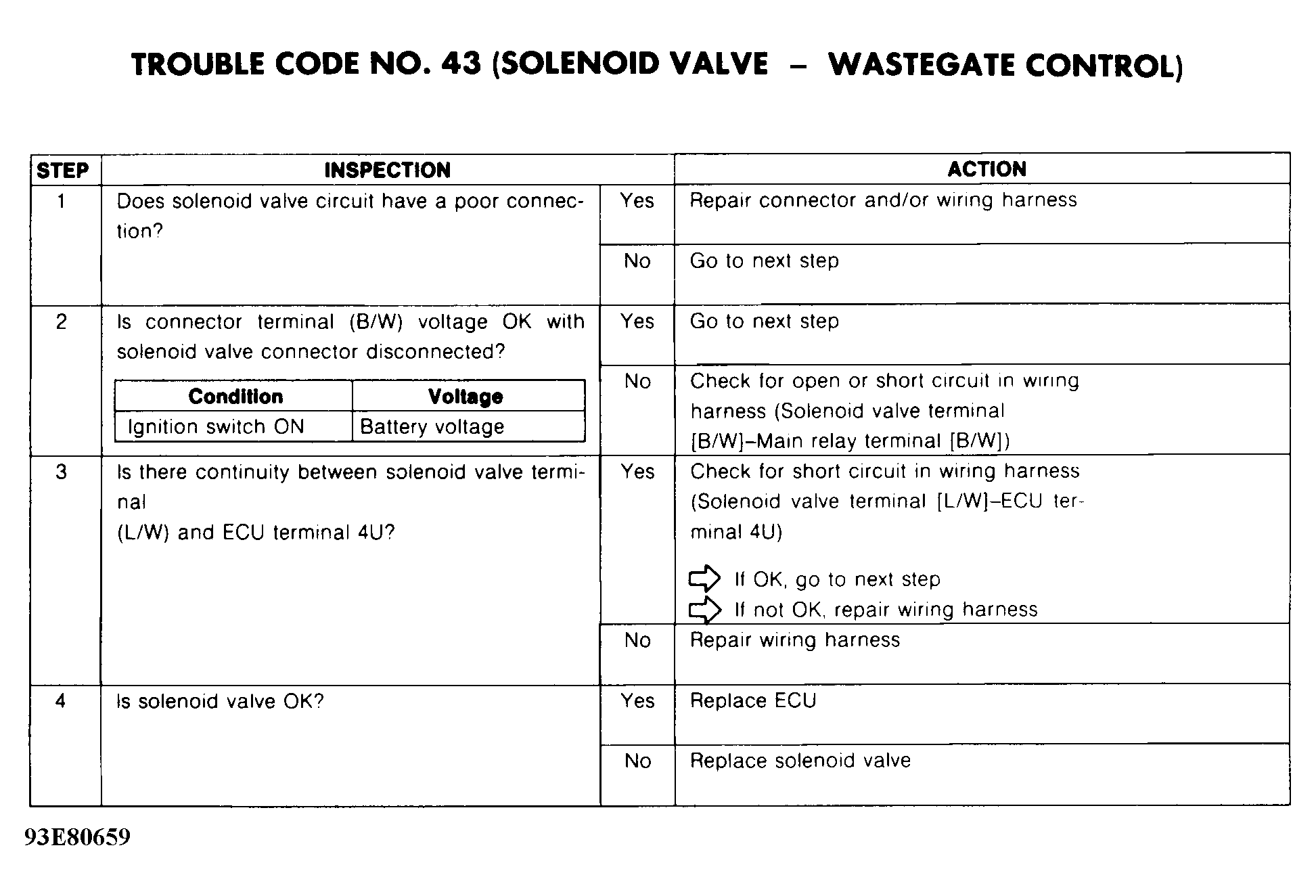

Fig 1: Trouble Code No. 43 - Diagnostic Flowchart

Courtesy of MAZDA MOTORS CORP.

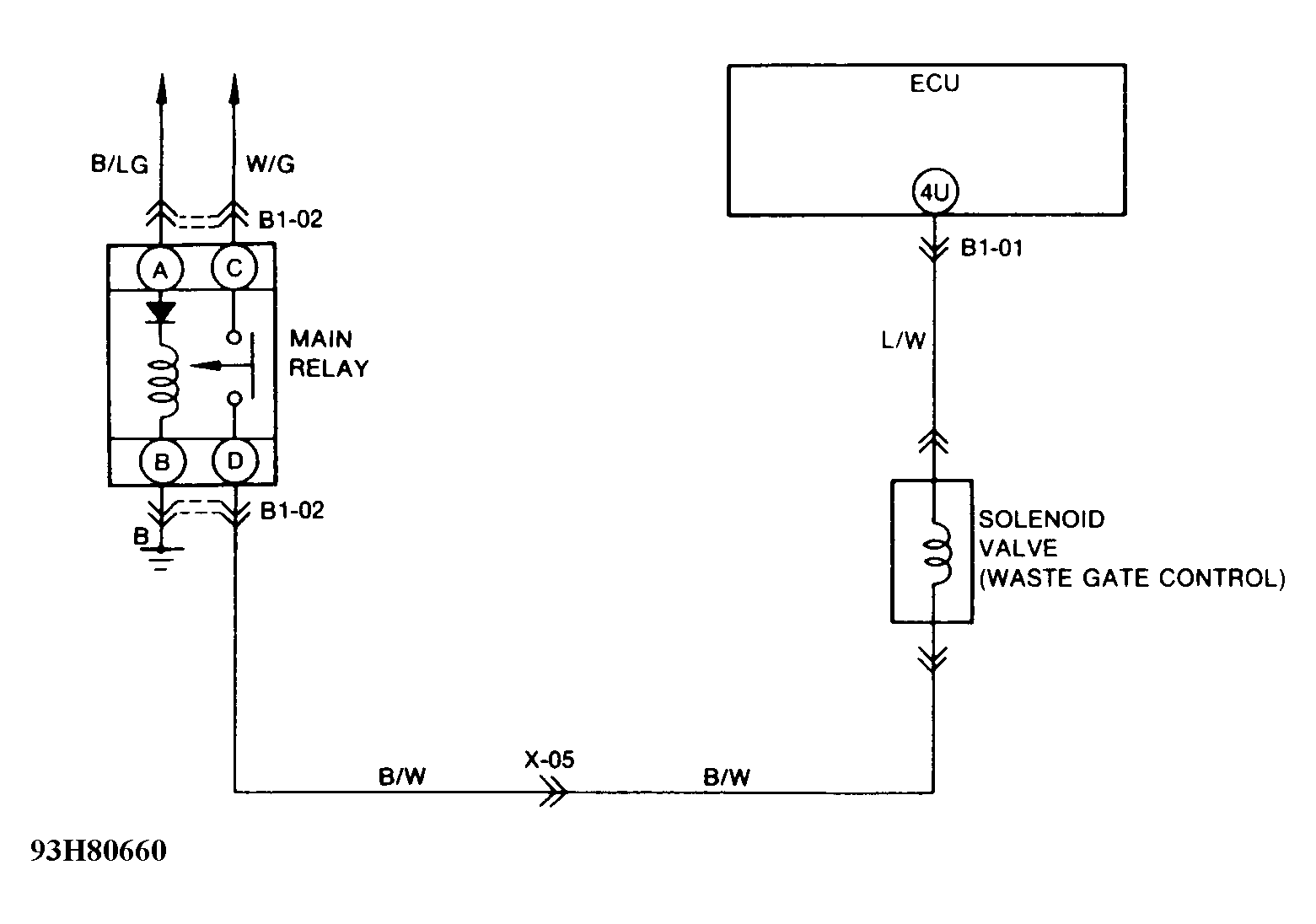

Fig 2: Trouble Code No. 43 - Schematic

Courtesy of MAZDA MOTORS CORP.
